This Stretch Film Four-axis Slitting Machine adopts four-axis rolls changing, with automatic loading the film, automatic change the rolls, and automatic cutting the film. Equipped with the automatic tube row and intelligent membrane tube sepration, save much time to load the paper tubes and greatly improves the production efficiency.
(1) Real speed is 600m/min in stable running.
(2) Support sub-rolls size as 1 inch(25mm) and 1.5 inches(38mm) and other size customized.
(3) Slitting thickness: 0.012-0.05mm
(4) Width of master roll no more than 0.5 merters.
| Quantity: | |
|---|---|
JX-500-4MAS

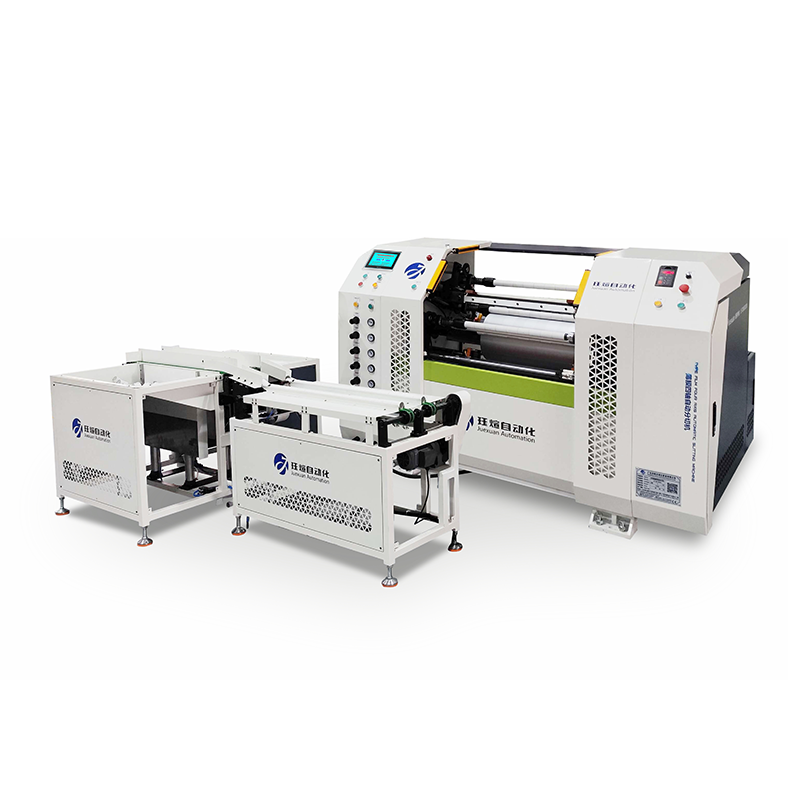

The JX-500-4MAS 0.5 Meter Automatic Stretch Film Four-axis Slitting Machine is a high-precision solution for film slitting, designed for industries like agriculture (vegetable binding), packaging, and electronics (protective film). It integrates four-axis roll changing, automatic film loading, and intelligent film tube separation to minimize manual work and boost slitting efficiency. With a focus on precision and versatility, it handles thin to medium-thickness films, making it ideal for businesses needing consistent, high-quality sub-rolls.
| Model Number | JX-500-4MAS |
| Width of the film | 20-500mm |
| Sub-roll Core | 25/38mm |
| Sub-roll Diameter (max) | 100mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 2.2 KW |
| Mother roll diameter (max) | 500mm |
| Width of the mother roll (max) | 500mm |
| Daily Output | 1500KG(12h) |
| Overall Size(L*W*H)(CM) | 1870×1400×1230 |
| Weigh | 1000 Kg |
While its mechanical design line speed is 1000m/min, it runs stably at a real speed of 600m/min—ensuring clean cuts without film breakage. This balance of speed and stability reduces production cycles by 40% vs. standard slitting machines.
It features automatic pipe arranging and film tube separation, which cuts paper tube loading time by 50%. The system automatically sorts and loads tubes, eliminating manual handling and reducing labor costs.
It supports a film width range of 20-500mm (matching the 0.5-meter design) and a slitting thickness of 0.012-0.05mm, making it suitable for PE short film, vegetable binding film, and protective film.
The Stretch film Slitting machine accommodates a maximum mother roll diameter of 500mm and mother roll width of 500mm. For sub-rolls, it uses sub-roll cores of 25/38mm (1 inch/1.5 inches) with a maximum sub-roll diameter of 100mm, and achieves a daily output of 1500KG (12-hour shift). Its compact size (1870×1400×1230mm, 1000 Kg weight) fits small to medium workshops, saving valuable space.

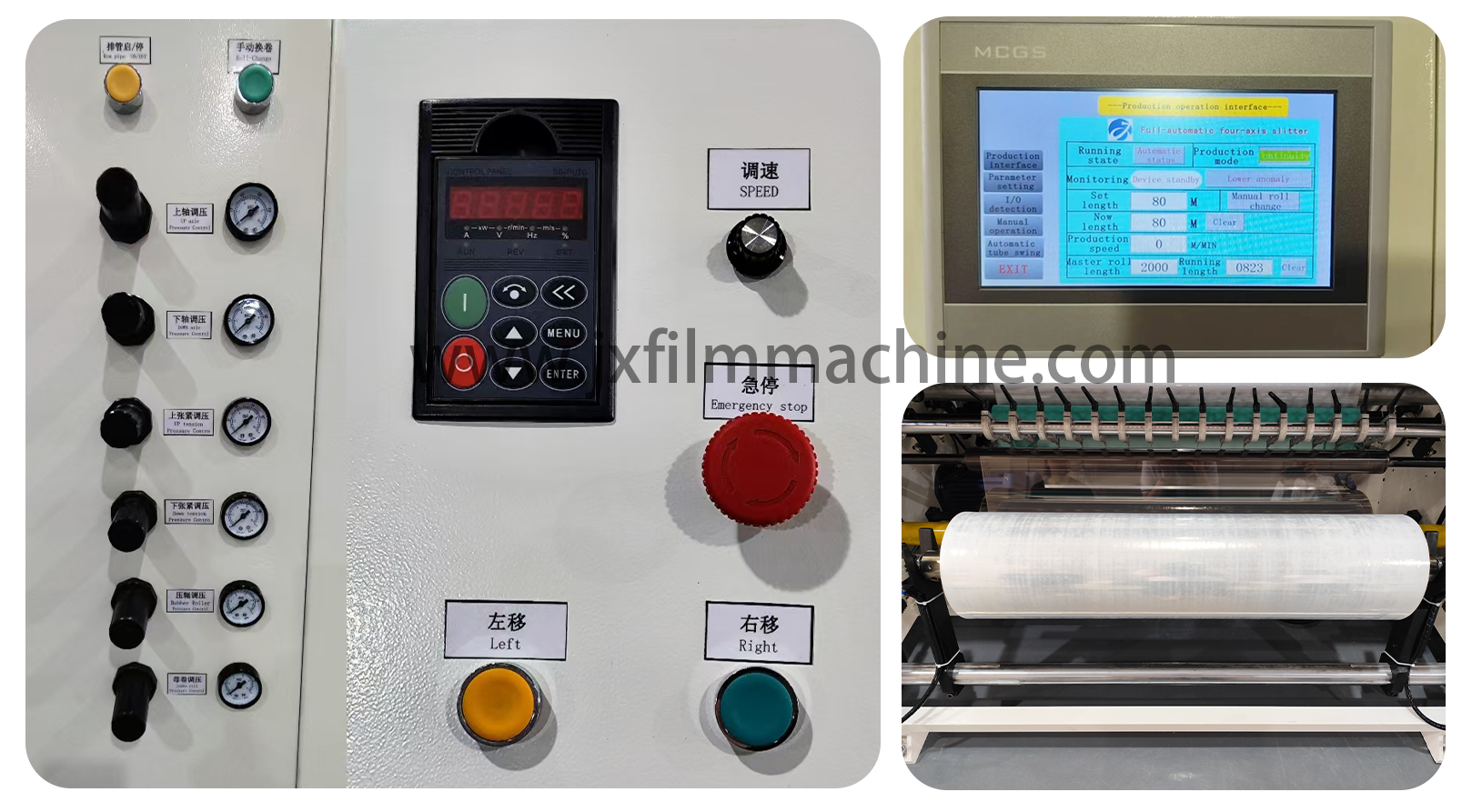

Equipped with an MCGS production operation interface, operators can monitor speed, output, and error alerts in real time. It supports automatic/manual mode switching—automatic mode handles full slitting cycles, while manual mode is for small-batch adjustments. Functions like upper/lower roller pressure adjustment and film tension control are intuitive, requiring only 1-2 hours of training for new users.
Precision Slitting: The 2.2 KW motor/frequency conversion system ensures uniform tension, resulting in straight, clean cuts with minimal edge waste (waste rate <0.5%).
Labor Savings: Full automation (from loading to cutting) reduces the need for operators—one person can manage 2-3 machines simultaneously.
Customization Flexibility: It supports sub-roll core customization (beyond 25/38mm) and film type adjustments, fitting unique business needs (e.g., narrow-width vegetable binding film).
Durable Build: Cutting blades are made of high-speed steel for long service life (up to 500 hours of continuous use), and rollers are coated with wear-resistant materials to prevent film scratches.
Energy Efficiency: The frequency conversion motor reduces power consumption by 15% compared to traditional motors, lowering long-term operational costs.
After-Sales Guarantee: A 12-month warranty covers core components (e.g., motor, control panel), and our team provides free on-site maintenance once a year.
