JX-1000/1300/1600-NP

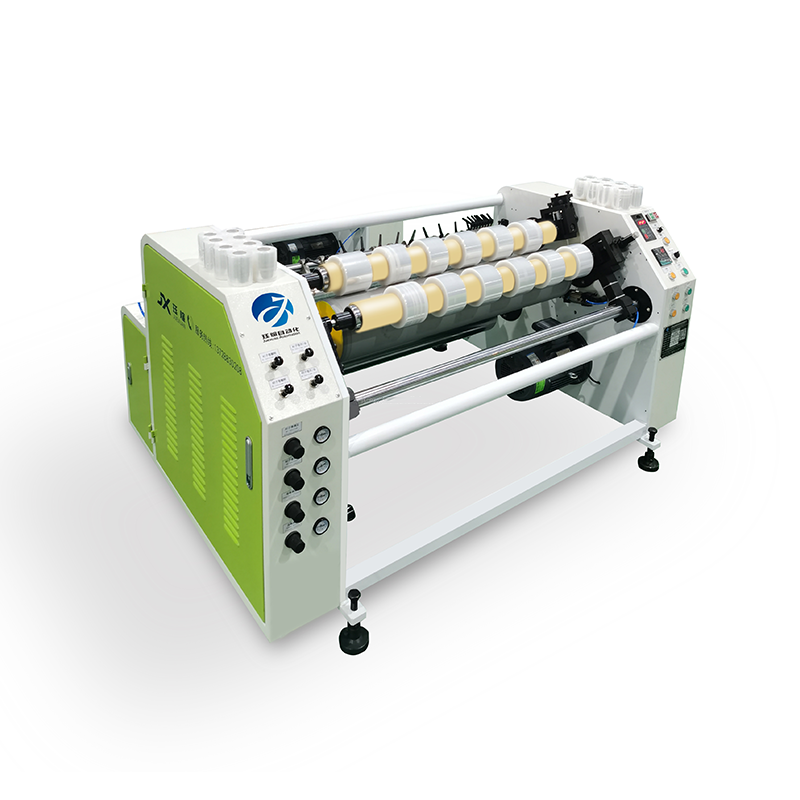

As a professional large-width stretch film slitter and master roll slitting machine, it’s designed for medium to large-scale producers who demand high throughput, precision, and versatility. Powered by a 4KW frequency conversion motor, it achieves a 1000m/min mechanical line speed and daily outputs of 1000-1500KG (12-hour shift), making it ideal for processing stretch film, vegetable preservation film, and specialty packaging materials. With three model variants, this industrial film processing equipment adapts to diverse master roll widths and production volumes.
The series’ defining feature is its ability to handle master rolls up to 1600mm (JX-1600-NP), eliminating the need for pre-cutting wide-format raw materials. This 1.6m stretch film rewinder streamlines workflows for producers working with large-width master rolls, reducing processing steps and boosting overall efficiency.
Unlike standard slitting machines, it supports rubber hose, paper tube, and injection tube as sub-roll cores – making it a multi-purpose slitting equipment for specialty packaging applications beyond traditional film processing. This flexibility caters to diverse industrial needs, from food preservation to heavy-duty wrapping.

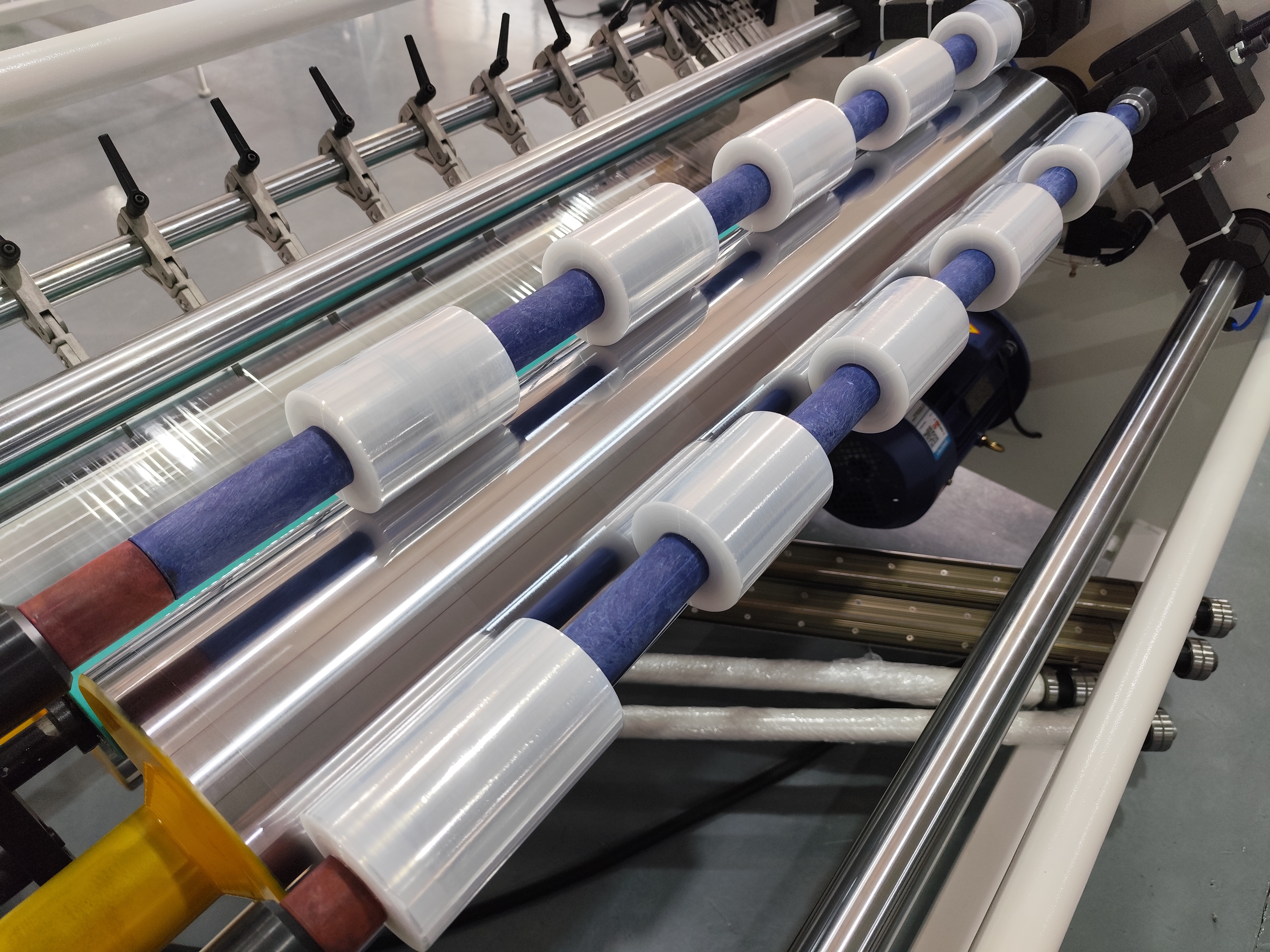

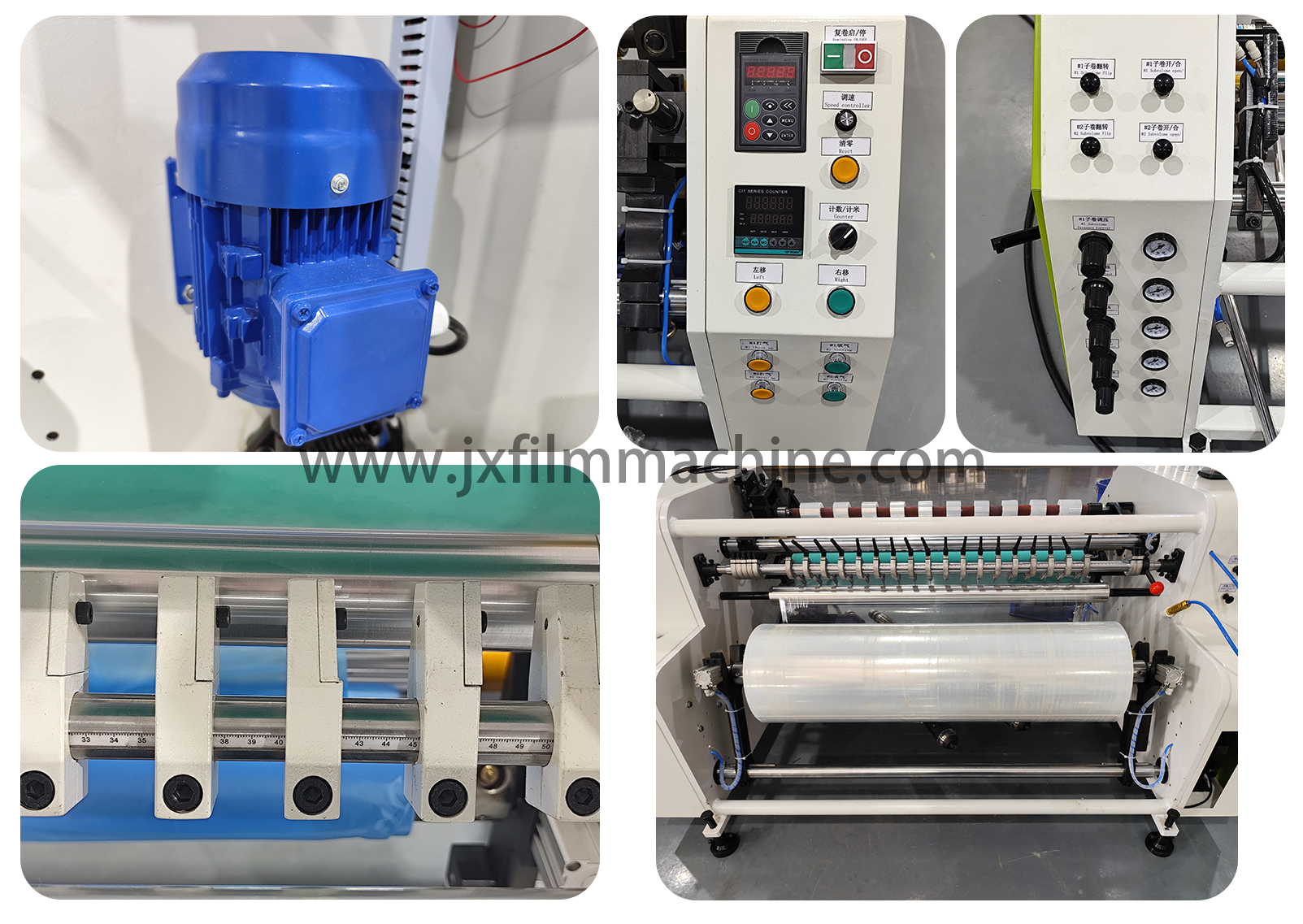

Featuring 1-inch/1.5-inch solid mandrel and 3-inch air expansion shaft, the machine ensures uniform, tight winding for every sub-roll. Thickened rolls and machine walls enhance stability during high-speed operation, while the 4KW motor delivers consistent power for continuous industrial use.
The JX-1000/1300/1600-NP series offers three tailored variants:
• JX-1000-NP: Max master roll width 1000mm, weight 800KG, dimensions 1820×1350×980mm, daily output 1000KG.
• JX-1300-NP: Max master roll width 1300mm, weight 1100KG, dimensions 2100×1350×980mm, daily output 1200KG.
• JX-1600-NP: Max master roll width 1600mm, weight 1350KG, dimensions 2380×1350×980mm, daily output 1500KG.
All models share a 280mm maximum sub-roll diameter and 1000m/min line speed, ensuring consistent performance across the range.
This heavy-duty rewinding machine processes stretch film, PE handle film, and vegetable film with precision. Sub-roll core sizes include 25/38/50/76mm (JX-1000/1300-NP) and 50/76mm (JX-1600-NP), with 2-inch custom cores available. The 4KW motor provides ample power for high-speed slitting, while frequency conversion enables smooth speed adjustments.
| Model Number | JX-1000/1300/1600-NP |
| Width of the film | 20-1000/1300/1600mm |
| Sub-roll Core | JX-1000/1300-NP 25/38/50/76mm JX-1600-NP 50/76mm |
| Sub-roll Diameter (max) | 280mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 4 KW |
| Master roll diameter (max) | 500mm |
| Width of the master roll (max) | 1000/1300/1600mm |
| Daily Output | 1000/1200/1500KG(12h) |
| Overall Size(L*W*H)(CM) | JX-1000-NP 1820×1350×980 JX-1300-NP 2100×1350×980 JX-1600-NP 2380×1350×980 |
| Weigh | 800/1100/1350 Kg |
Eliminates bottlenecks in wide master roll handling, increasing production throughput by 40% compared to narrow-width machines. It’s the perfect solution for producers scaling up to industrial-grade output.
High-strength steel construction, thickened components, and a 4KW motor ensure the machine withstands 24/7 operation (with proper maintenance). This reliability minimizes downtime and maximizes return on investment.
Multiple models, core size options, and multi-tube compatibility make it adaptable to diverse production lines – from food packaging to industrial goods wrapping. Custom 2-inch cores cater to unique market demands.
The inclined loading and unloading structure reduces operator fatigue and injury risk, making material handling safer and more efficient. It’s a user-centric feature that enhances workplace productivity.
As a leading professional manufacturer of stretch film rewinding and slitting machines, we prioritize quality at every stage. Each machine undergoes strict testing – including speed validation, load-bearing trials, and durability assessments – to meet international industrial standards. We use premium materials and precision engineering, and offer comprehensive after-sales support: installation guidance, technical training, and spare parts supply. Rest assured, your investment is protected by our commitment to reliability.
The series covers 1000mm (JX-1000-NP), 1300mm (JX-1300-NP), and 1600mm (JX-1600-NP) – ideal for large-format raw material processing.
Yes, it works with PE handle film, vegetable preservation film, PE wire packing film, and supports rubber hose, paper tube, or injection tube cores for specialty applications.
Yes, a 2-inch mandrel or air expansion shaft is offered as a custom option for all three variants.
Key differences are maximum master roll width, daily output, dimensions, and weight – core functions and performance parameters are consistent.
The JX-1600-NP measures 2380×1350×980mm (L×W×H). Ensure your workshop has sufficient floor space and overhead clearance for installation.
