This machine only takes 30 seconds to complete one winding which including the whole of process as automatic packing, automatic meter counting, automatic loading and cutting the film etc. It is equipped with a braking and electronic tension control system, perfectly replacing traditional manual packaging and improving production efficiency.
| Quantity: | |
|---|---|

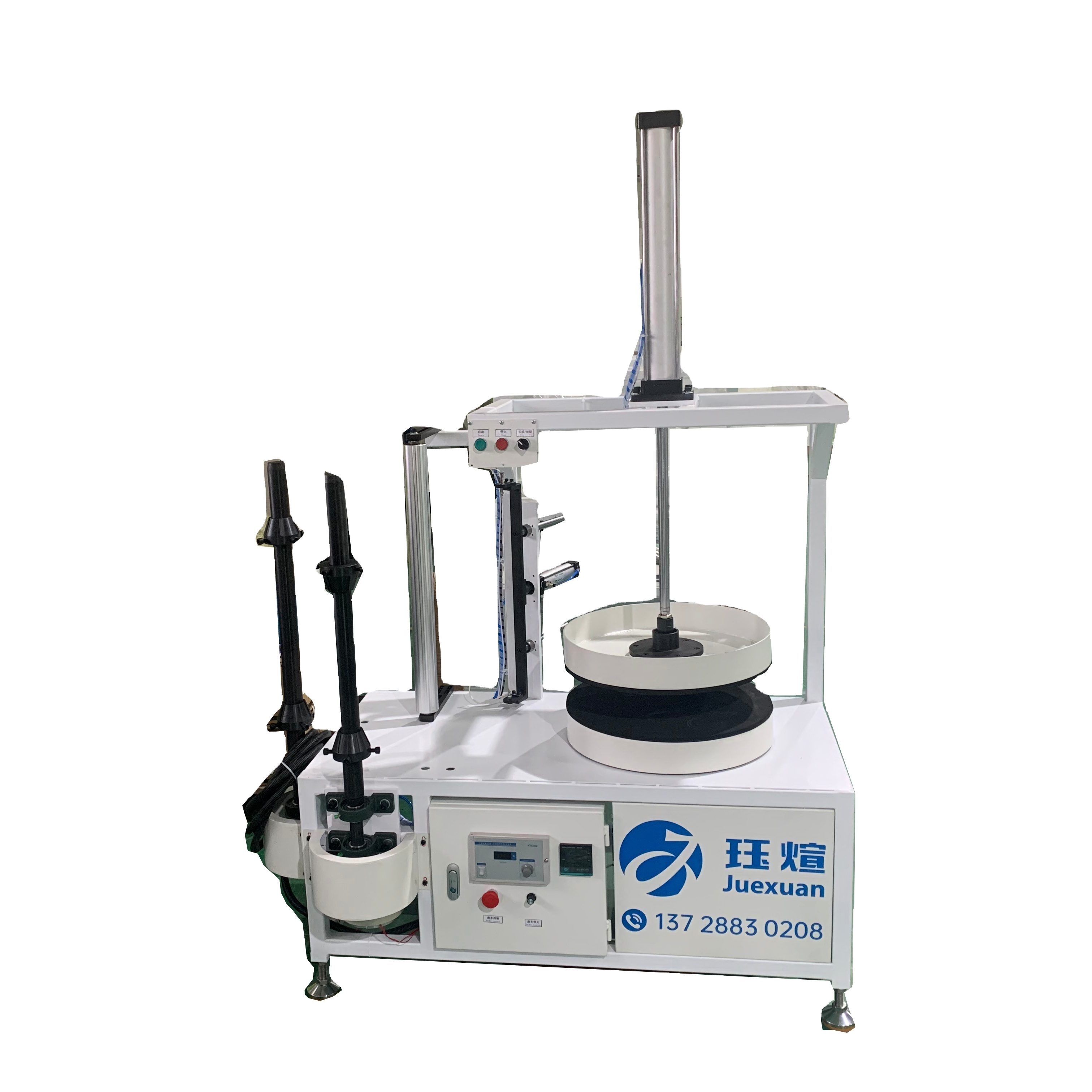

JX-500-W

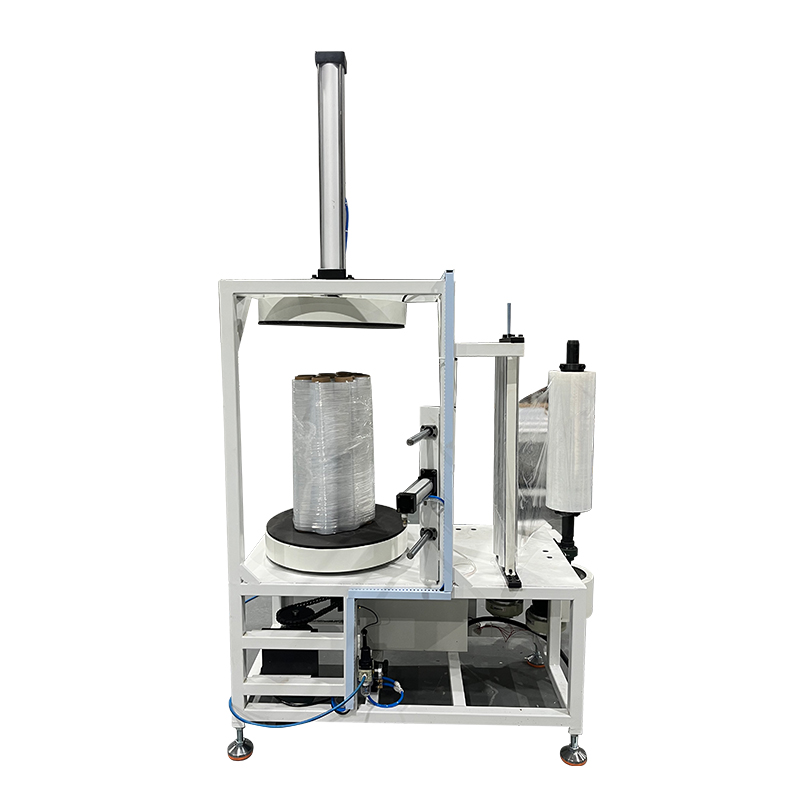

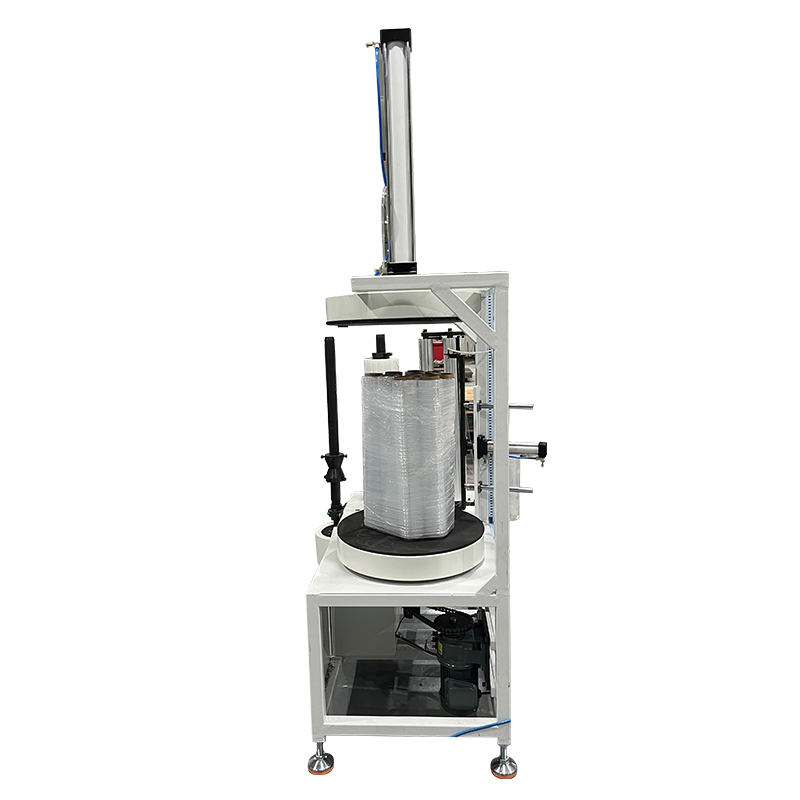

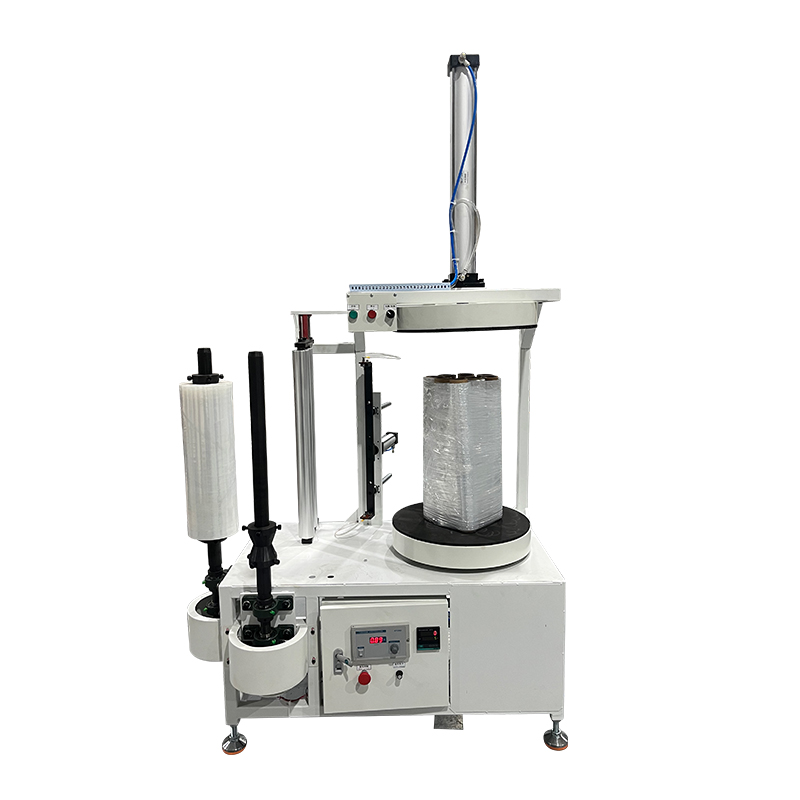

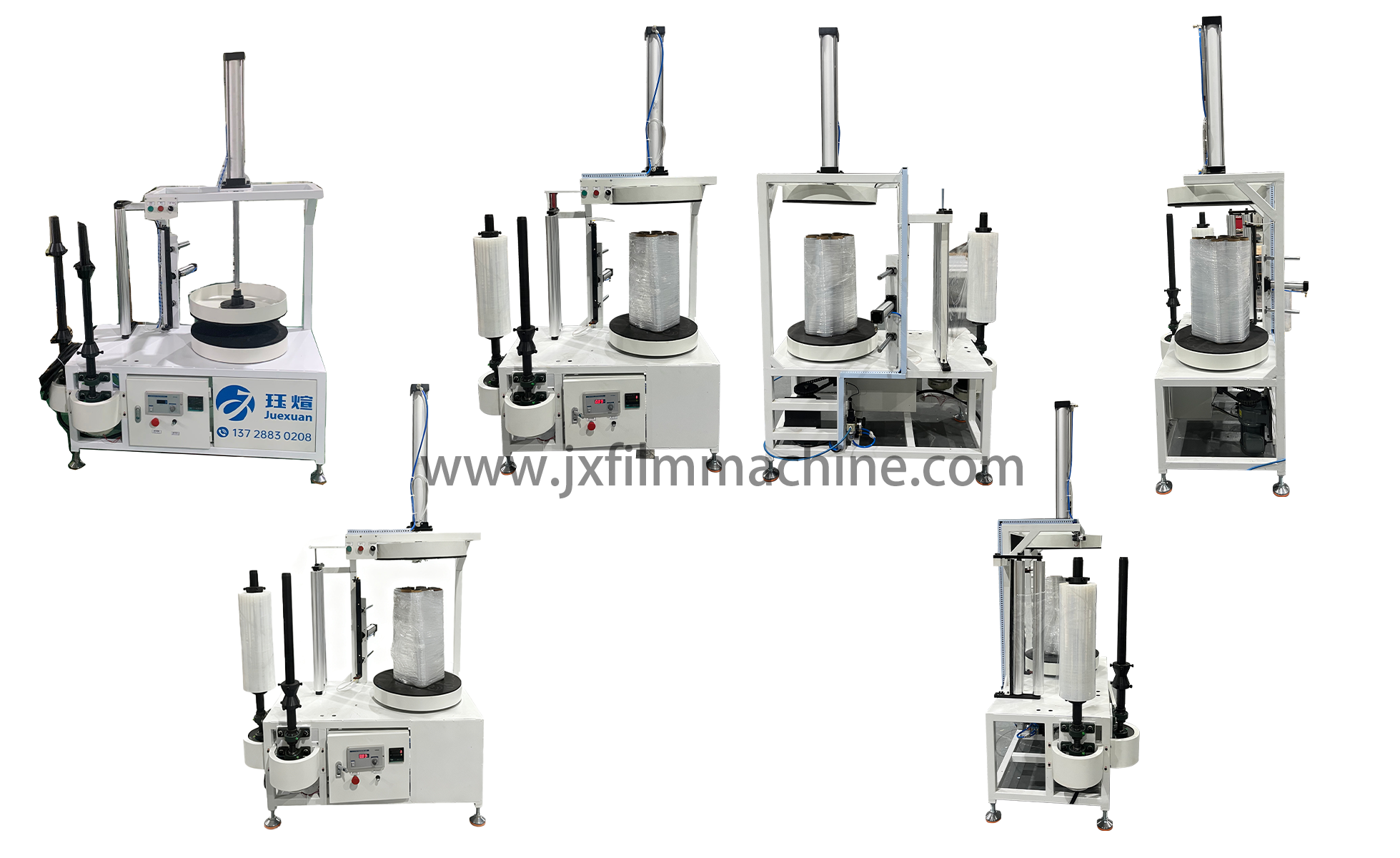

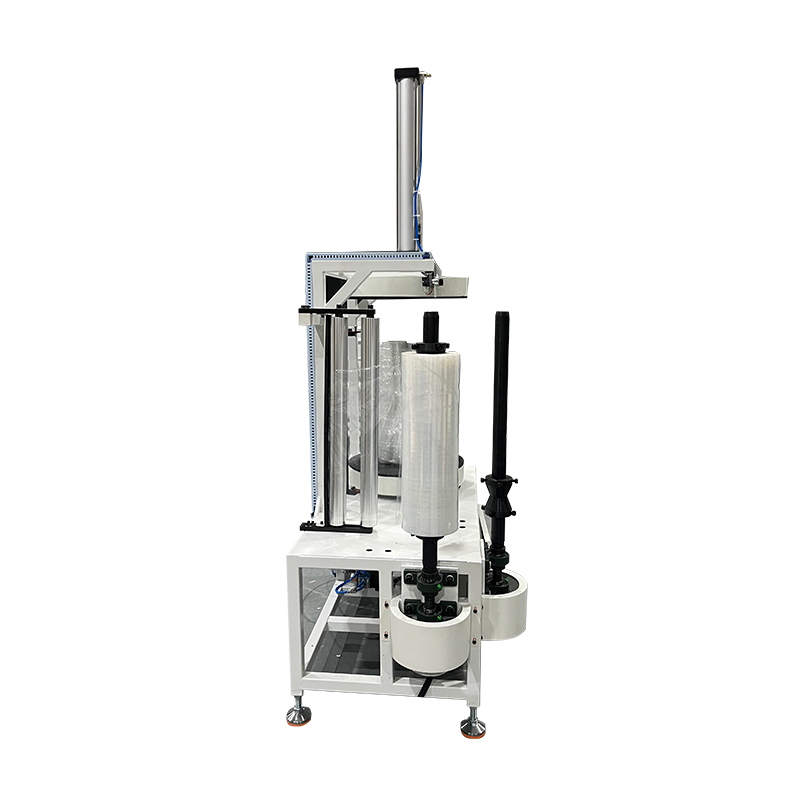

The automatic stretch film wrapping machine JX-500-W is a cutting-edge packaging solution designed to streamline the wrapping process for various products. As a core product in our automatic packaging line, it integrates automatic stretch film coreless rewinding technology, electronic tension control, and fully automated operation—perfect for replacing traditional manual packaging. This fully automatic stretch film rewinding and slitting machine is widely used in logistics, manufacturing, and warehousing, handling everything from small components to bulk goods. With its 30-second cycle time and high precision, it significantly improves production efficiency while ensuring consistent wrapping quality. Whether you’re wrapping pallets, boxes, or irregularly shaped items, this automatic PE film wrapping machine delivers reliable performance for industrial and commercial needs.
| Model Number | JX-500-W |
| Rotary table diameter | 500mm |
| Maximum bearing of rotary table | 50Kg |
| Film Heigh | 200-550mm |
| The Number of Wrapping circles | Can be set arbitrarity |
| Roll film width / height | 200-550mm |
| Roll film diameter | 200mm |
| Packing quantity | 4 rolls(stk) × Φ240mm |
| 500KG(12h) | |
| Overall Size(L*W*H)(CM) | 1500×1000×2100 |
The machine completes the entire wrapping process—including automatic packing, automatic meter counting, automatic loading, and film cutting—in just 30 seconds. This drastically reduces packaging time compared to manual operations, boosting overall productivity by up to 500%.
Unlike fixed-cycle wrapping machines, the JX-500-W allows users to set the number of wrapping circles arbitrarily. This flexibility ensures optimal packaging tightness for different products, preventing damage during transportation.
Equipped with a braking and electronic tension control system, the machine maintains consistent film tension throughout the wrapping process. This avoids over-stretching or loose wrapping, ensuring the film adheres tightly to the product without tearing.
The machine features a rotary table with a diameter of 500mm and a maximum bearing capacity of 50KG, making it suitable for wrapping small to medium-sized products. The film height ranges from 200-550mm, and the roll film width/height is adjustable within the same range, accommodating various product sizes. The roll film diameter is 200mm, and the packing quantity is 4 rolls (stk) × Φ240mm, meeting batch packaging needs.
With a daily output of 500KG (12h), the machine keeps up with high-volume packaging demands. Its fully automatic operation eliminates the need for manual intervention, reducing labor costs and human error—critical for businesses aiming to scale operations.
The machine’s overall dimensions (1500×1000×2100mm) provide a stable base for wrapping, even when handling the maximum load. The robust frame is constructed with high-quality steel, ensuring durability and long service life in industrial settings.
By automating the entire wrapping process—from loading to cutting—this machine replaces 2-3 manual workers, significantly reducing labor costs. It operates continuously without fatigue, ensuring consistent packaging quality 24/7.
The advanced electronic tension control system adjusts film tension in real time, preventing film breakage and ensuring uniform wrapping. This is especially important for fragile or irregularly shaped products that require gentle yet secure packaging.
Users can set the number of wrapping circles arbitrarily, adapting to different product types and transportation requirements. Whether you need tight wrapping for heavy items or loose wrapping for delicate goods, the machine delivers customized results.
As a specialized automatic PE film wrapping machine, it works seamlessly with standard PE stretch films—widely available in the market at cost-effective prices. This compatibility reduces material costs and ensures easy sourcing of packaging materials.
We adhere to strict quality control standards in the production of the automatic stretch film wrapping machine. All components, including the rotary table, motor, and electronic control system, are sourced from reputable suppliers and undergo rigorous testing. The machine comes with a 1-year warranty on core parts, and our technical team provides comprehensive after-sales support—including installation guidance, maintenance training, and troubleshooting. We also offer customized solutions to meet specific packaging needs, ensuring the machine aligns with your business requirements. Additionally, the machine complies with international safety and environmental standards, making it a reliable and responsible choice for your packaging line.
The machine completes one full wrapping cycle (including packing, counting, loading, and cutting) in just 30 seconds, significantly faster than manual wrapping.
The rotary table can bear up to 50KG, making it suitable for wrapping small to medium-sized products such as boxes, cartons, and small pallets.
Yes! The number of wrapping circles can be set arbitrarily via the control panel, allowing you to customize wrapping tightness for different products.
Absolutely. It is a specialized automatic PE film wrapping machine designed to work with standard PE stretch films, ensuring cost-effective and reliable packaging.
We offer a 1-year warranty on core components, free installation guidance, online technical support, and maintenance training. Spare parts are available for quick delivery to minimize downtime.
