This machine can both rewind and slitte the stretch film, PE handle film, PE wire packing film etc. It is very practical for small-batch stretch film producers. Compared with the traditional one, this machine has made the following improvements：
(1) This machine equips with the structure of Inclined out loading and unloading, in this way, the much physical power of the operator will be saved and the production efficiency will be improved too much.
(2) Sub-rolls are 1 and 1.5 inches more firmer solid mandrel and 3 inches air expansion shaft. 2 inches is not in the standard version, but if you demand, it can be chooesd with mandrel or air expansion shaft.
(3) The rolls and machine walls are thicker.
| Quantity: | |
|---|---|
JX-500-NP

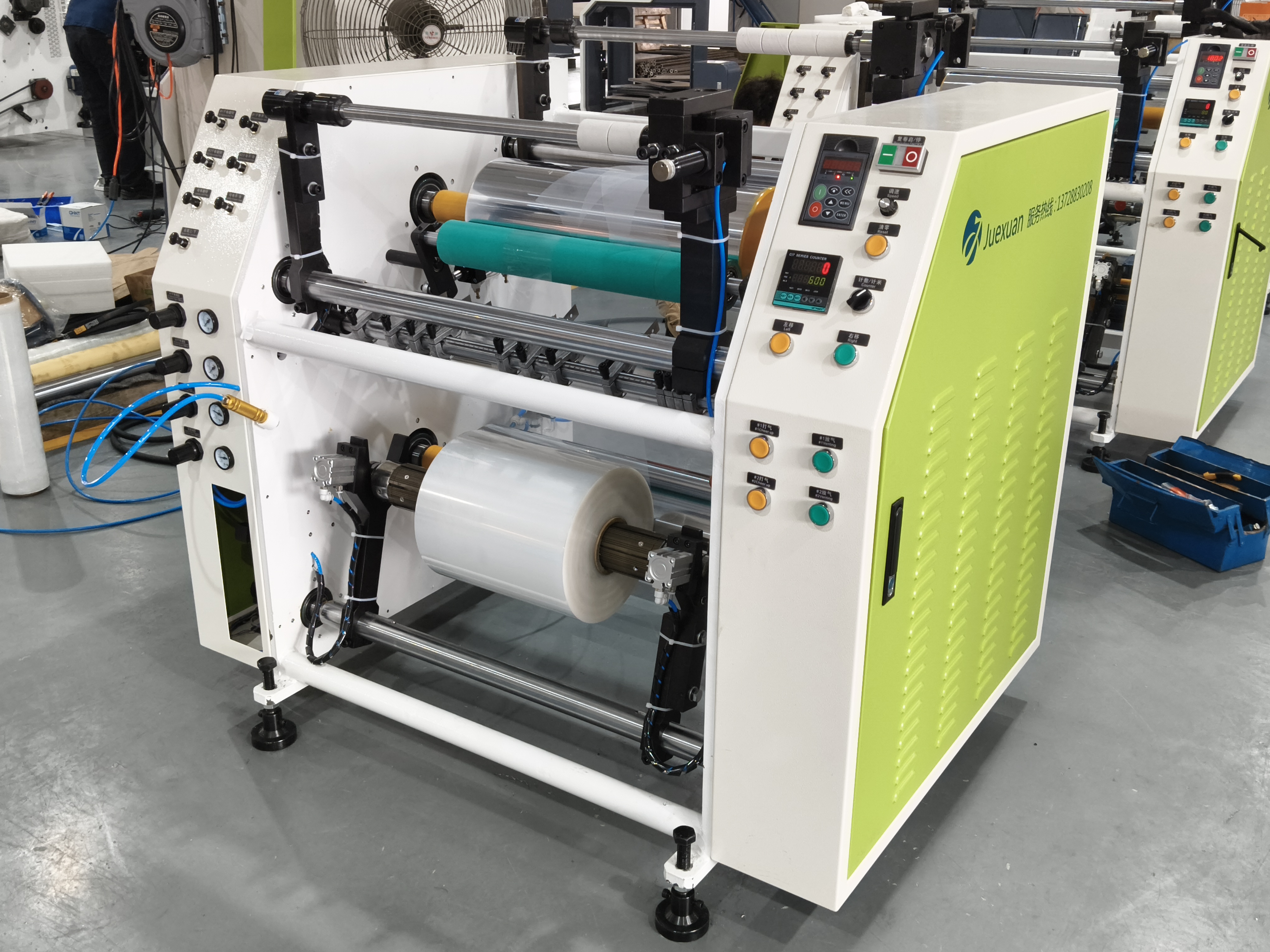

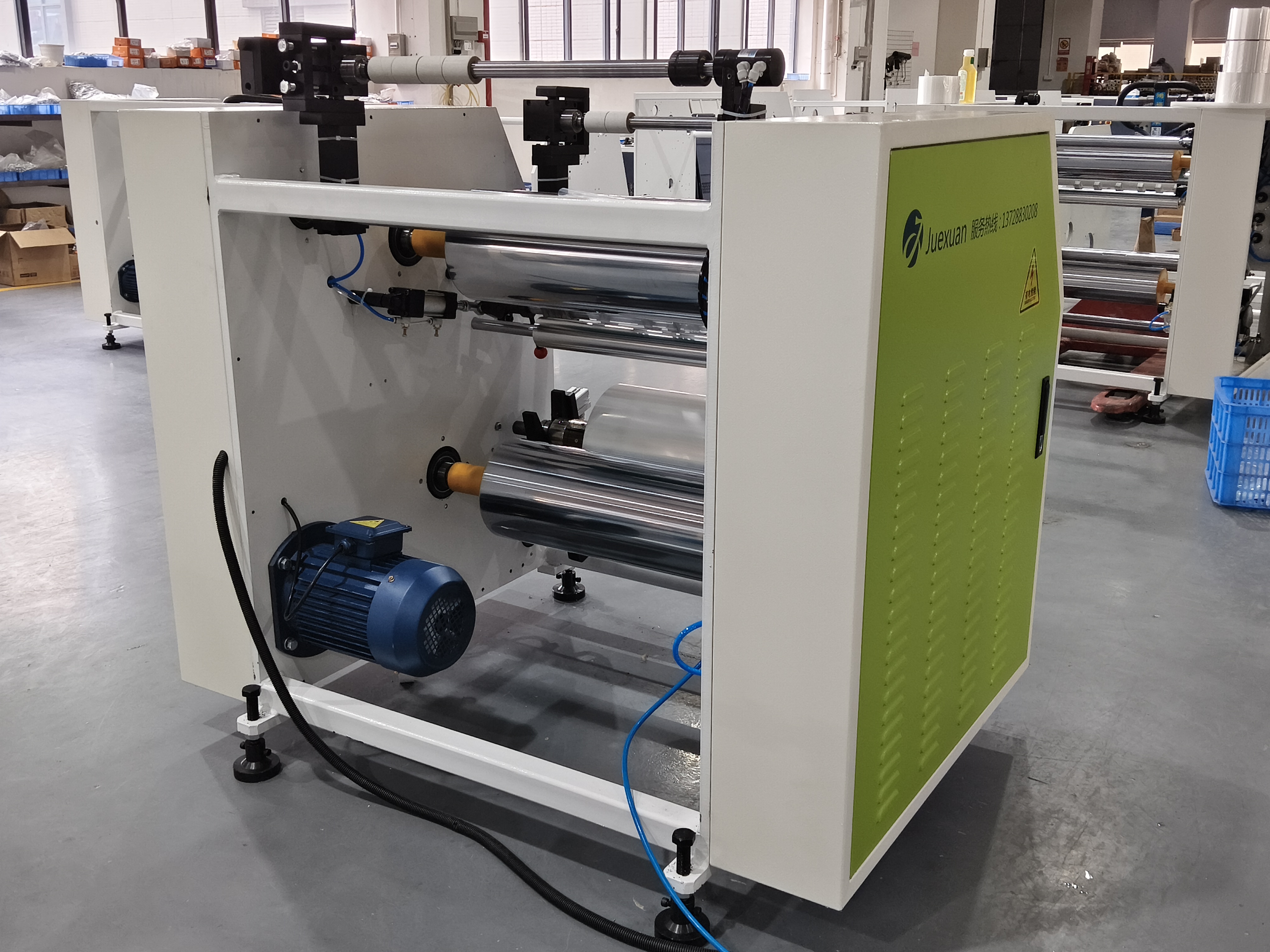

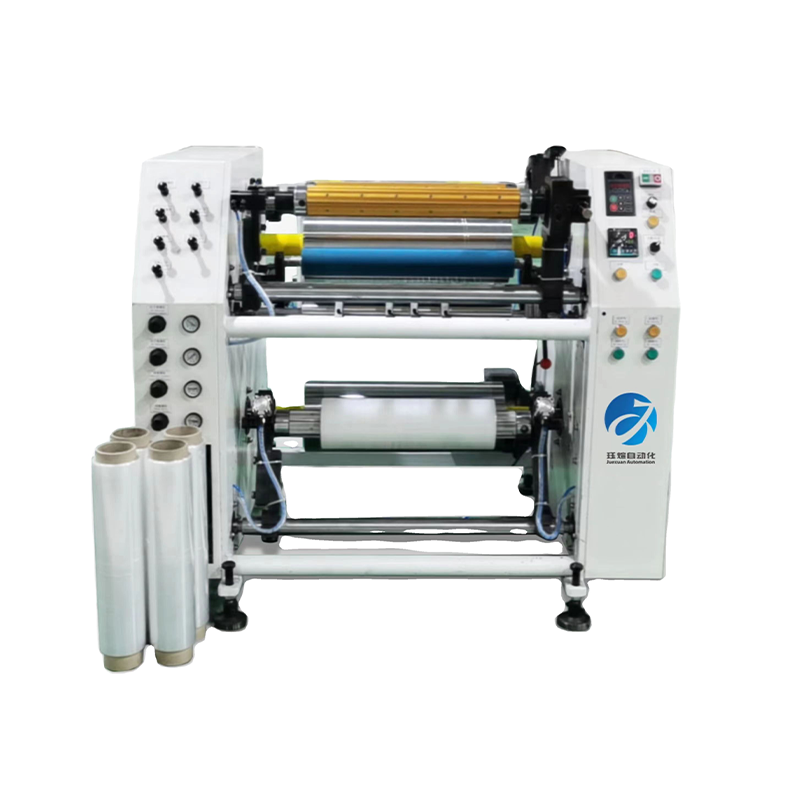

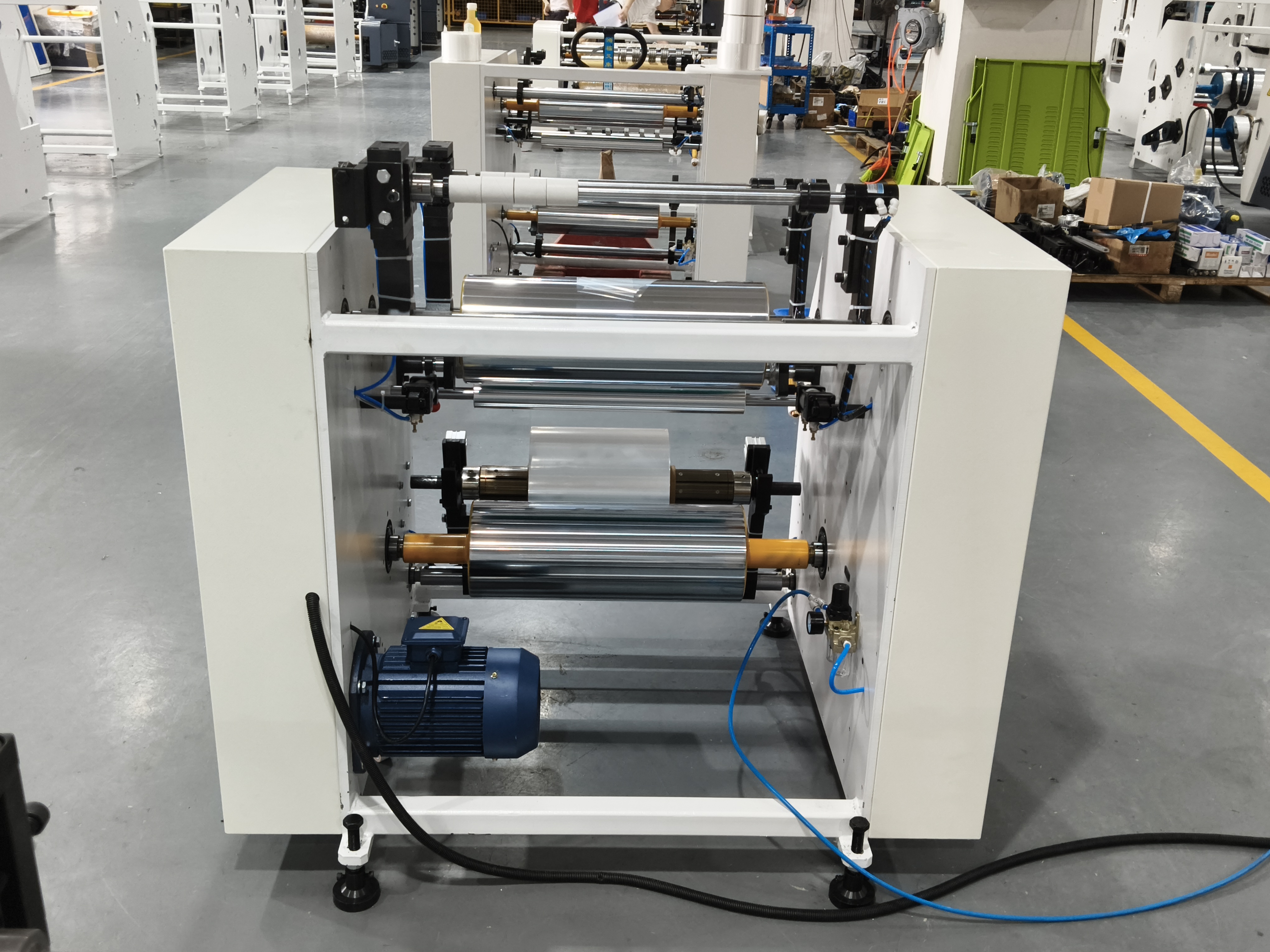

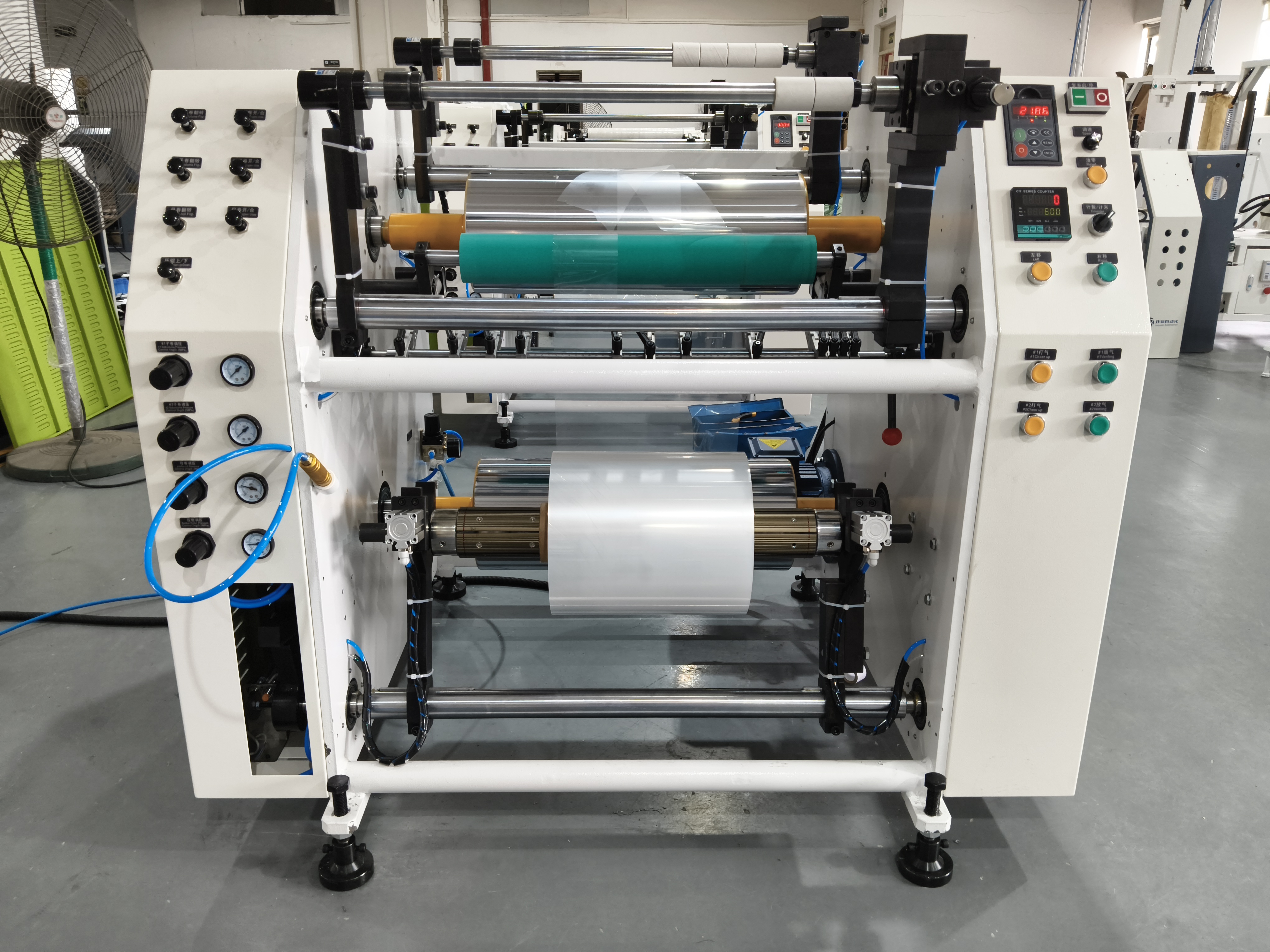

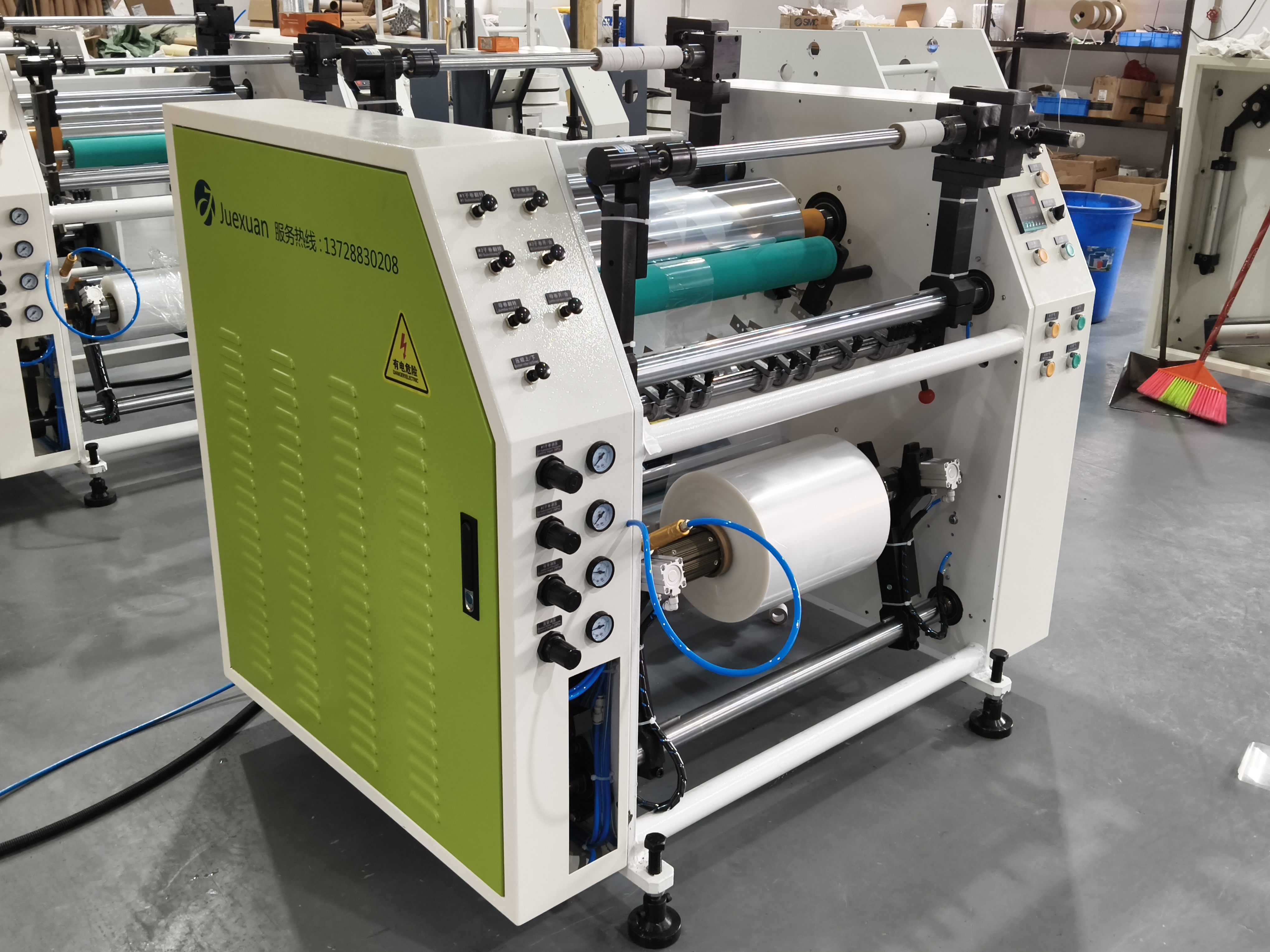

Kickstart your small-batch film processing with the JX-500-NP high speed stretch film rewinder and slitter – a compact, multi-functional workhorse designed to rewind and slit stretch film, PE handle film, PE wire packing film, and more with unparalleled precision. As a professional stretch film slitting machine and rewinding machine integrated solution, it’s tailored for small-batch stretch film producers who need to balance speed, flexibility, and operational ease. Boasting a mechanical design line speed of 1000m/min and a daily output of 800KG (12-hour shift), this film rewinding equipment delivers industrial-grade performance without occupying excessive workshop space. Its 20-500mm film width compatibility and multiple sub-roll core options make it a versatile asset for businesses looking to streamline small-batch production workflows.
The machine’s signature inclined loading and unloading structure revolutionizes material handling by eliminating heavy manual lifting. This user-centric design cuts operator physical strain in half while boosting production efficiency by 30% compared to traditional vertical loading machines, ensuring seamless transitions from mother roll setup to finished sub-roll collection.
Equipped with 1-inch and 1.5-inch solid mandrel (engineered for superior firmness) and a 3-inch air expansion shaft, the JX-500-NP ensures tight, slip-free winding for every sub-roll. For specialized needs, a 2-inch mandrel or air expansion shaft is available as a custom option, making it adaptable to unique production requirements.
Thicker rolls and machine walls enhance the equipment’s structural integrity, enabling continuous operation in demanding workshop environments. This robust build minimizes maintenance costs and extends the machine’s service life, delivering long-term value for small-batch producers.
| Model Number | JX-500-NP |
| Width of the film | 20-500mm |
| Sub-roll Core | 25/38/50/76mm |
| Sub-roll Diameter (max) | 280mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 2.2KW |
| Mother roll diameter (max) | 500mm |
| Width of the mother roll (max) | 500mm |
| Daily Output | 800KG(12h) |
| Overall Size(L*W*H)(CM) | 1320×1100×1150 |
| Weigh | 610 Kg |
Beyond standard stretch film slitting, this multi-purpose slitting machine effortlessly processes PE handle film, PE wire packing film, and protective film – making it suitable for packaging, logistics, and industrial wrapping applications. Its broad material range eliminates the need for multiple specialized machines, optimizing your production line.
With a maximum mother roll diameter of 500mm and width of 500mm, the JX-500-NP handles raw materials commonly used in small-batch production. The 2.2KW frequency conversion motor delivers smooth speed regulation, while the 1000m/min line speed reduces processing time for each roll. At just 1320×1100×1150mm (L×W×H) and 610KG, it fits seamlessly into compact workshops without compromising performance.

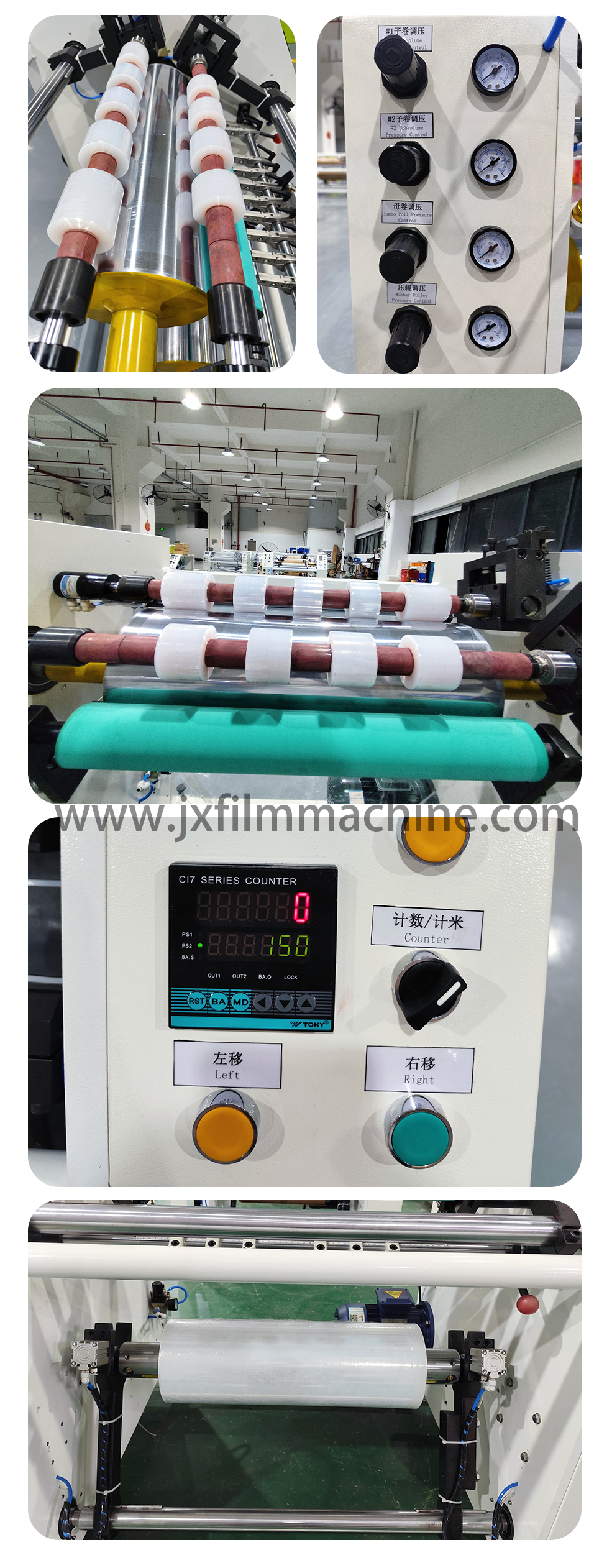

Intuitive controls (including a counting/metering function) and the labor-saving inclined design mean minimal training is required for operators to master the machine. Even novice users can achieve consistent results, reducing human error and operational downtime.
Thickened rolls, reinforced machine walls, and high-grade steel construction ensure the JX-500-NP withstands frequent use. This durability translates to fewer maintenance interruptions and a longer service life than standard small-batch film processing equipment.
Supports sub-roll core sizes of 25/38/50/76mm (with 2-inch custom options) and a 20-500mm film width range, adapting to diverse product specifications without additional modifications. It’s the perfect solution for businesses producing multiple film types or custom-sized rolls.
With 1000m/min line speed and 800KG daily output, the machine outperforms traditional rewinders, helping small-batch producers meet tight deadlines and scale operations without investing in large-scale equipment.
As a trusted protective film rewinding machine manufacturer, we adhere to strict international quality standards. Every JX-500-NP undergoes rigorous testing – including speed validation, load-bearing trials, and durability assessments – before leaving our factory. We use high-strength steel and precision-machined components to ensure reliability, and offer comprehensive after-sales support, including technical guidance and spare parts supply, to protect your investment.
It is compatible with stretch film, PE handle film, PE wire packing film, protective film, and other similar plastic films.
Standard sizes are 25/38/50/76mm. A 2-inch (50.8mm) mandrel or air expansion shaft is available as a custom option.
Yes – its compact dimensions (1320×1100×1150mm) and 610KG weight make it ideal for small workshops with limited space.
Minimal – regular cleaning and lubrication of moving parts (e.g., the air expansion shaft) are sufficient to ensure long-term performance.
Absolutely – it reduces material handling time by 30% compared to vertical loading machines, cutting overall production cycles for small batches.
