This machine is suitable for rewinding aluminum foil and tin foil used in households, hotels, restaurants and barbecues. The winding appearance is elegant and generous, with extremely high flatness. The rewinding and changing speed is fast, making it very suitable for processing and production in small factories.
(1) Simple to operate and safty.
(2) Rewind speed is max to 300m/min.
| Quantity: | |
|---|---|
JX-500-AF

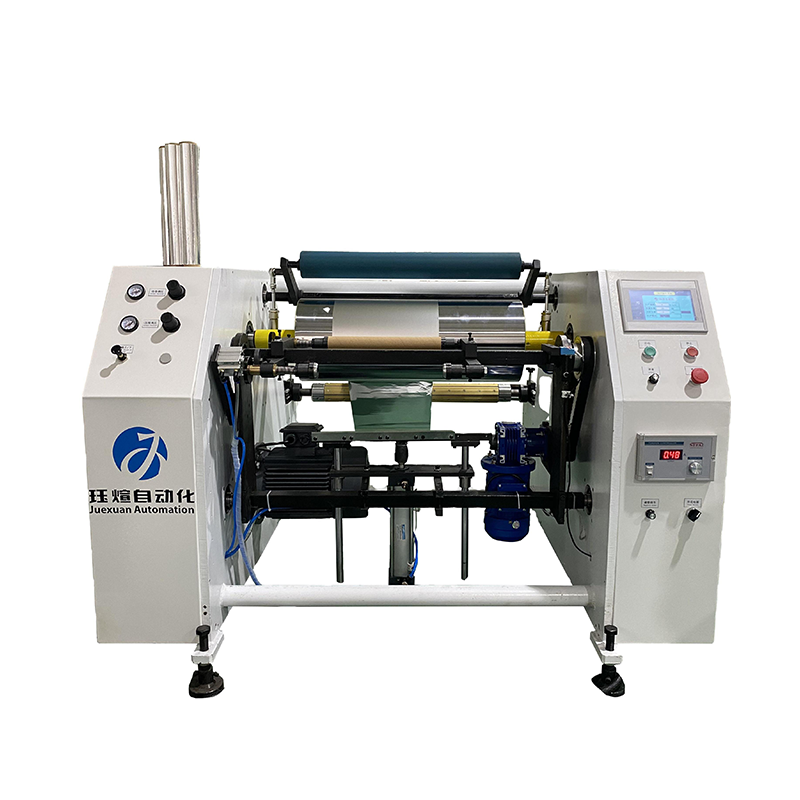

The two station aluminum foil rewinding machine JX-500-AF is a high-performance, semi-automatic equipment tailored for rewinding aluminum foil and tin foil widely used in households, hotels, restaurants, and barbecues. Designed with small factories and production workshops in mind, this aluminum foil roll machine balances efficiency, simplicity, and reliability to meet daily processing needs. Whether you’re producing standard household aluminum foil rolls or specialized foil for catering and outdoor barbecues, this machine delivers consistent results with its advanced mechanical design and user-friendly operation. It integrates fast rewinding speed, excellent flatness, and safe operation, making it an indispensable asset for foil processing businesses.
| Model Number | JX-500-AF |
| Width of the film | 300-500mm |
| Sub-roll Core | 38/50mm |
| Sub-roll Diameter (max) | 120mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 2.2KW |
| Mother roll diameter (max) | 600mm |
| Width of the mother roll (max) | 500mm |
| Daily Output | 500KG(12h) |
| Overall Size(L*W*H)(CM) | 1520×1250×1100 |
| Weigh | 600 Kg |
The unique two-station structure allows for quick roll changing while rewinding, eliminating downtime between batches. This design ensures continuous production, significantly boosting overall workflow efficiency—ideal for small factories with high daily output requirements.
With a maximum rewinding speed of 300m/min (mechanical design line speed up to 1000m/min), the machine completes rewinding tasks in record time. Moreover, its precision engineering guarantees extremely high flatness of the finished rolls, ensuring an elegant and generous winding appearance that meets market quality standards.
Boasting a daily output of 500KG (12h), this semi-automatic aluminum foil rewinding machine easily keeps up with small-scale production demands, helping businesses fulfill orders efficiently without compromising quality.
The machine accommodates a film width of 300-500mm, matching the maximum width of mother rolls (500mm) for seamless processing. It supports sub-roll cores of 38mm or 50mm, with a maximum sub-roll diameter of 120mm—perfect for producing commonly used foil roll sizes in the market. The mother roll can reach a maximum diameter of 600mm, reducing the frequency of mother roll replacement and further enhancing productivity.
Equipped with a 2.2KW motor and frequency conversion technology, the machine delivers stable power output for smooth rewinding, even when handling thick or heavy mother rolls. Its overall dimensions (1520×1250×1100mm) and 600Kg weight reflect a robust, durable structure—built with high-quality materials to withstand long hours of continuous operation in industrial environments.
Beyond household and catering use, this aluminum foil rewinding machine is also suitable for processing foil used in barbecues, food packaging, and small-scale industrial applications. Its versatility makes it a cost-effective choice for businesses looking to expand their product lines.
Designed with simplicity in mind, the machine requires minimal training for operators to master. It features safety guards and user-friendly controls, reducing the risk of accidents and ensuring a secure working environment—critical for small factories with limited technical staff.
The combination of high rewinding speed (up to 300m/min) and two-station design minimizes production delays. Roll changes are quick and hassle-free, allowing operators to switch between sub-roll specifications efficiently.
Unlike low-quality rewinding machines that produce uneven or wrinkled rolls, the JX-500-AF delivers consistent flatness and an elegant winding appearance. This enhances product marketability, as consumers prefer foil rolls that are easy to unroll and use.
Despite its robust performance, the machine’s compact overall size makes it suitable for small factories or workshops with limited space. It can be easily integrated into existing production lines without requiring major layout adjustments.
We prioritize quality in every component of the two station aluminum foil rewinding machine. The machine is constructed with high-grade steel and precision-manufactured parts, undergoing strict quality control tests before leaving the factory. We offer a 1-year warranty on core components (motor, frequency converter) and provide lifelong technical support. Our professional team is available to assist with installation, maintenance, and troubleshooting, ensuring your machine operates at peak performance for years to come. Additionally, all safety features comply with international industrial standards, giving you peace of mind during operation.
It is specifically designed for aluminum foil and tin foil used in households, hotels, restaurants, and barbecues. It does not support plastic films or other non-foil materials.
The machine can produce up to 500KG within 12 hours of continuous operation, making it ideal for small-scale production needs.
Absolutely! Its easy operation, fast speed, and compact design make it a perfect fit for small factories and workshops. It requires minimal labor and space, while delivering high productivity.
You can adjust the sub-roll diameter by setting the machine’s control parameters, and switch between 38mm or 50mm sub-roll cores as needed. Detailed instructions are provided in the user manual.
