This machine adopts the function of automatic infation and deflation of the inflatable shaft. In addition, a film leveling mechanism is added, which can keep the film taht is cut out of the slitting flat, and does not move or return the edge. The control is more stable. The machine is simple to operate, saves time and effort, reduces labor, intensity and greatly improves production efficiency.
(1) Four-axis rolls changing, double the efficiency.
(2) Automatic loading the film, automatic change the rolls and automatic cutting the film.
(3) Support sub-rolls size as 2 inches(50mm) and 3 inches(76mm) and other size customized.
(4) Width of master roll no more than 1 /1.5 merter.
| Quantity: | |
|---|---|
JX-1000/1500-4BAS

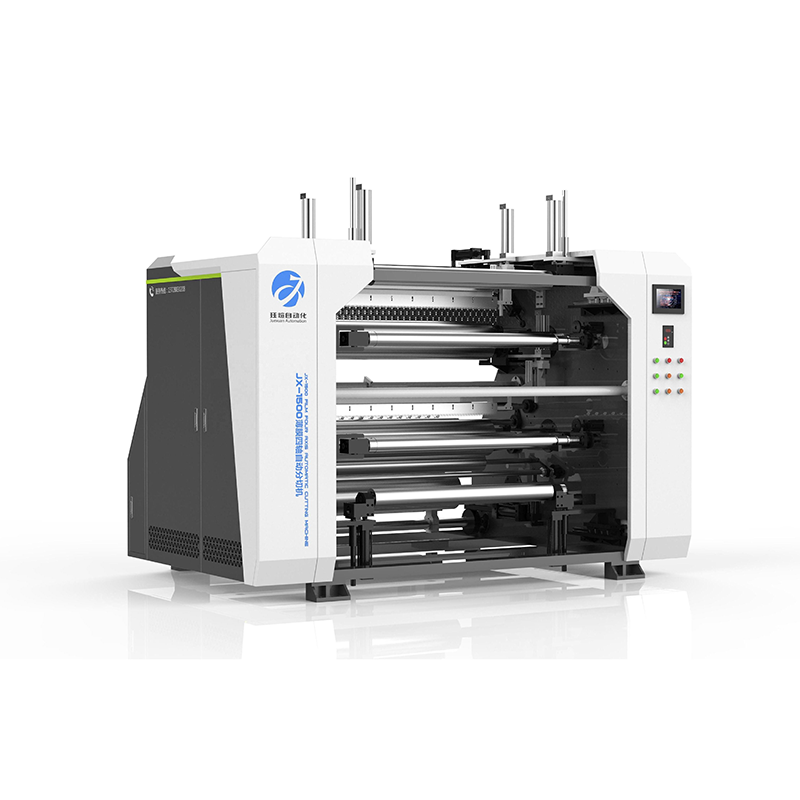

The 1/1.5 Meter Automatic Stretch Film Four-axis Slitting Machine (Model: JX-1000/1500-4BAS) is a versatile and high-performance solution for large-scale film processing. Designed by Juexuan Automation, this four-axis slitting machine caters to master rolls with maximum widths of 1000mm or 1500mm, making it perfect for industries handling wide-format films such as PVC preservation film, PE film, and heavy-duty winding film. With its innovative features like inflatable shaft and film leveling mechanism, it delivers flawless, flat sub-rolls while maximizing production efficiency – a must-have for modern packaging and film manufacturing facilities.
Slitting of wide-format stretch film for industrial packaging and logistics.
Processing of PVC preservation film for food packaging and storage.
Production of PE film for construction, electronics, and daily necessities.
Cutting of vegetable strapping film for agricultural and retail packaging.
| Model Number | JX-1000/1500-4BAS |
| Width of the film | 20-1000/1500mm |
| Sub-roll Core | 50/76mm |
| Sub-roll Diameter (max) | 260mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 4/5.5 KW |
| Master roll diameter (max) | 500mm |
| Width of the master roll (max) | 1000/1500mm |
| Daily Output | 3000/3500KG(12h) |
| Overall Size(L*W*H)(CM) | JX-1000-4BAS 2500×1720×2050 JX-1500-4BAS 3500×1720×2050 |
| Weigh | 1400/2000 Kg |
The JX-1000/1500-4BAS stands out with two revolutionary features: automatic inflation and deflation of the inflatable shaft and an integrated film leveling mechanism. The inflatable shaft ensures secure clamping and quick release of master rolls, simplifying loading and reducing downtime. The film leveling mechanism eliminates edge curling and movement, guaranteeing that every slit sub-roll is flat, uniform, and ready for immediate use. Combined with its four-axis roll changing system, this machine offers unmatched stability, precision, and efficiency for wide-format film slitting.
Available in two configurations (JX-1000-4BAS and JX-1500-4BAS), the machine adapts to your production needs:
JX-1000-4BAS: Handles master rolls up to 1000mm wide, weighs 1400 Kg, and has dimensions of 2500×1720×2050 CM.
JX-1500-4BAS: Accommodates master rolls up to 1500mm wide, weighs 2000 Kg, and features dimensions of 3500×1720×2050 CM.
Both models share core specs: maximum master roll diameter of 500mm, sub-roll diameter up to 260mm, and mechanical design line speed of 1000m/min. The motor/frequency conversion options (4 KW for 1000mm model, 5.5 KW for 1500mm model) ensure power matching for different workloads.

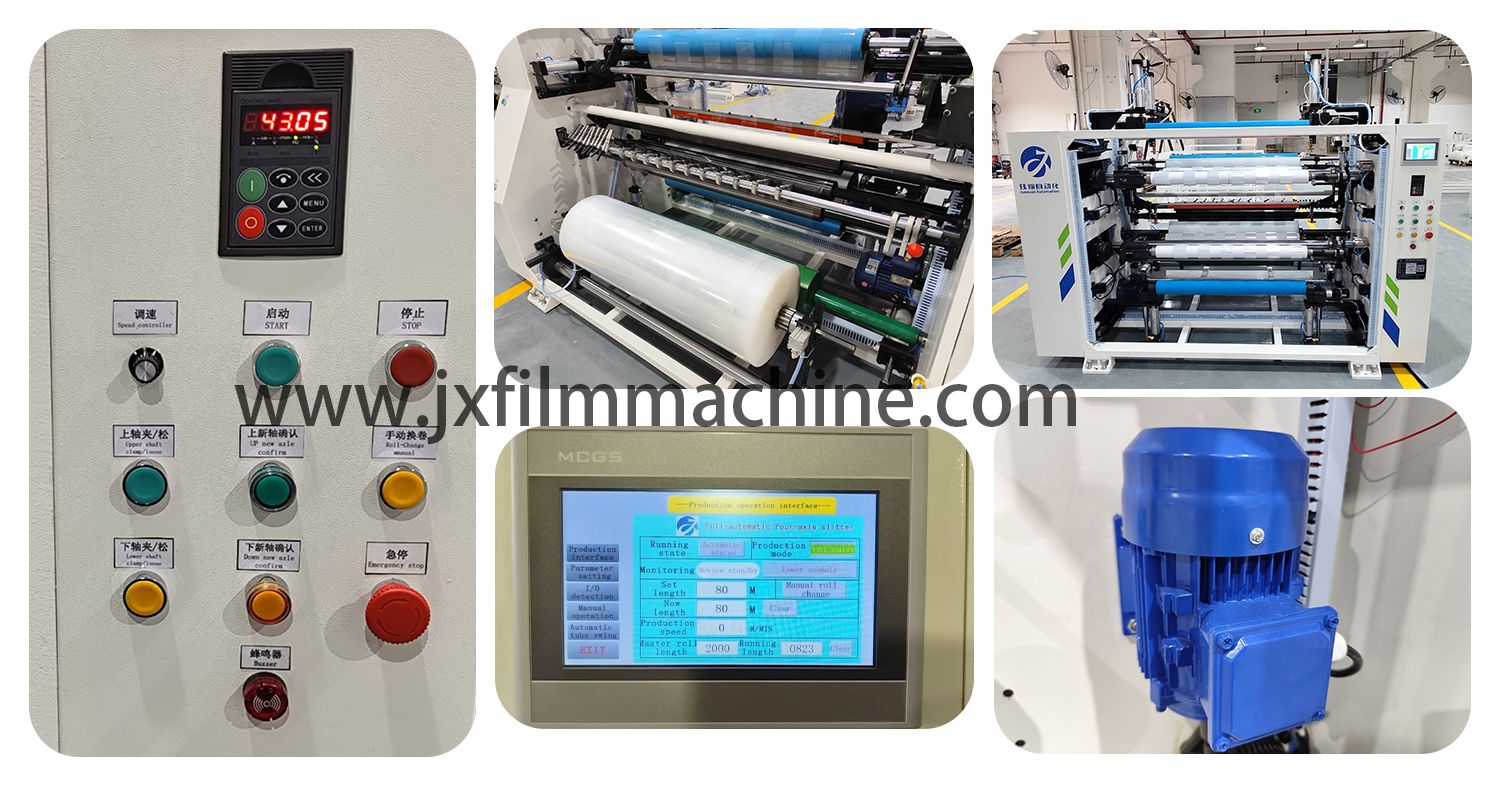

The machine is equipped with a user-centric control system, featuring functions like upper/lower shaft clamping/releasing, speed regulation, and emergency stop. It supports sub-roll core sizes of 50mm (2 inches) and 76mm (3 inches), with custom sizes available for specialized applications.
Versatile Width Compatibility: Handles master rolls up to 1m or 1.5m, adapting to diverse production requirements.
Flawless Film Flatness: Film leveling mechanism ensures slit films are flat, no edge movement or curling.
Efficient Inflatable Shaft: Automatic inflation/deflation simplifies roll loading/unloading, saving time and labor.
High Daily Output: Delivers 3000KG (1m model) or 3500KG (1.5m model) per 12-hour shift, meeting high-volume demands.
Stable Performance: 4/5.5 KW motor with frequency conversion ensures smooth operation and energy efficiency.
Customizable Options: Supports custom sub-roll sizes and slitting widths for personalized solutions.
At Juexuan Automation, quality is our top priority. The JX-1000/1500-4BAS is built with premium materials, including high-grade steel and durable components, to withstand continuous industrial use. Each machine undergoes strict quality inspections, including slitting precision tests, load-bearing trials, and automation function verifications. We offer a comprehensive warranty, technical support, and on-site maintenance services to ensure your investment delivers long-term value. Whether you need troubleshooting or spare parts, our team is ready to assist.
The key difference is master roll width capacity: JX-1000-4BAS handles up to 1000mm, while JX-1500-4BAS supports up to 1500mm. They also differ in weight, dimensions, and motor power (4 KW vs. 5.5 KW) to match their workloads.
Yes! The JX-1000/1500-4BAS is specially designed for PVC preservation film, PE film, stretch film, and other common packaging films, offering versatile compatibility for various industries.
The film leveling mechanism eliminates tension inconsistencies during slitting, ensuring the finished sub-rolls are flat, with no edge curling or movement. This enhances product appearance and usability for end-users.
