Environmental protection is an inevitable requirement for sustainable development, and stretch film rewinding without core is the trend. Therefore, we invented and created this fully automatic two-shafts coreless stretch film rewinding machine. This machine has been sold to many countries such as Mexico, Thailand, Saudi Arabia, Turkey, the United States, etc.
(1) This is a fully automatic machine, such as automatic loading the film, automatic breaking the film, automatic change the rolls and automatic receive the finished rolls.
(2) Match with the servo system, Simple operation, Precise control, and High production efficiency.
(3) Equip with the air expansion shaft, the winding and rewinding rolls become much more stable.
| Quantity: | |
|---|---|
JX-500-2CAR

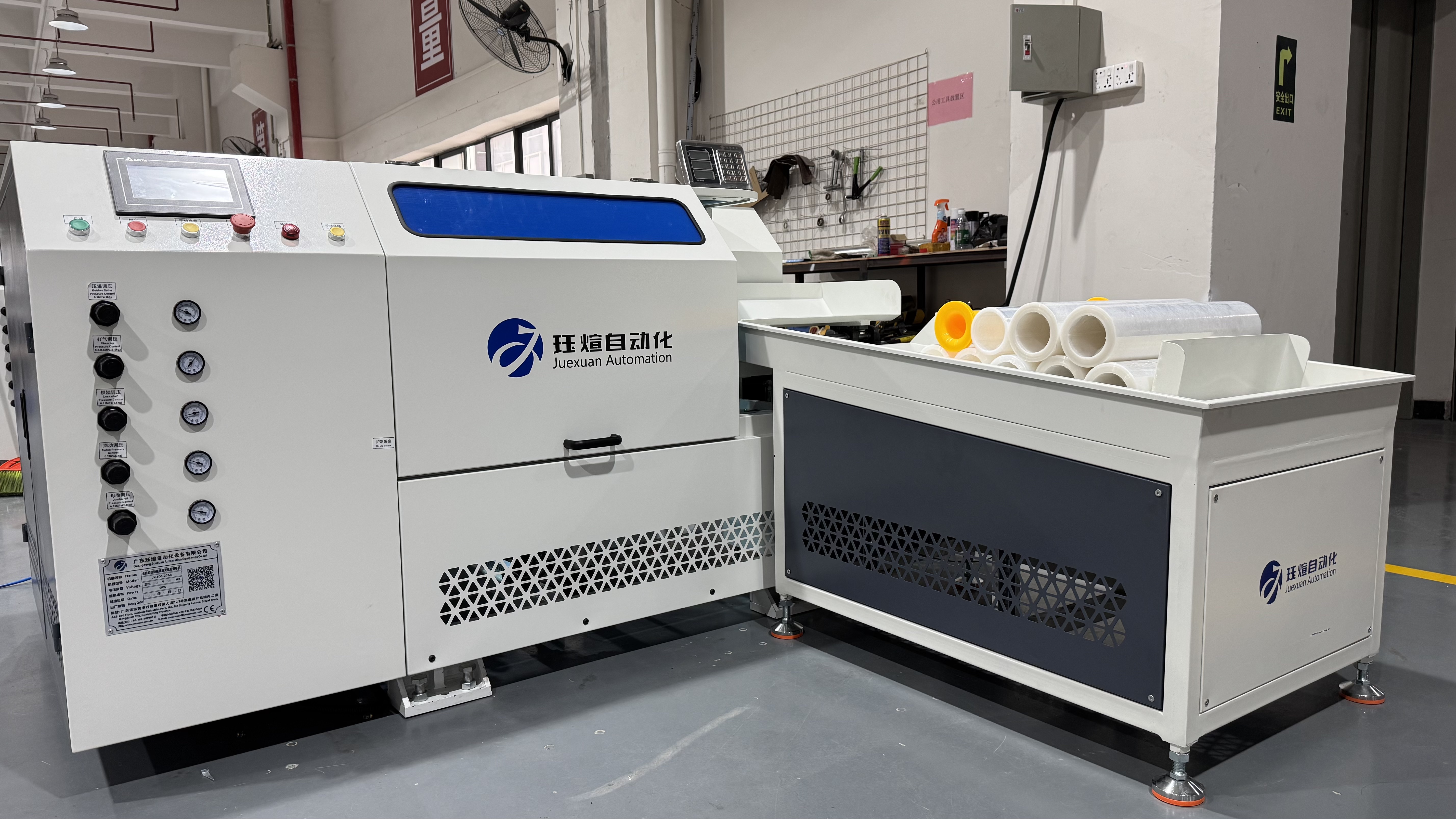

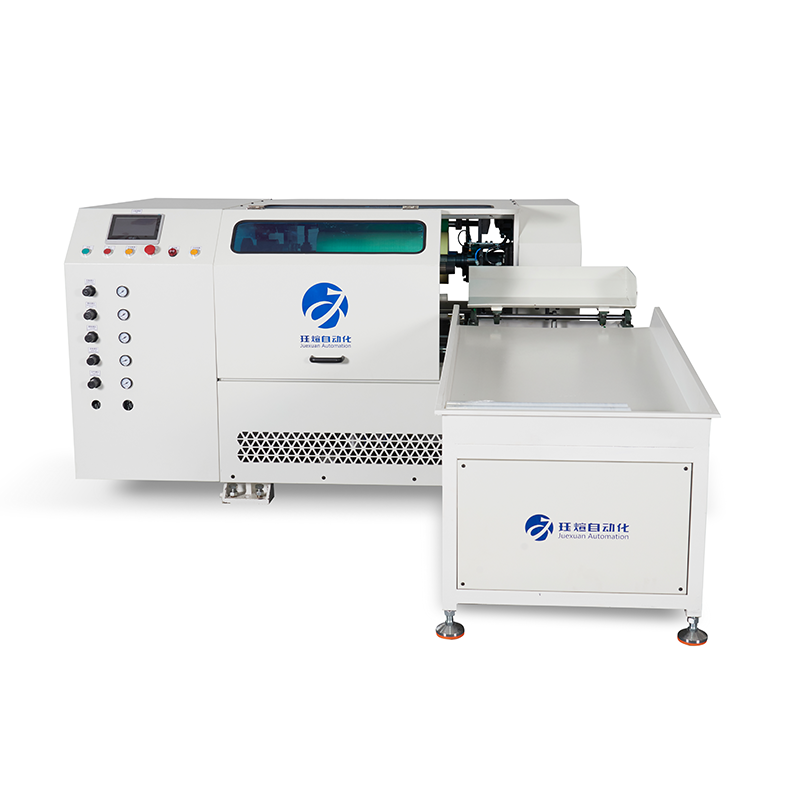

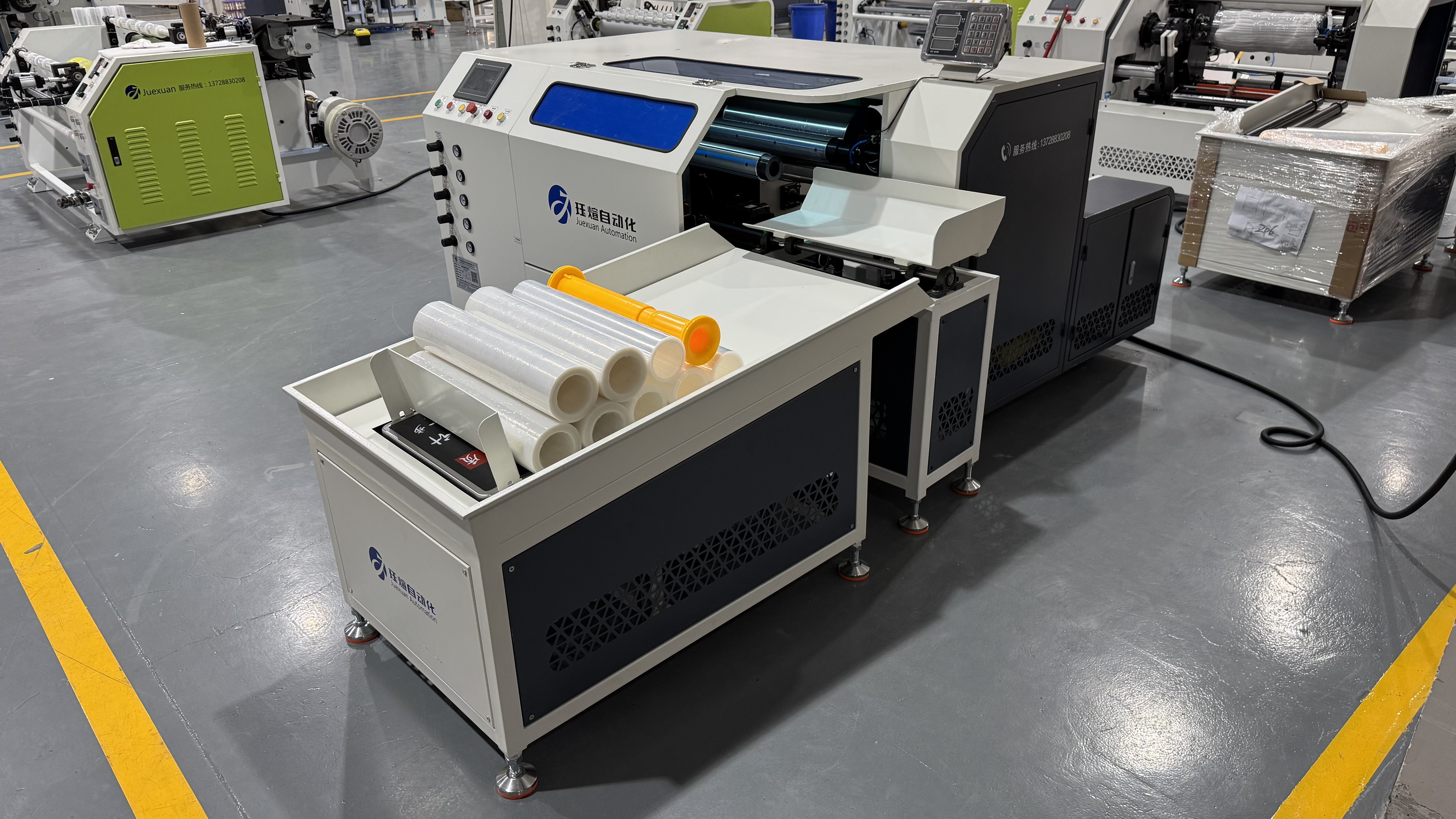

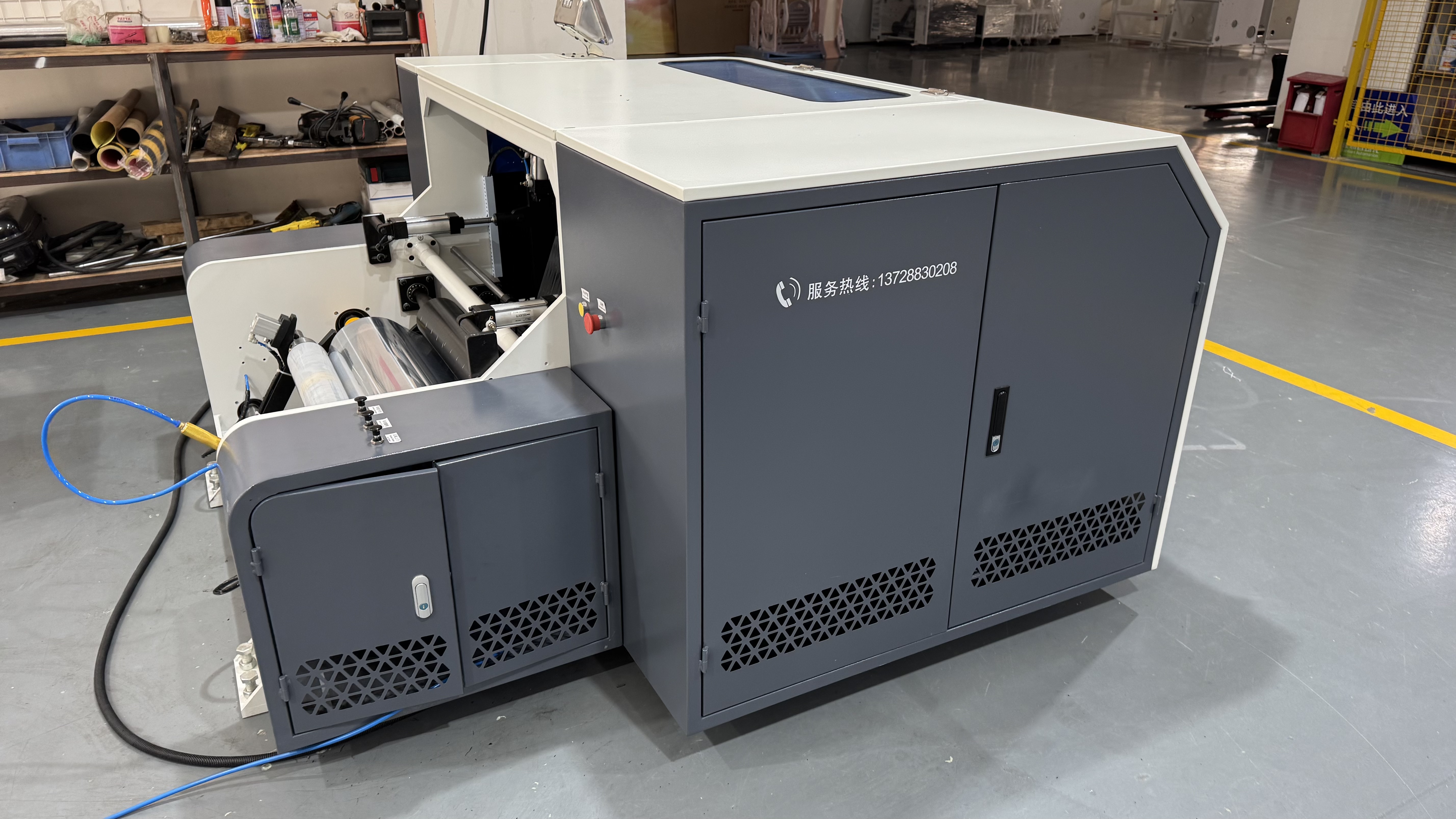

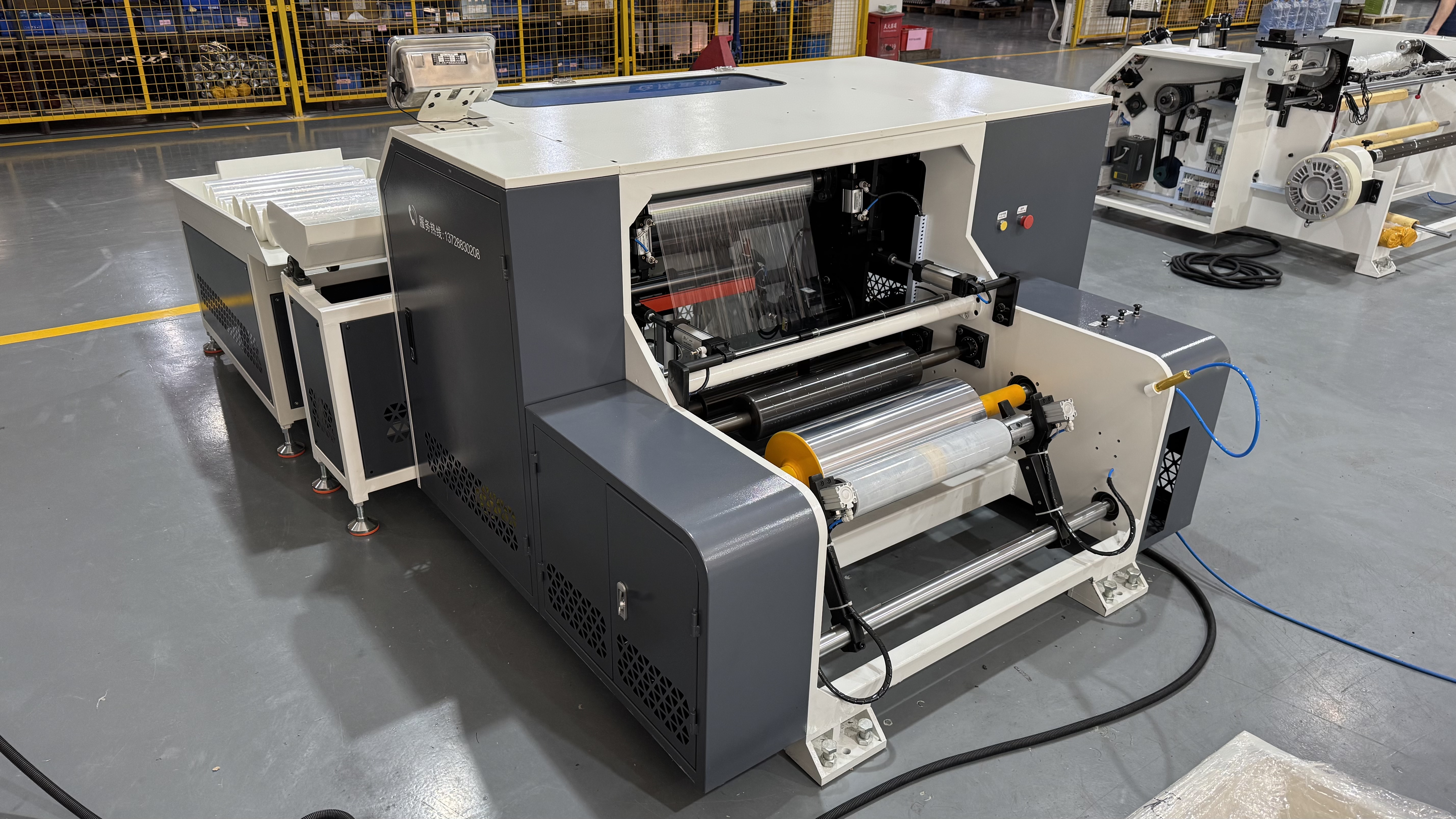

The JX-500-2CAR Fully Automatic Coreless Two-Shafts Stretch Film Rewinding Machine represents the future of sustainable packaging equipment. As a pioneering coreless rewinding machine, it eliminates the need for paper cores, aligning with global environmental protection and sustainable development trends. Designed by Juexuan Automation, this two-shafts rewinding machine delivers an impressive daily output of 3000KG (12h) and has been trusted by customers in Mexico, Thailand, Saudi Arabia, Turkey, the United States, and other countries. Combining full automation, precision control, and eco-friendly design, it’s the perfect choice for businesses seeking high productivity, cost savings, and environmental responsibility.
| Model Number | JX-500-2CAR |
| Width of the film | 300-500mm |
| Sub-roll Core | 50/76mm |
| Sub-roll Diameter (max) | 200mm |
| Mechanical Design Line Speed | 1000m/min |
| Servo system | 2.9 KW × 2 |
| Mother roll diameter (max) | 500mm |
| Width of the mother roll | 300-500mm |
| Daily Output | 3000KG(12h) |
| Overall Size(L*W*H)(CM) | 1920×1800×1100 |
| Weigh | 1500 Kg |
The coreless technology eliminates paper core waste, reducing material costs and environmental impact. This automatic tubeless rewinding machine aligns with sustainable development goals, making it a preferred choice for eco-conscious businesses.
Equipped with two independent shafts, the machine enables parallel rewinding—doubling production efficiency compared to single-station models. While one shaft completes a sub-roll, the other continues working, minimizing downtime.
The integrated 2.9KW×2 servo system ensures precise speed and tension control. This servo-controlled rewinding machine delivers consistent sub-roll quality, even at high line speeds of 1000m/min.

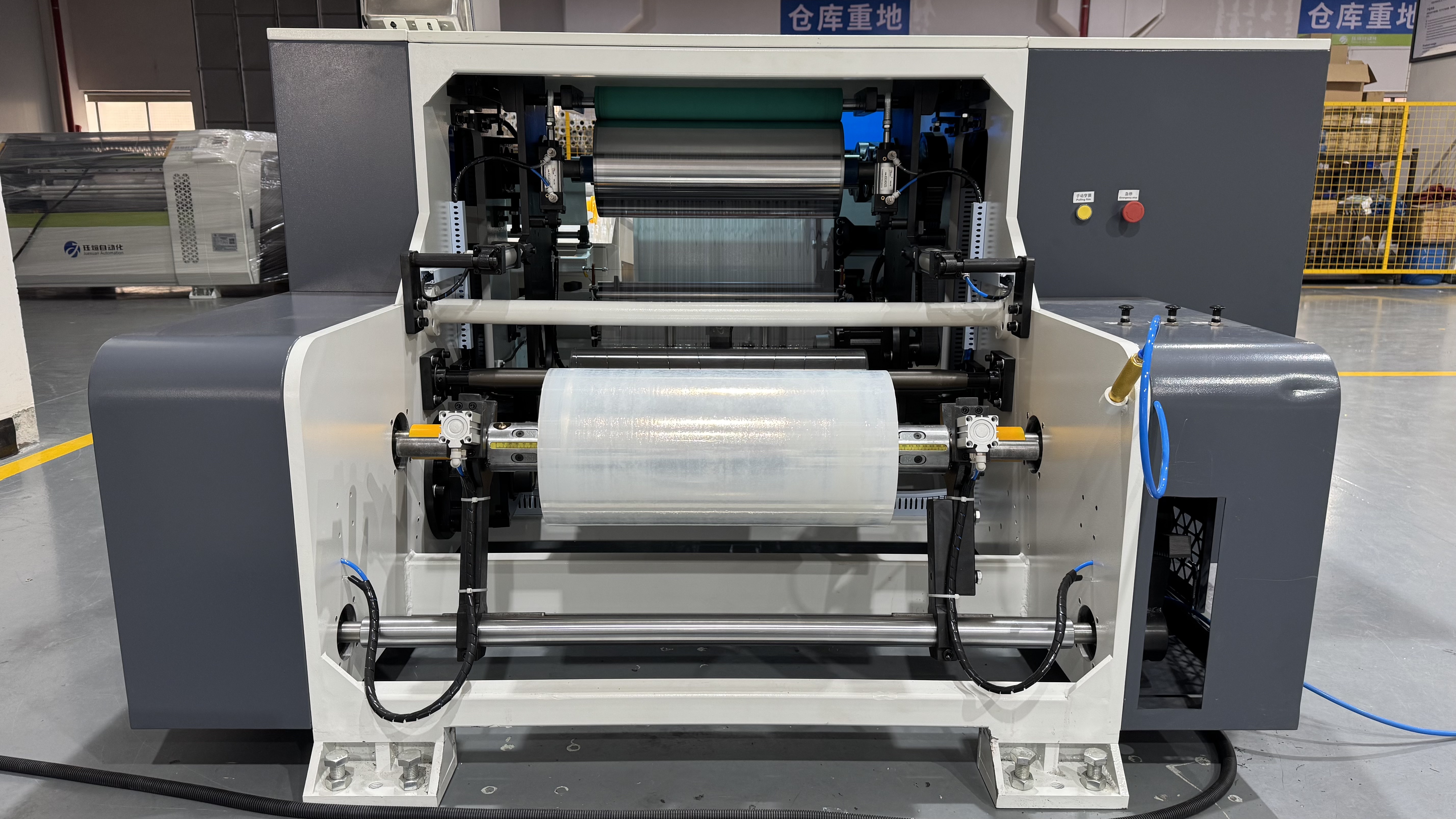

The air expansion shaft design enhances winding and rewinding stability, preventing film slippage and ensuring uniform tension. This feature is critical for maintaining film integrity and sub-roll consistency.
The machine supports a film width of 300-500mm and a maximum mother roll diameter of 500mm, compatible with most industrial stretch film rolls. The maximum sub-roll diameter reaches 200mm, offering larger capacity than many coreless alternatives. With an overall size of 1920×1800×1100cm and a weight of 1500KG, it balances high performance with manageable workshop space requirements.
From automatic film loading and breaking to automatic roll changing and finished product collection, every step is fully automated. This eliminates manual intervention, reduces labor costs, and ensures consistent production efficiency.
The dual 2.9KW servo motors provide powerful, precise control while optimizing energy consumption. Unlike traditional motors, servo systems adjust power output based on demand, reducing electricity costs during long-term operation.
Constructed with high-quality materials, the machine is built to withstand continuous 12-hour operation. The air expansion shaft and servo system require minimal maintenance, ensuring long service life and low downtime.
With a daily output of 3000KG (12h), this high-output rewinding machine outperforms most coreless and single-shaft models, meeting the demands of large-scale production.
Coreless design reduces paper core costs and waste disposal fees. Over time, this translates to significant savings while supporting environmental sustainability.
The servo system and air expansion shaft work together to deliver consistent tension and speed control. Sub-rolls are uniform in diameter and quality, reducing product waste.
Despite its advanced features, the machine is easy to operate with a user-friendly control panel. Automatic functions minimize training requirements, and the dual-shaft design simplifies workflow management.
Engineered to meet international quality and safety standards, the machine is suitable for export to global markets. It complies with environmental regulations, making it a viable choice for businesses operating in strict regulatory environments.
Juexuan Automation is a professional coreless rewinding machine manufacturer with years of experience in the packaging equipment industry. The JX-500-2CAR undergoes rigorous testing, including performance, durability, environmental, and safety assessments, to ensure reliability and quality. We provide comprehensive after-sales service, including technical support, spare parts supply, and on-site maintenance. Our global customer network and 24/7 service hotline ensure prompt assistance whenever you need it. With a track record of exporting to over 10 countries, we stand behind our products with confidence.
Coreless design reduces material costs (no paper cores), minimizes waste, and aligns with sustainable development trends. It also simplifies recycling of leftover film, further reducing environmental impact.
Yes, it’s compatible with most stretch film thicknesses used in industrial packaging. The servo system and air expansion shaft adjust to different film properties, ensuring stable rewinding.
Dual shafts enable parallel operation—one shaft produces sub-rolls while the other prepares for the next cycle. This eliminates downtime between roll changes, boosting overall productivity.
Absolutely. We offer multilingual technical support via phone, email, and video call. For complex issues, we can arrange on-site service with our global partner network.
Lead time typically ranges from 30-45 days, depending on production schedules and shipping requirements. We prioritize urgent orders and can adjust timelines to meet your needs.
