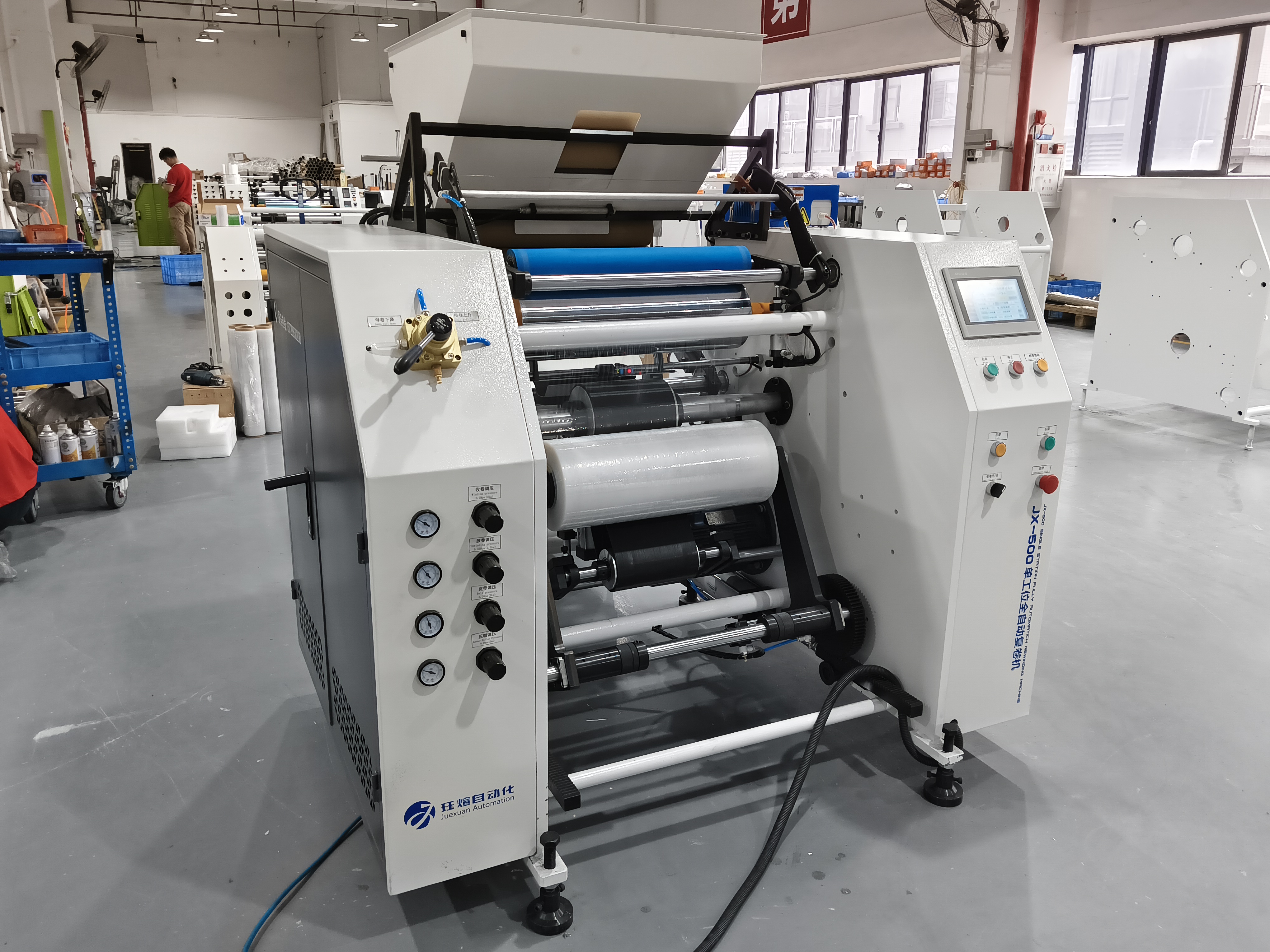

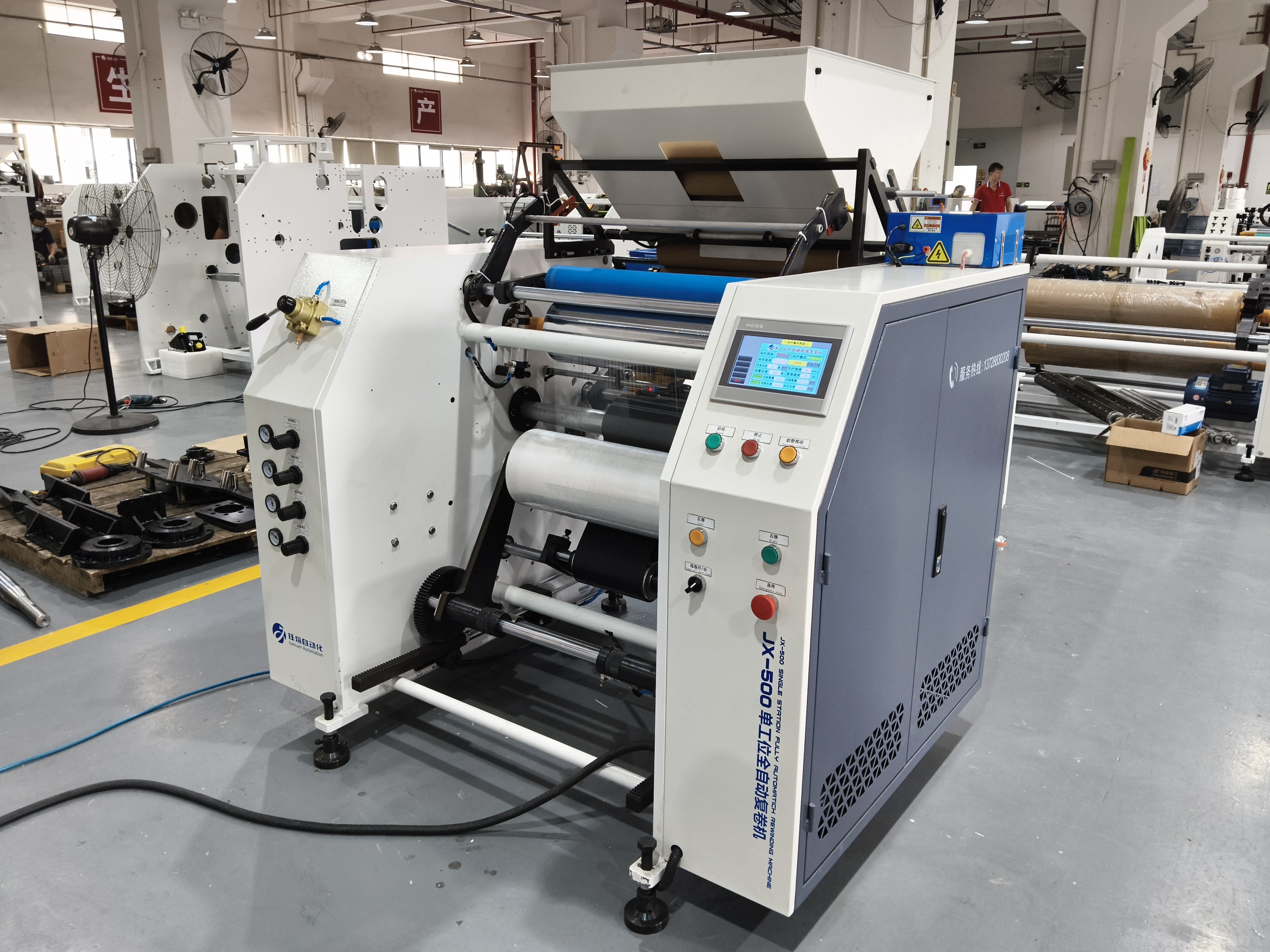

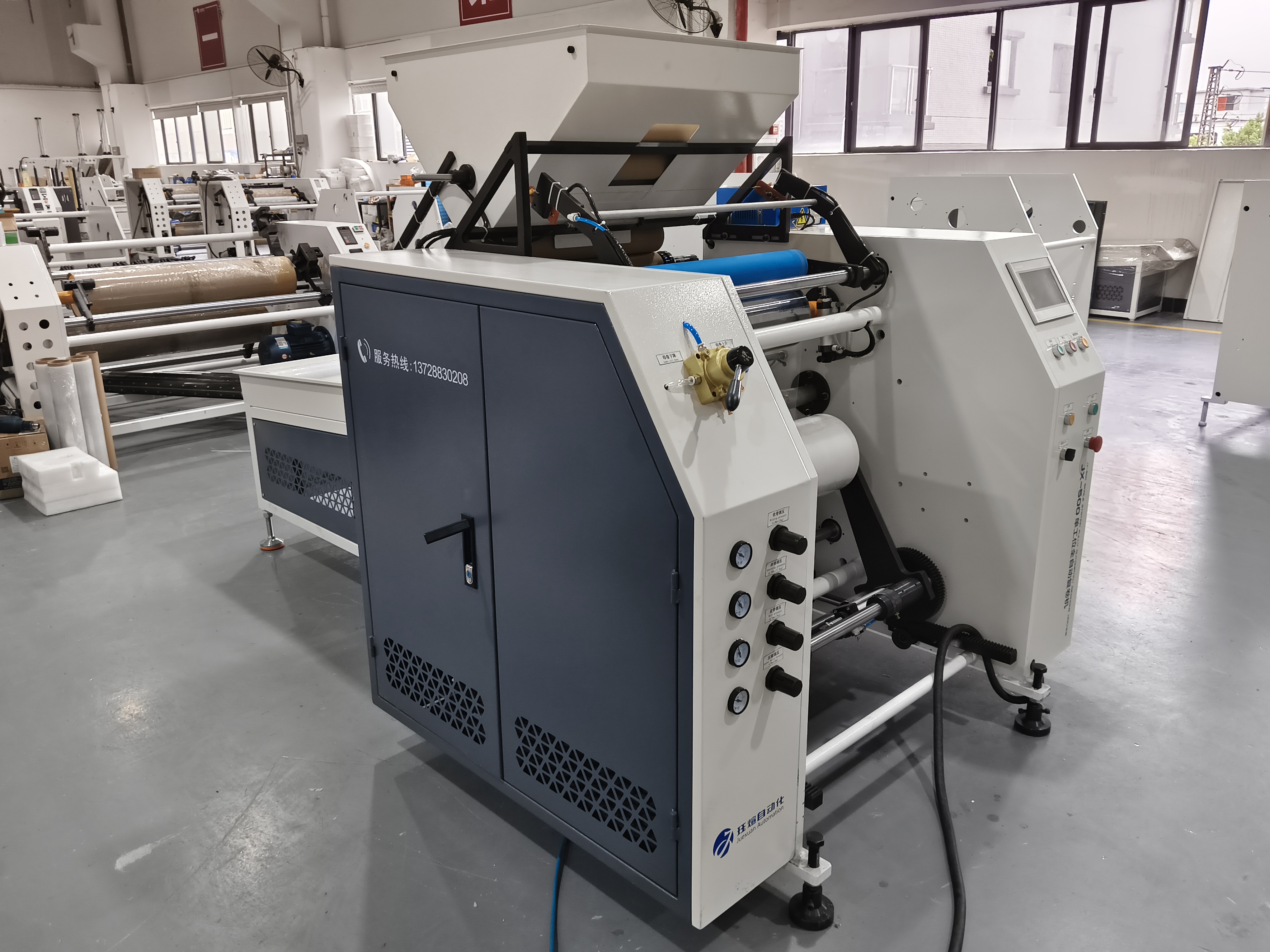

This is a fully automatic stretch film rewinding machine. This machine is sold in bulk to the Middle East and Latin America. It looks not so large, but the output can up to 2,000 Kg per day (12 hours).
(1) Automatic loading and the paper tubes.
(2) Automatic loading and cutting the stretch film.

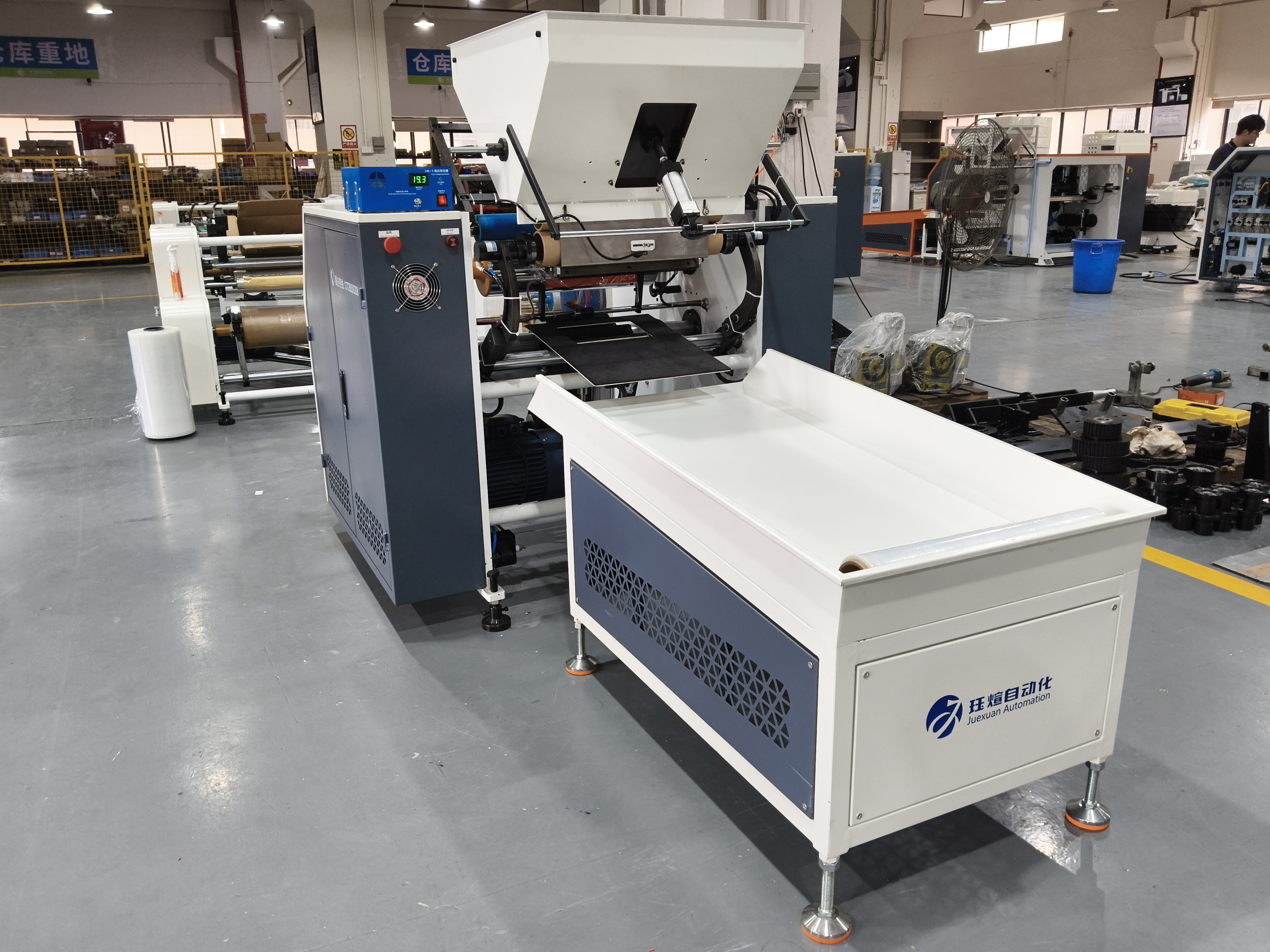

(3) Equipped with finished products collecting platform.
(4) The inner diameter of the tube core of standard version is 50/76mm, 38mm can be avalibale but it's customised.
(5) Equipped with conveyor belt can achieve 1 worker manage at least 3 sets this machine, help save the cost and improve the production efficiency.
| Quantity: | |
|---|---|
JX-500-AR

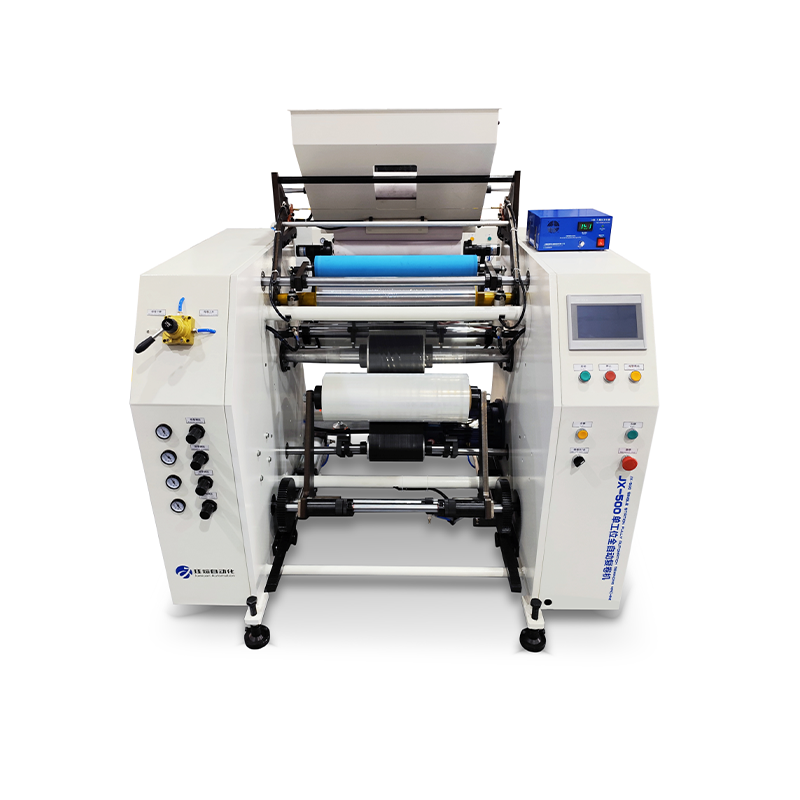

The JX-500-AR Fully Automatic Stretch Film Single Station Rewinding Machine is a high-performance packaging equipment engineered for modern industrial production. As a leading stretch film rewinding machine manufacturer, Juexuan Automation has designed this model to meet the bulk production needs of businesses in the Middle East, Latin America, and beyond. This compact yet powerful automatic rewinding machine specializes in processing PE packaging film, delivering a remarkable daily output of 2000KG within 12 working hours—making it an ideal choice for packaging factories, logistics companies, and film production facilities seeking efficiency and reliability. Whether you’re handling large rolls of stretch film or require consistent sub-rolls for end-user applications, this single-station rewinding machine combines automation, flexibility, and durability to streamline your workflow.
| Model Number | JX-500-AR |
| Width of the film | 300-500mm |
| Sub-roll Core | 38/50/76mm |
| Sub-roll Diameter (max) | 150mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 4 KW |
| Mother roll diameter (max) | 500mm |
| Width of the mother roll | 300-500mm |
| Daily Output | 2000KG(12h) |
| Overall Size(L*W*H)(CM) | 1400×1500×1520 |
| Weigh | 650 Kg |
Say goodbye to tedious manual work: this machine features automatic film loading, automatic paper tube feeding, and automatic film cutting—three core functions that minimize human intervention. From raw material input to semi-finished product output, every key step is automated, reducing error rates and boosting overall productivity.

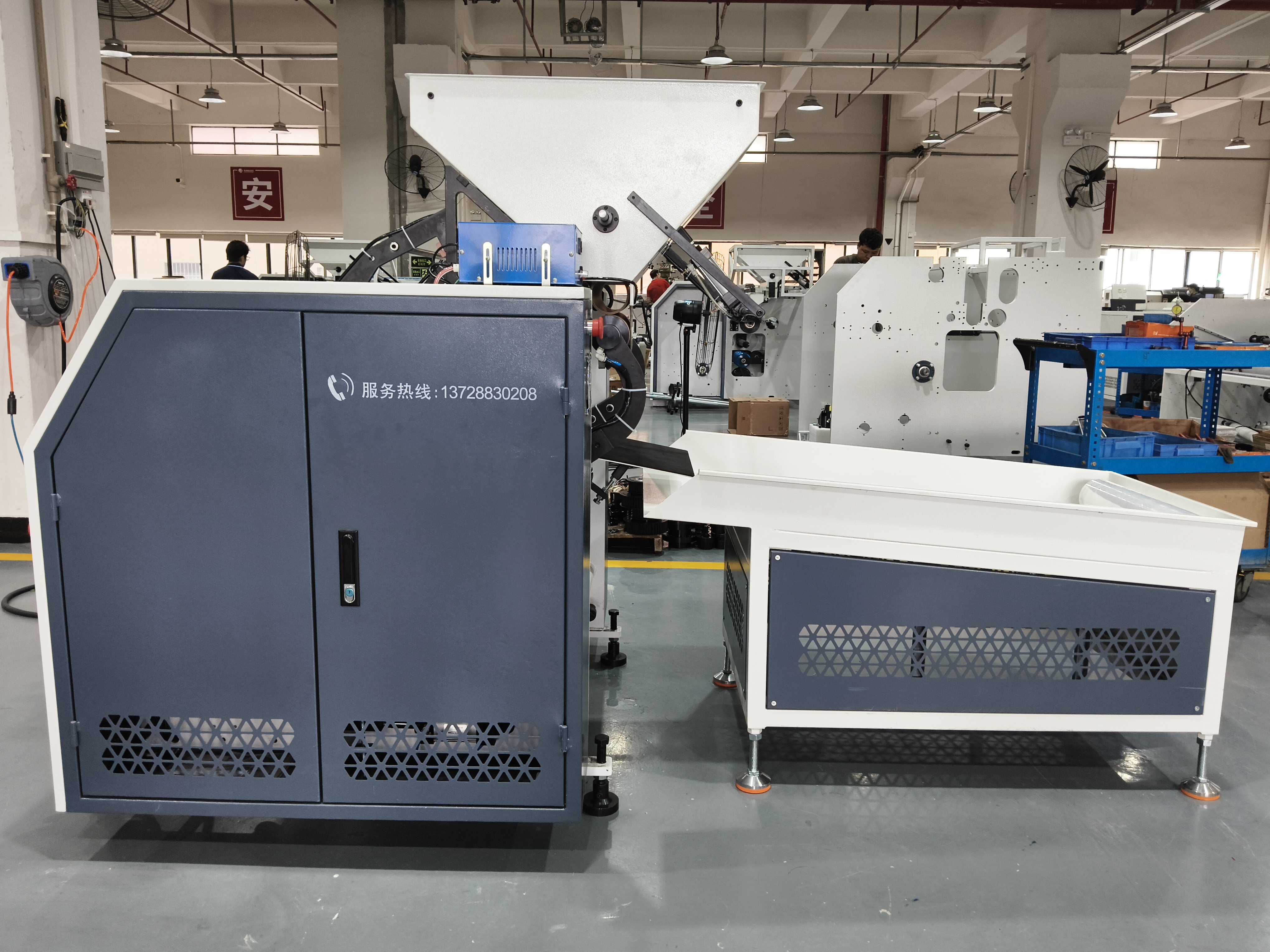

Equipped with a dedicated conveyor belt, the JX-500-AR allows 1 worker to manage at least 3 machines simultaneously. This labor-saving design directly cuts personnel costs while maximizing production throughput, a critical advantage for businesses scaling their operations.
Flexibility is at the heart of this packaging film rewinding machine. It supports standard sub-roll core sizes of 50mm and 76mm, and offers a customized 38mm core option to match specific packaging requirements. Whether you’re producing small rolls for retail use or medium rolls for industrial packaging, this machine adapts to your needs.
With a film width range of 300-500mm and a maximum mother roll diameter of 500mm, the JX-500-AR handles most common stretch film sizes on the market. Its mechanical design line speed reaches 1000m/min, ensuring fast and efficient rewinding without compromising film quality. The maximum sub-roll diameter is 150mm, striking a balance between portability and material capacity.
Weighing 650KG and boasting an overall size of 1400×1500×1520cm, this machine is compact enough to fit in most workshops while maintaining structural stability. The 4KW motor with frequency conversion technology ensures smooth operation and energy efficiency, reducing long-term running costs.

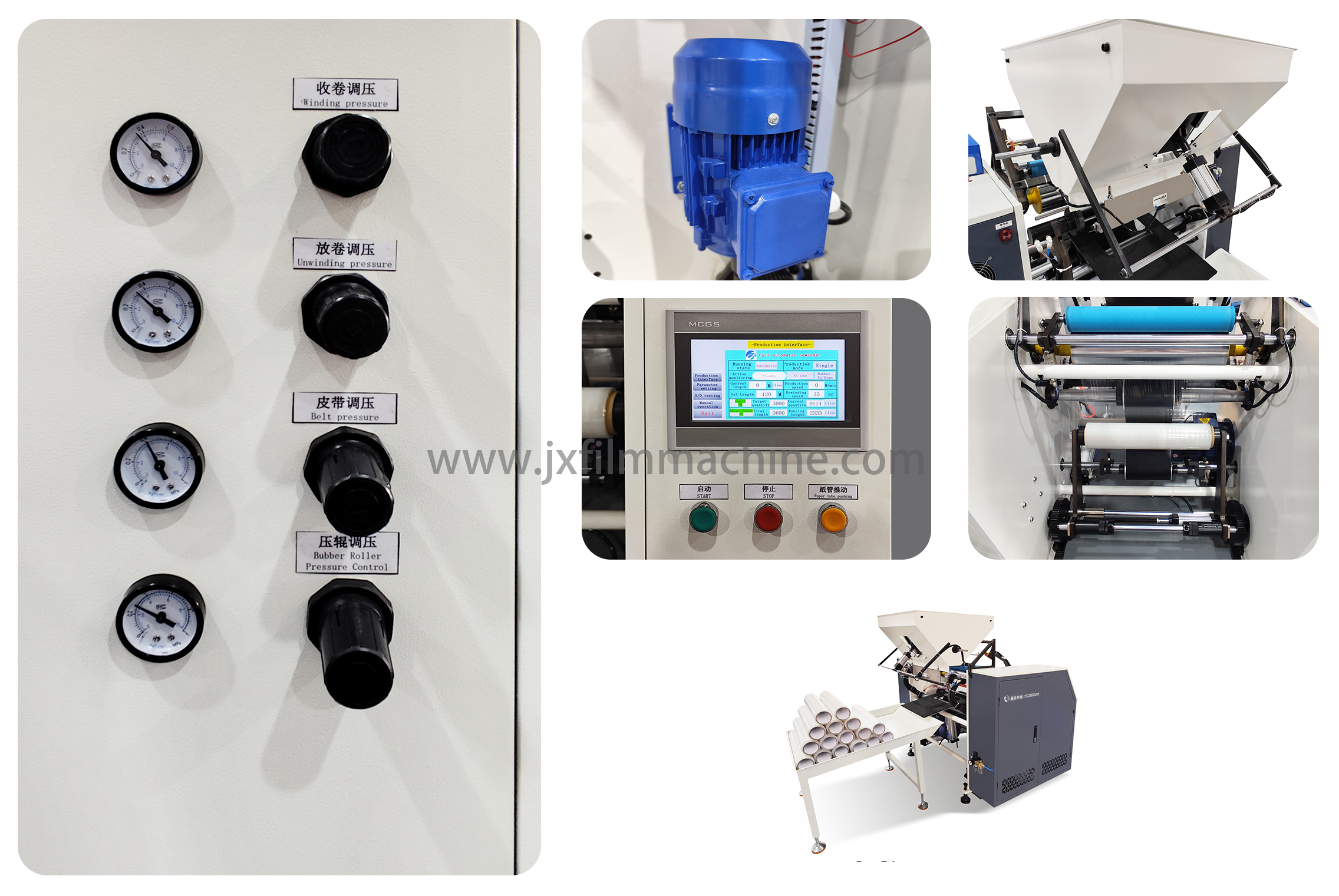

The integrated finished products collecting platform keeps sub-rolls organized, eliminating messy workspaces and simplifying post-production handling. Pressure control systems—including winding pressure, unwinding pressure, and belt pressure—ensure consistent tension during rewinding, preventing film wrinkles or damage.
With a daily output of 2000KG (12h), this high-efficiency rewinding machine outperforms manual or semi-automatic alternatives, helping businesses meet tight production deadlines.
Automation and labor-saving design reduce both labor and operational costs. The frequency conversion motor optimizes energy consumption, while the durable build minimizes maintenance expenses.
Juexuan Automation’s rigorous manufacturing standards ensure the machine operates stably even under long-hour continuous production. The pressure control systems and robust mechanical structure guarantee consistent sub-roll quality.
Intuitive controls and automatic functions make the machine accessible to operators with minimal training. Routine maintenance is straightforward, reducing downtime and keeping production on track.
As a professional stretch film rewinding machine manufacturer, we prioritize quality at every stage. The JX-500-AR undergoes strict factory testing, including performance, durability, and safety inspections, before delivery. We offer comprehensive after-sales support, including technical guidance, spare parts supply, and on-site maintenance via our 24/7 service hotline. With years of experience exporting to global markets, we understand international quality standards and ensure our products meet or exceed customer expectations.
This machine is optimized for stretch film, particularly PE packaging film—the most widely used material in industrial and commercial packaging.
Yes, the maximum sub-roll diameter is 150mm, and you can adjust it within a reasonable range to match your specific packaging needs.
Absolutely. Its compact size, easy operation, and scalable labor efficiency make it ideal for both small workshops and large-scale production facilities.
Installation is straightforward, and we provide detailed instructions. Most customers complete setup within 1-2 days with basic technical support.
