Views: 0 Author: Site Editor Publish Time: 2026-05-15 Origin: Site
You need to focus on what matters most when picking a stretch film slitter. Matching the machine features to your production needs and material types helps you avoid costly mistakes. This guide shows you how to make smart choices. You get clear steps that help you find the right fit. Guangdong Juexuan Automation Equipment Co.,Ltd. offers machines that suit many requirements. Whether you buy for the first time or have experience, you can use this guide to get results.
Figure out what your business needs before you pick a stretch film slitter. Make sure the machine’s features match your goals and the materials you use.
Think about how much film you need to make each day. Bigger companies need machines that can work faster and handle more film.
Pick the right winding method for your stretch film. Surface winding works best for sticky films. Core winding is better for films that are not sticky.
Check the size and strength of your loads. Make sure the slitter makes rolls that fit your wrapping machine. The rolls should also keep your packages safe.
Find slitting machines with automation features. Automated machines help you work faster, need less workers, and give you the same results every time.
Picking the right stretch film slitter starts with knowing what your business needs. You must match the machine to your goals, the materials you use, and how heavy your loads are. This guide explains each part so you can make smart choices and make your packaging better.
Think about how much stretch film you use every day. The amount you need decides which machine is best for your workplace. Bigger businesses need machines that can work faster and handle more film. The table below shows how much film each machine can process and what size space you need:

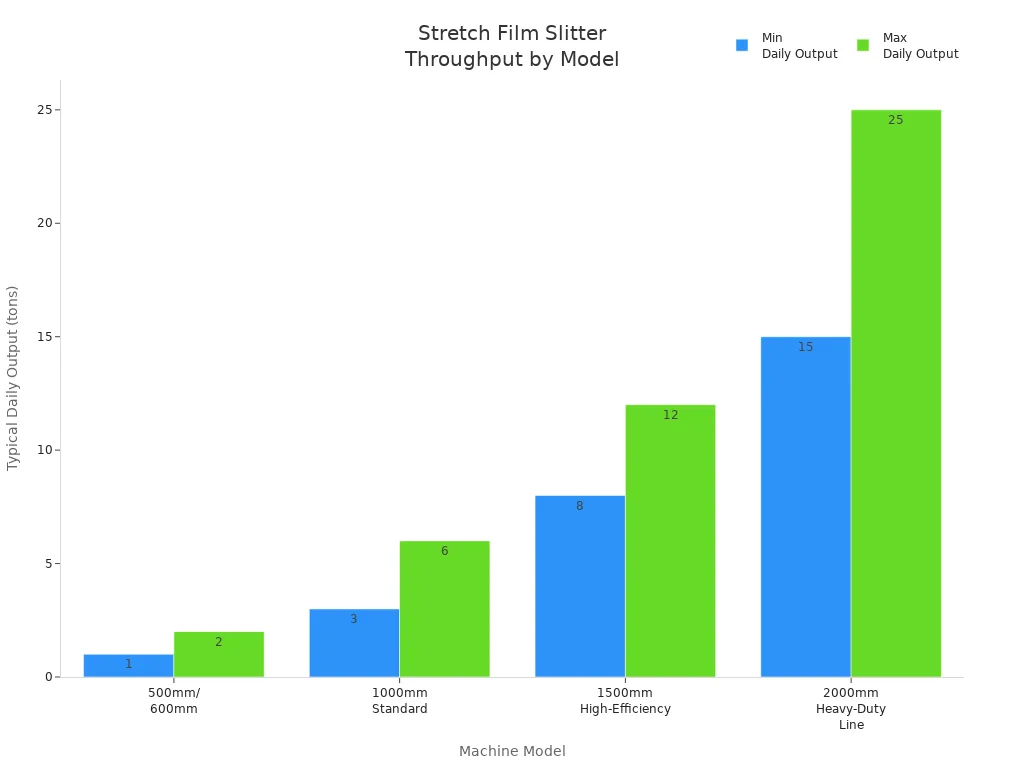

Machine Model | Die Width | Typical Daily Output | Recommended Facility Dimensions (L x W x H) | Suitable Customer Groups |
|---|---|---|---|---|
500mm / 600mm | 650 mm | 1 - 2 tons | 8m x 4m x 3.5m | Lab R&D, home workshops |
1000mm Standard | 1250 mm | 3 - 6 tons | 12m x 5m x 4m | Startup favorite, high flexibility |
1500mm High-Efficiency | 1750 mm | 8 - 12 tons | 16m x 6m x 4.5m | Regional medium-sized factories |
2000mm Heavy-Duty Line | 2350 mm | 15 - 25 tons | 20m x 8m x 5.5m | Large corporations pursuing efficiency |
Pick a stretch film slitter that matches how much film you use. If your business is big, you need strong machines that can handle large rolls and use materials well. Small businesses may need machines that fit in tight spaces. This guide helps you choose the right machine for your goals.
The kind of stretch film you use changes which machine you need. Adhesive stretch films need surface winding. This method pushes out air and stops mistakes. Non-adhesive films work best with core winding. You must pick the right winding method to keep your packaging strong and avoid problems like uneven tightness.
Surface winding works best for sticky and stretchy materials. It uses friction to make the roll tight and stops issues like 'chrysanthemum cores.' Core winding can make the film too loose, which hurts the quality of your wrapping.
Check what thickness your stretch film slitter can handle. Most four-axis machines work with films from 0.012mm to 0.05mm. Common stretch film thicknesses are:
Ordinary stretch film: 13μm - 22μm
Machine-used stretch winding film: 20μm - 35μm
Standard films: 15-25 microns thick
Best method: three-layer co-extrusion for good value
Match your stretch film rewinder to the material and thickness. This step keeps your packaging strong and steady.
Think about how big and stable your palletized load is. The stretch film slitter must make rolls that fit your stretch wrapping machine and keep your packaging safe. Big loads need wider rolls and stronger film. Small loads may need thinner film and more careful slitting.
Stable loads help stop shifting when moving. Pick a stretch film rewinder that makes rolls with the right tightness and width. This guide shows you how to match your machine to your load size and packaging needs.
Tip: Always check if your stretch film slitter, stretch wrap machine, and stretch wrapping machine work well together. This step keeps your packaging smooth and safe for every palletized load.
You make your packaging better when you check production volume, material type, film thickness, and load stability. This guide helps you pick the best stretch film slitter for your business and makes sure your wrapping meets industry rules.
Picking the right slitting rewinding machine makes packaging easier. You should know the main types of stretch wrappers. Each type works best for different jobs. This part tells you about manual and automatic slitting. It also explains surface slitter rewinder uses and special slitting machines.
Manual slitting machines need you to do most of the work. You set them up, load the film, and watch the process. Automatic slitting rewinding machines use smart controls and sensors. These machines do most jobs by themselves.
Here is a table that shows the main differences:
Feature | Manual Slitting Machines | Automatic Slitting Machines |
|---|---|---|
Ease of Use & Training | Simple operation, minimal training | Needs training for both operational and electrical skills |
Maintenance | Minimal and inexpensive maintenance | Complex maintenance, skilled technicians needed |
Labor Intensity | Labor-intensive operation | Reduced labor requirement |
Output Consistency | Prone to human error, inconsistent output | Precise and consistent output |
Efficiency | Limited automation, potential inefficiencies | Streamlined processes, increased efficiency |
Production Speed | Slower due to manual handling | High rates, up to 800m/min |
Downtime | Frequent changeovers, more dead time | Automatic features minimize downtime |
Manual machines are slower and need more stops. People can make mistakes and waste film. Automatic machines run fast and stop less. They use servo drive systems for better rolls and less waste.
Tip: If you want more rolls and less work, pick automatic stretch wrapper systems or fully automatic stretch wrap systems.
Surface slitter rewinder machines are good for sticky stretch films. These machines use friction to wind film tight. This helps you avoid loose rolls or bad tension. Surface slitting keeps your packaging neat and strong.
You use surface slitter rewinder machines for:
Adhesive stretch films
Multi-layer films
Films that need tight winding
Surface slitting rewinding machines help you make rolls for many stretch wrappers. You get better rolls and fewer problems.
Specialty slitting machines work with special films or jobs. You use these machines for films with odd thickness or width. Some stretch film slitting machines cut very thin films. Others work with wide rolls for big loads.
You may need a stretch film rewinder for custom packaging. Specialty machines help you match your slitting to your needs. You can use them for special jobs or when you need rolls for automatic stretch wrapper systems.
Note: Always check if your slitting rewinding machine matches your film and goals. You get better results when you pick the right machine.
You make your packaging better when you choose the right slitting rewinding machine. You can pick manual, automatic, surface, or specialty machines. Each type helps you with different stretch wrappers and stretch film rewinder jobs.
You need to know the important details to pick the right stretch film slitter. This guide shows you which features matter most for slitting rewinding machines. These details help you match your stretch film rewinder to your packaging needs. You can also make your production faster and better.
Slitting speed tells you how quickly you make rolls. It also shows how many rolls you can make each day. High-speed slitting rewinding machines help you finish your work faster. The table below shows how speed and price change with different machines:

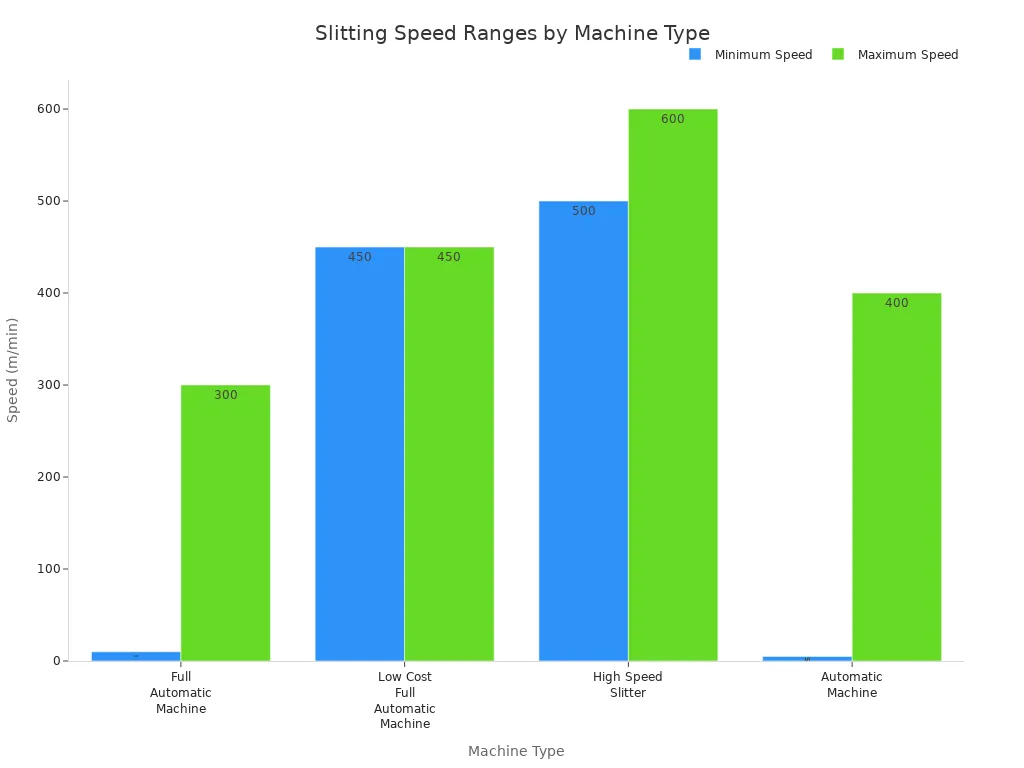

Machine Type | Speed Range (m/min) | Price Range |
|---|---|---|
Full Automatic Machine | 10-300 | $7,000 - $8,000 |
Low Cost Full Automatic | 450 | $24,305 - $25,000 |
High Speed Slitter | 500-600 | $7,900 - $8,000 |
Automatic Machine | 5-400 | $9,000 - $10,000 |
Machines with faster slitting speeds help you get more rolls. High-speed stretch film slitter models cut down on waiting time during roll changes. Automatic roll change systems save time and keep your work going. New technology keeps rolls the same and cuts down on waste.
Tip: Smart slitting machines with automatic roll change and online checking help you work faster. You spend less time changing rolls and get more rolls that look the same.
Feature | Traditional Method | Automatic Method | Time Saved |
|---|---|---|---|
Roll Change Time | 3-5 minutes | 15-30 seconds | 2 hours/day |
Roll Changes per Day | 40 | 40 | N/A |
This guide helps you compare slitting speed and yield rates. You can use it to pick a stretch film slitter that fits your goals.
Automation makes your stretch film slitter easier to use. Modern slitting rewinding machines use PLC-based systems to control slitting and rewinding. These systems check tension and blade position as you work. You get rolls that are even and smooth.
Automatic controls let you run your stretch film rewinder with less effort. The machine handles tension, blade position, and roll winding. You get rolls that meet strict rules and keep your packaging strong. Automation also cuts down on waste and makes your work faster.
Feature | Benefit |
|---|---|
Smart Film Tension Control | Changes film tension for safe transport and storage. This lowers the chance of tearing. |
Multilevel Variable Controls | Lets you control many wrapping settings for better results. |
Cloud-Based Remote Monitoring | Gives you real-time data for fixing problems and making your machine work better. |
Note: Automation in stretch film slitter models makes them work with many types of stretch wrapping and packaging jobs.
This guide shows you how automation and controls make your slitting rewinding machine work better.
Accuracy is important when you want rolls that fit your stretch wrapping machine. Stretch film slitter models must meet tight rules for core compatibility. This stops problems like loose rolls or uneven winding.
Tolerance Type | Value |
|---|---|
Standard Tolerance | ±0.2mm |
High-Precision | ±0.1mm |
You get rolls that look the same when your stretch film rewinder meets these rules. Good stretch wrap machines need rolls with exact sizes. This guide helps you check accuracy and core compatibility before you buy.
Tip: Always match your stretch film slitter to your stretch wrapping machine. This keeps your packaging safe and your work smooth.
Machine size decides where you put your stretch film slitter. You must check your space before picking a model. Slitting rewinding machines come in different sizes. Some fit small rooms. Others need big factory floors.
This guide helps you compare machine sizes and find the best one for your space. Make sure your stretch film rewinder leaves room for loading, unloading, and fixing. You make your work better and keep your packaging process fast.
Note: Planning for machine size and space helps you avoid slowdowns and keeps your stretch wrapping working well.
You get better results when you focus on slitting speed, automation, accuracy, and machine size. This guide helps you pick the right stretch film slitter for your packaging needs. It also makes sure your machines work well together.
Safety is very important when picking a stretch film slitter. Modern machines have safety features to keep you safe. Emergency stop buttons let you stop the machine fast. Safety guards cover moving parts so accidents do not happen. Many machines have sensors that find jams or unsafe things. These sensors can turn off the machine before someone gets hurt.
A safe stretch film slitter helps you avoid injuries. It keeps your packaging process smooth. You have less downtime and your team feels safe. Using a stretch wrapping machine with good safety features protects your investment. It also helps your production work better.
Tip: Always check if your slitting equipment follows local safety rules. This keeps your workplace safe and your packaging meets industry standards.
A user-friendly design makes your job easier. It helps you get better results. Many stretch film slitting machines use touch screen controls. These controls are easy to use and set up. You can run the machine even if you are new. Training new workers is faster and mistakes happen less.
Easy displays show you important information about slitting and wrapping. Clear menus help you step by step. You spend less time fixing errors. You make more high-quality rolls. This design keeps your packaging steady and your performance high.
Look for these user-friendly features:
Touch screen for quick setup
Simple blade and core changes
Clear alarms and error messages
Easy cleaning and maintenance
A stretch film slitter rewinder machine with these features helps you work faster and safer. You improve efficiency and keep your packaging process smooth. Picking a machine with user-friendly design boosts performance and product quality.
You must trust your supplier when picking a stretch film slitter. Guangdong Juexuan Automation Equipment Co.,Ltd. is well-known in the business. The company gives you machines with high automation and custom options. They help customers all over the world. You can get machines made just for your needs. This works for small shops and big factories. Their knowledge in stretch film slitter rewinder machine technology means you get equipment you can count on.
When you check supplier reputation, look at these things:
Criteria | Description |
|---|---|
Technical Capabilities | Certifications like ISO 9001 and ISO 14001. AI vision inspection keeps defect rates low. |
Production Quality | Thickness tolerance and defect rates show high standards. |
Supply Chain Resilience | Regional warehouses and disaster recovery plans keep supply steady. |
Sustainability Compliance | Recyclability certificates and carbon footprint data prove eco-friendly practices. |
Total Value Partnership | Scorecard weighs cost, risk, and sustainability for best value. |
Tip: A supplier with strong technical skills and worldwide support helps you feel safe when buying a slitting rewinding machine.
After-sales service makes sure you stay happy with your stretch film slitter. You need clear warranty details, quick spare parts, and good technical help. Guangdong Juexuan Automation Equipment Co.,Ltd. gives fast service and remote help. You fix problems quickly and keep your stretch film slitting machine working.
Aspect | Description |
|---|---|
Warranty Terms | Covers both machine and parts for a set period. |
Spare Parts Availability | Critical parts are stocked and easy to order. |
Technical Support | Fast response times and remote help keep downtime low. |
Note: Good after-sales service keeps your investment safe and your stretch film slitter rewinder machine running well.
You need good maintenance and training to get the best from your stretch film slitter. Good programs include:
Training on how to use the machine, pick blades, and install them.
Learning tension control and speed settings.
Troubleshooting with hands-on practice.
Quality checks and inspection routines.
Regular knife checks and replacement.
Machine alignment checks.
Operator training on setup and tension basics.
Knowing how to use and care for the machine.
Understanding special film needs.
Spotting problems early.
You keep your stretch film slitter working well with regular checks and training. You find defects early and fix them before they cause trouble. This helps your stretch film slitting machine last longer and work better.
Callout: Reliable support and maintenance help you stop costly downtime and make your packaging quality better.
Picking the right stretch film slitter can seem hard. This buyer’s guide makes your choice easier. It gives you a short list of what is most important. You can use this checklist to compare machines. It helps you find the best one for your packaging.
You should look at a few main things before you buy a slitting rewinder. The decision matrix below shows what to check. Each thing on the list changes how well your stretch film slitter works every day.
Key Factor | What You Should Check |
|---|---|
Material Type and Thickness | Make sure the machine suits your film and thickness. |
Slitting Speed and Accuracy | Match machine speed to your production volume and accuracy needs. |
Rewinding Diameter and Core Size | Check if the rolls fit your packaging process and equipment. |
Automation Level | Decide if you need features like auto knife positioning or turret rewinding. |
After-Sales Support | Look for reliable service and easy access to spare parts. |
Tip: You make a better choice when you use this matrix. You can avoid mistakes and pick a stretch film slitter that fits your business.
This comparison table helps you as a buyer. It shows how different stretch film slitter models compare. You can see the main features next to each other. This makes it easier to pick a slitting rewinder.
Model Name | Material Range | Speed (m/min) | Automation | Core Size | Support Level |
|---|---|---|---|---|---|
Basic Slitter | Standard | 150 | Manual | 3" | Standard |
Pro Slitter | Wide | 400 | Semi-auto | 3"/6" | Enhanced |
Elite Slitter | All Types | 600 | Full-auto | Custom | Premium |
You should match these features to what you need for packaging. You make a smart choice when you use both the decision matrix and the table. This buyer’s guide gives you easy steps to follow. You can get the best stretch film slitter for your business.
Callout: Always check if your stretch film slitter rewinder machine works with your stretch film slitting machine and packaging process. You save time and money when you use this buyer’s guide.
You get better packaging when your stretch film slitter fits your needs and materials. Using clear steps helps you check important things like how steady the machine is, how well it controls tension, and how good the finished rolls are.

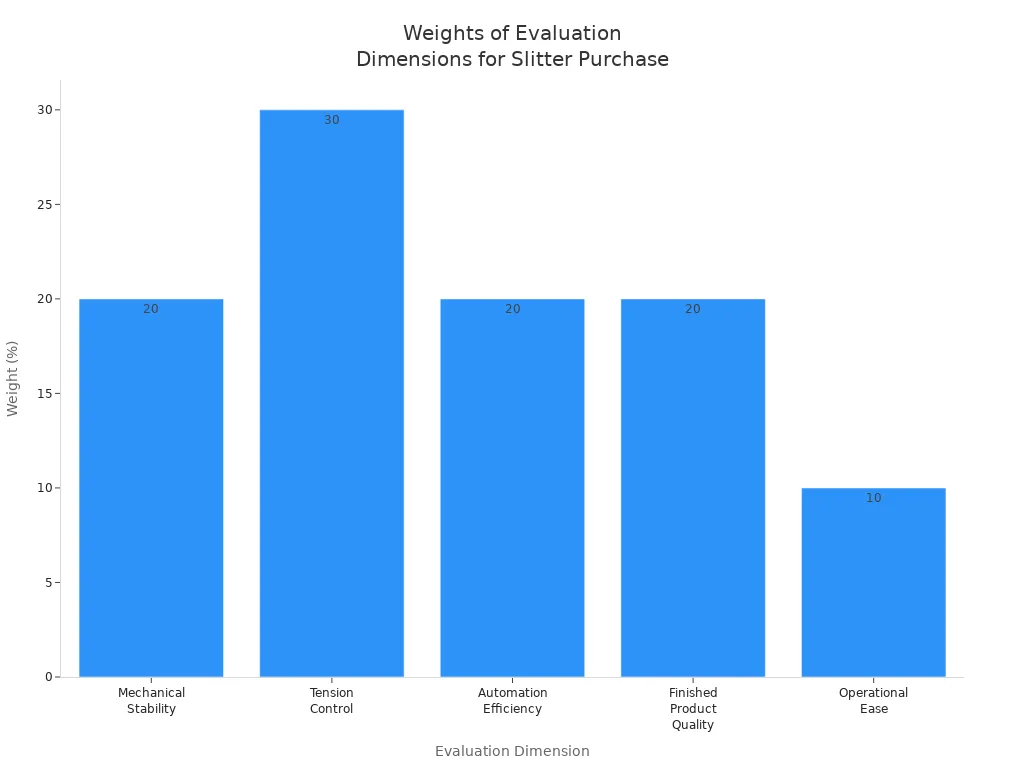

Evaluation Dimension | Test Item | Passing Criteria | Weight |
|---|---|---|---|
Mechanical Stability | 800m/min high-speed operation | Frame shows no vibration, noise < 85dB | 20% |
Tension Control | Taper Tension Test | Roll end face is flat, no misalignment | 30% |
Automation Efficiency | 10 roll changes | 100% success, changeover < 15 seconds | 20% |
Finished Product Quality | Visual Inspection | No bubbles, scratches, uniform hardness | 20% |
Operational Ease | HMI User Experience | Intuitive interface, clear fault alerts | 10% |
You can use a checklist and a comparison table to help you decide. These tools help you look at technical, environmental, and money factors for your stretch film slitter rewinder machine.
Stretch film slitting machines make work faster and waste less.
Automation helps you handle lots of orders and keeps products safe.
Picking the right stretch film slitter helps you get more rolls and spend less.
You get better results and work faster when you choose the best stretch film slitter for your business.
A stretch film slitter cuts big rolls into smaller ones. You use a stretch film slitter rewinder machine to make rolls that fit your packaging. This tool helps you save time and waste less film.
Check how much film you use and how thick it is. Think about the size of your loads. Pick a stretch film slitting machine that matches your material and fits your space. Compare how automatic the machines are and what support you get.
Yes, most stretch film slitter rewinder machines work with many kinds of film. You can use them for sticky, non-sticky, and multi-layer films. Always check the machine specs to make sure they fit your film.
You need to clean the blades and check tension settings. Look for any worn parts. Doing regular maintenance keeps your stretch film slitting machine working well. Follow the supplier’s training and schedule.
Automation helps you work faster and make fewer mistakes. You get rolls that look the same and save on labor costs. An automatic stretch film slitter rewinder machine makes your work better and more efficient.
