This is one of our most advanced machine at present. The entire rewinding and slitting process is fully automatic, truly achieving zero manual labor. One machine with multiple uses, capable of both rewinding and slitting.Minimize the production costs of enterprises to the greatest extent and achieve the maximization of operating profits. Pioneer new technologies in the field of stretch wrap film slitting and promote new development in the industry.
(1) Automatic loading the cores, automatic loading the film and automatic cutting the film.
(2) Four-axis rolls changing, double the efficiency
(3) Support sub-rolls size as 1 inch(25mm) and 1.5 inches(38mm) and other size customized.
(4) Daily output is up to 3,000 Kg per 12 hours.
| Quantity: | |
|---|---|
JX-500-4AS

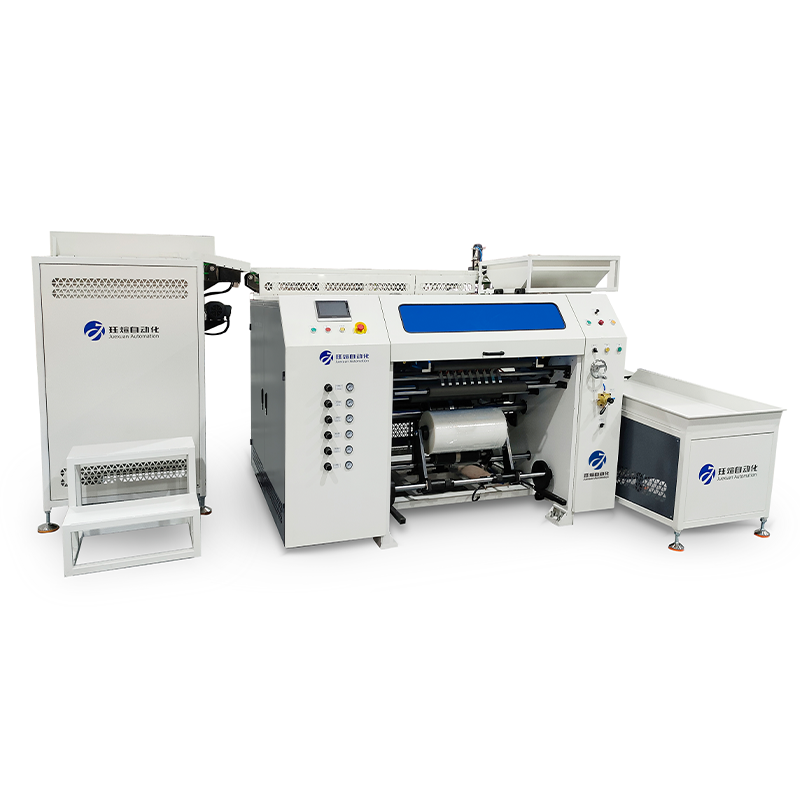

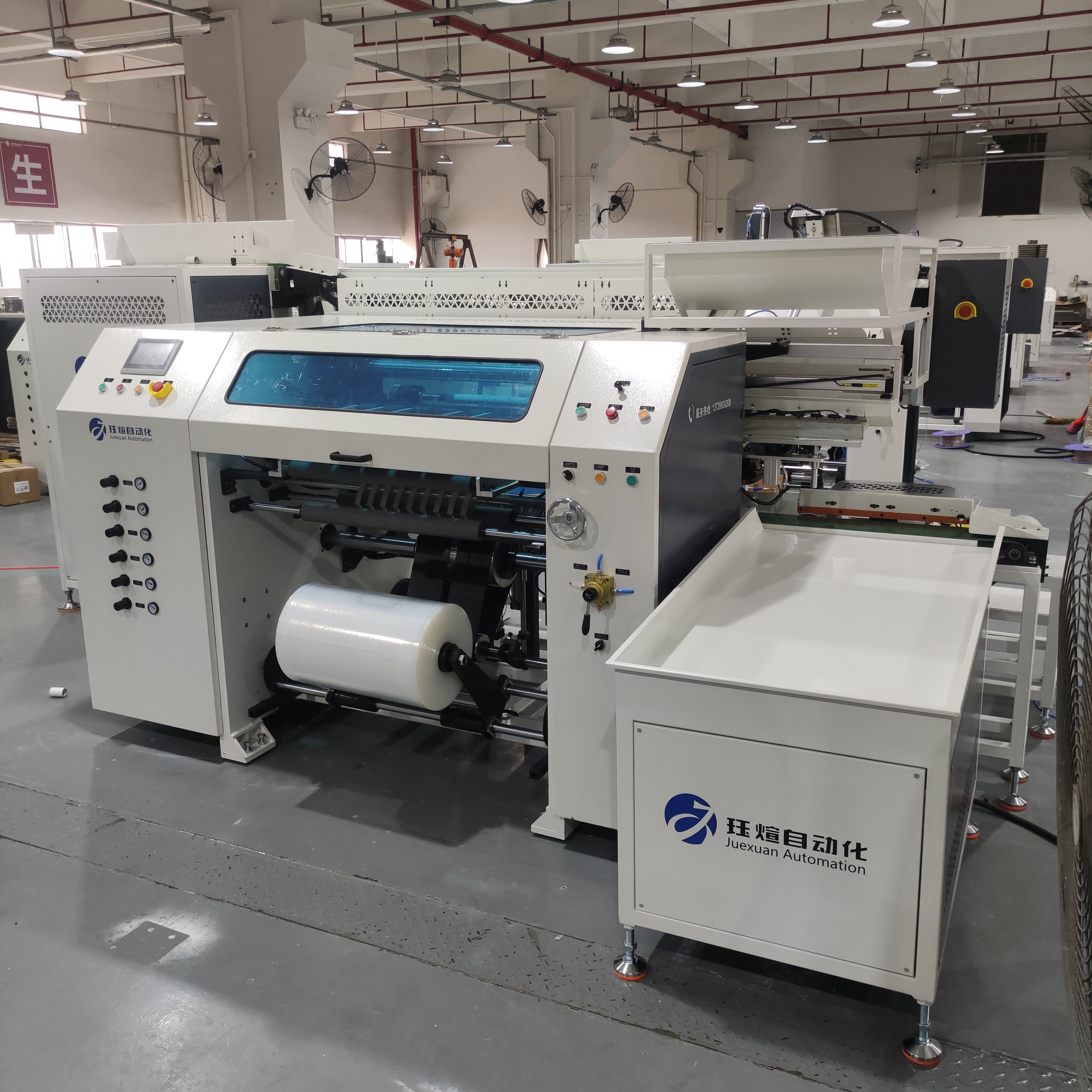

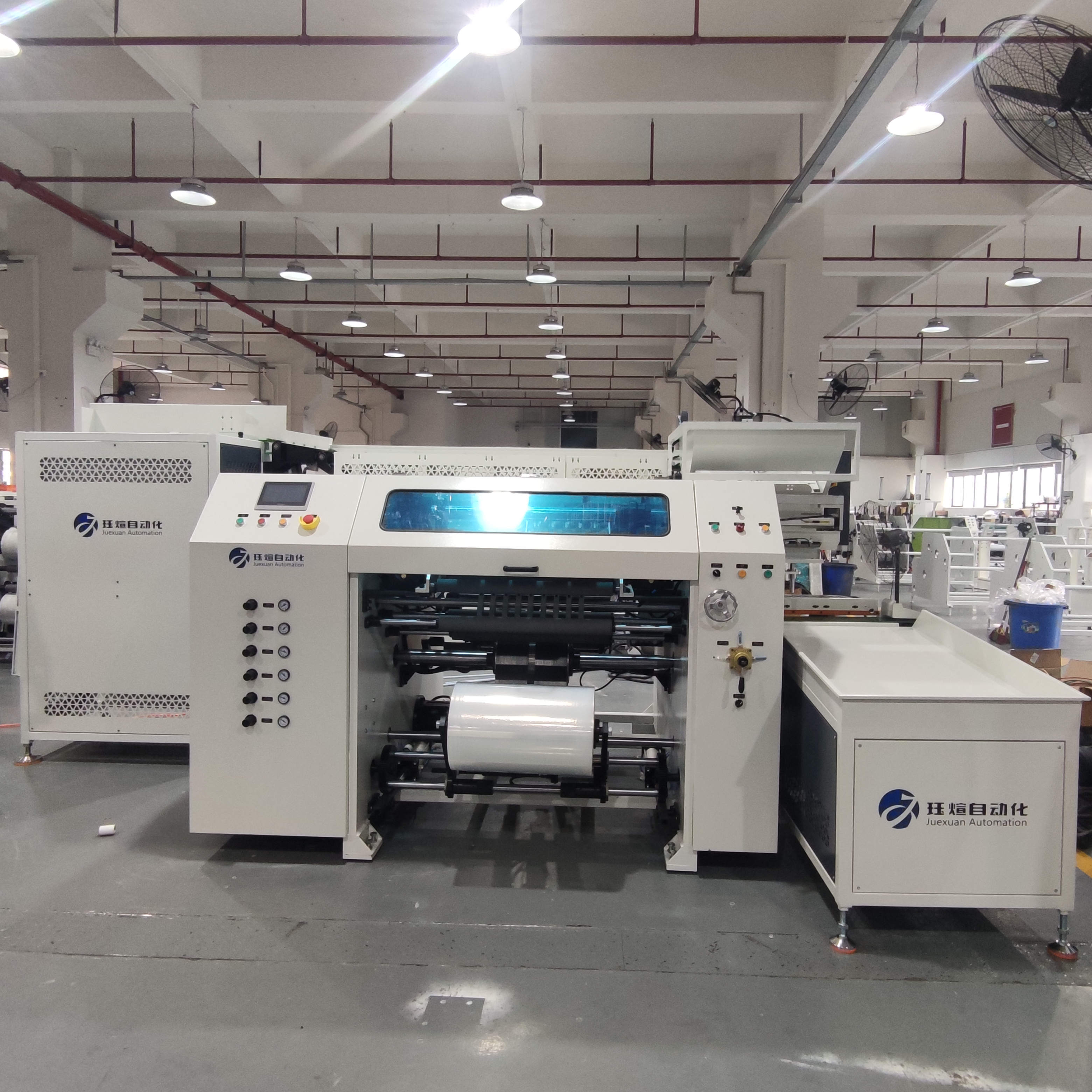

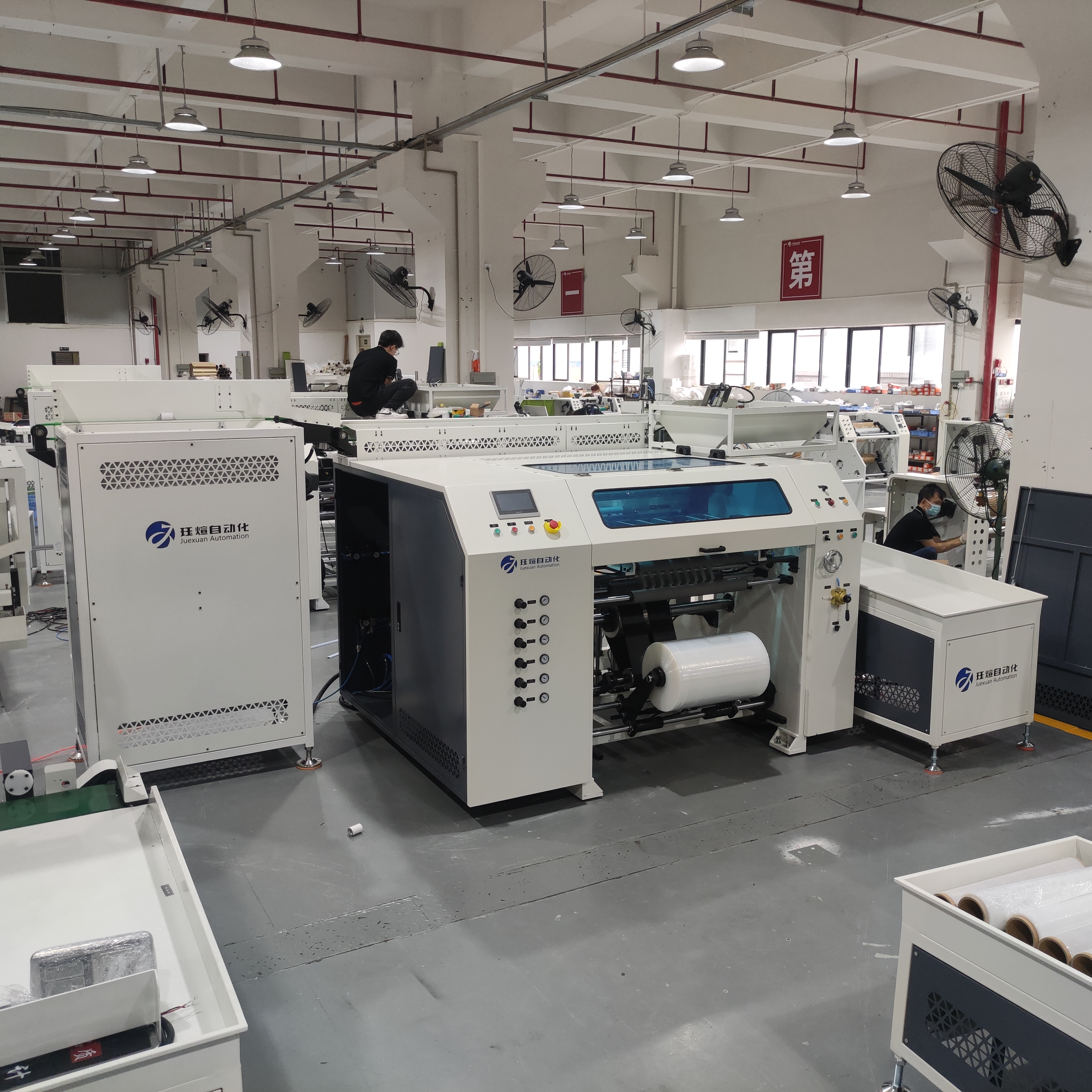

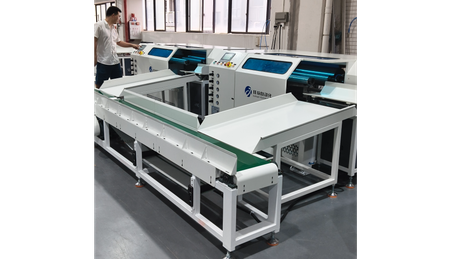

The JX-500-4AS fully automatic stretch film four-shafts rewinding and slitting machine is a cutting-edge industrial equipment developed by Juexuan Automation, a professional manufacturer of fully automatic slitting machines. Engineered to redefine efficiency in the stretch film processing industry, this machine integrates rewinding and slitting functions into a seamless, fully automated workflow, achieving true zero manual labor. It is tailored for enterprises aiming to minimize production costs, maximize operational profits, and meet high-volume production demands. With a maximum master roll diameter and width of 500mm, it processes film widths ranging from 50mm to 500mm, delivering a daily output of 3000KG within 12 hours—making it an indispensable asset for packaging factories, logistics companies, and film production facilities.
| Model Number | JX-500-4AS |
| Width of the film | 50-500mm |
| Sub-roll Core | 25/38mm |
| Sub-roll Diameter (max) | 100mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 4.4 KW x 2 |
| Master roll diameter (max) | 500mm |
| Width of the master roll (max) | 500mm |
| Daily Output | 3000KG(12h) |
| Overall Size(L*W*H)(CM) | 2850×2200×1850 |
| Weigh | 2600 Kg |
The fully automatic stretch film slitting machine eliminates manual intervention with intelligent automation: automatic core loading, automatic film feeding, and automatic film cutting. This not only reduces human error and labor costs but also ensures consistent processing quality across every batch.

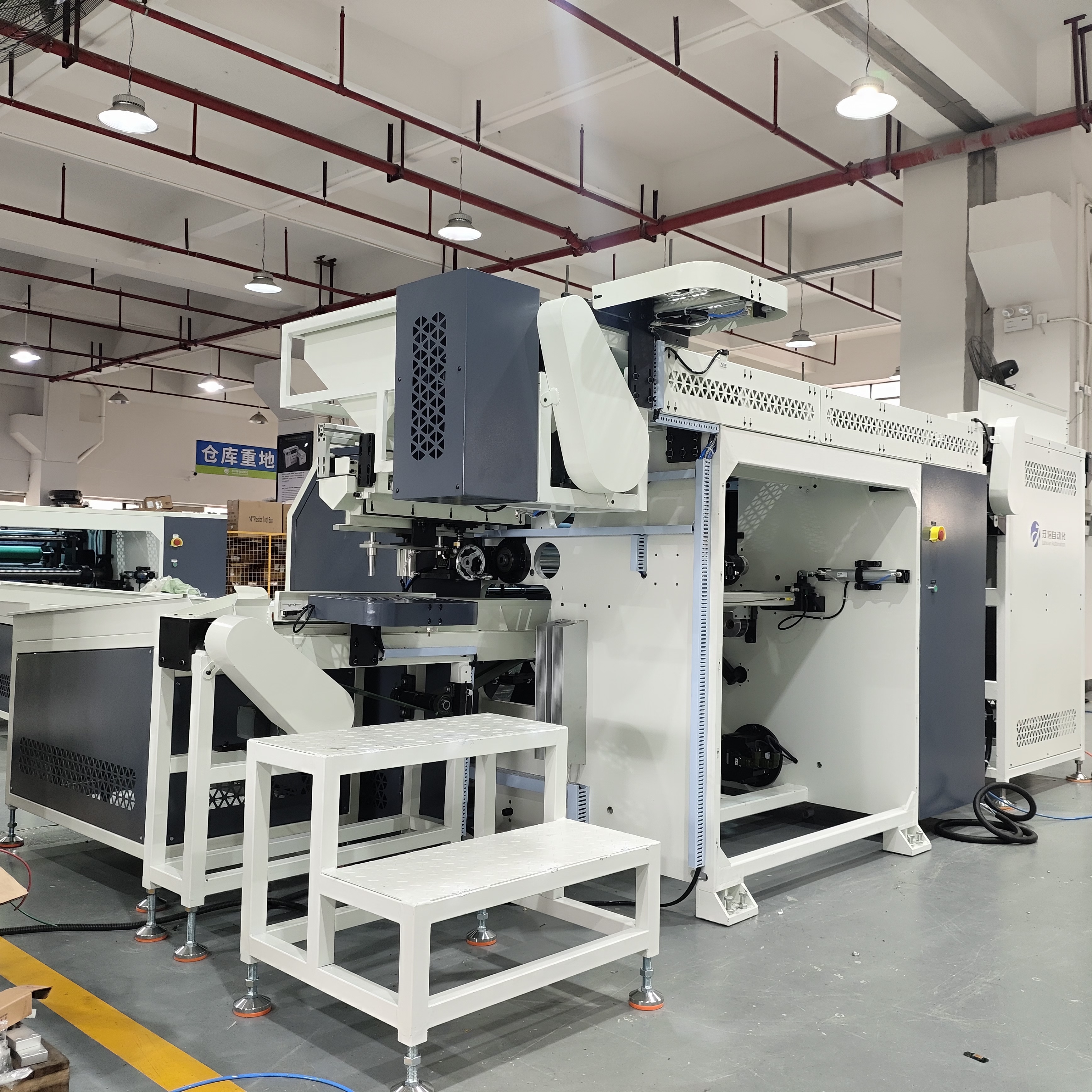

Equipped with a high-performance four-axis roll changing system, the machine enables continuous operation without downtime for roll replacement. Compared to traditional single or dual-axis models, this design directly doubles production efficiency, allowing businesses to handle large orders with ease.
Unlike specialized equipment, the JX-500-4AS serves as both a rewinding machine and a slitting machine, supporting diverse production needs. Whether you need to rewind large master rolls into manageable sub-rolls or slit wide films into custom widths, this all-in-one solution simplifies workflow and reduces equipment investment.
Crafted with precision engineering, the JX-500-4AS boasts technical specifications that guarantee reliability and performance. It accommodates sub-roll cores of 25mm (1 inch) and 38mm (1.5 inches), with customizable core size options to meet unique customer requirements. The machine’s mechanical design line speed reaches up to 1000m/min, ensuring rapid processing without compromising film integrity—critical for high-volume production scenarios.
Powered by two 4.4 KW frequency conversion motors, the four-shafts rewinding and slitting machine delivers stable power output, adapting seamlessly to different film thicknesses and materials such as PE stretch film, takeout packaging film, and protective film. The maximum sub-roll diameter is 100mm, and its robust structure (2850×2200×1850mm in size, 2600 Kg in weight) minimizes vibration during high-speed operation, ensuring consistent sub-roll quality with uniform width and smooth edges.

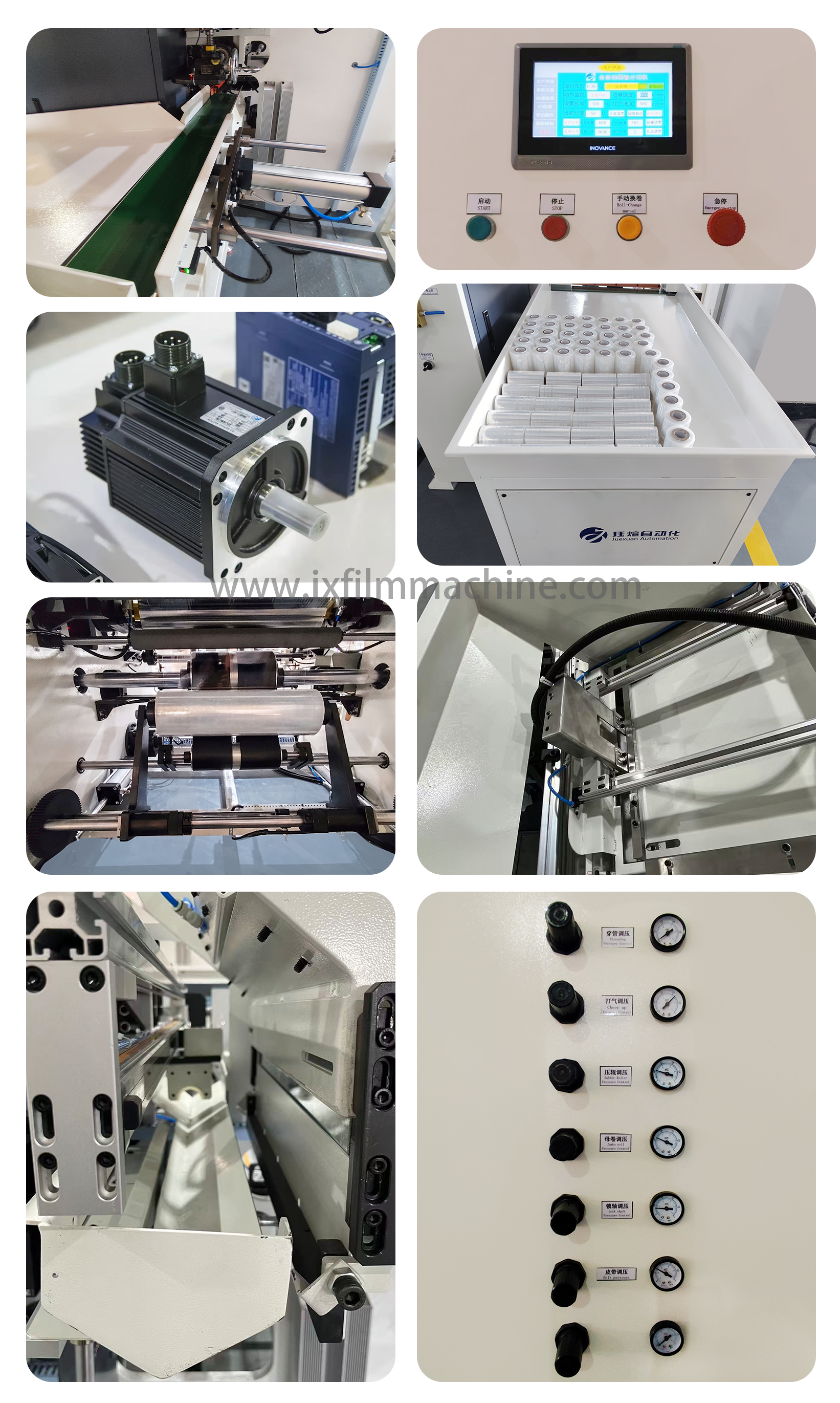

Every component, from the belt tensioning system to the precision cutting mechanism, is built with high-quality materials to withstand long-term industrial use. The fully automated process—from raw material loading to finished product collection—eliminates manual steps, reducing operational risks and improving overall productivity.
By automating the entire rewinding and slitting process, the machine achieves zero manual labor, cutting down on workforce expenses and minimizing the risk of workplace injuries. This directly lowers production costs and boosts operating profits for enterprises.
With a mechanical design line speed of 1000m/min and a daily output of 3000KG (12h), the JX-500-4AS outperforms conventional slitting equipment, ensuring businesses meet tight production deadlines and scale operations efficiently.
Support for 25mm/38mm standard cores and custom size options allows the machine to adapt to diverse market demands—whether for small retail packaging or large industrial wrapping.

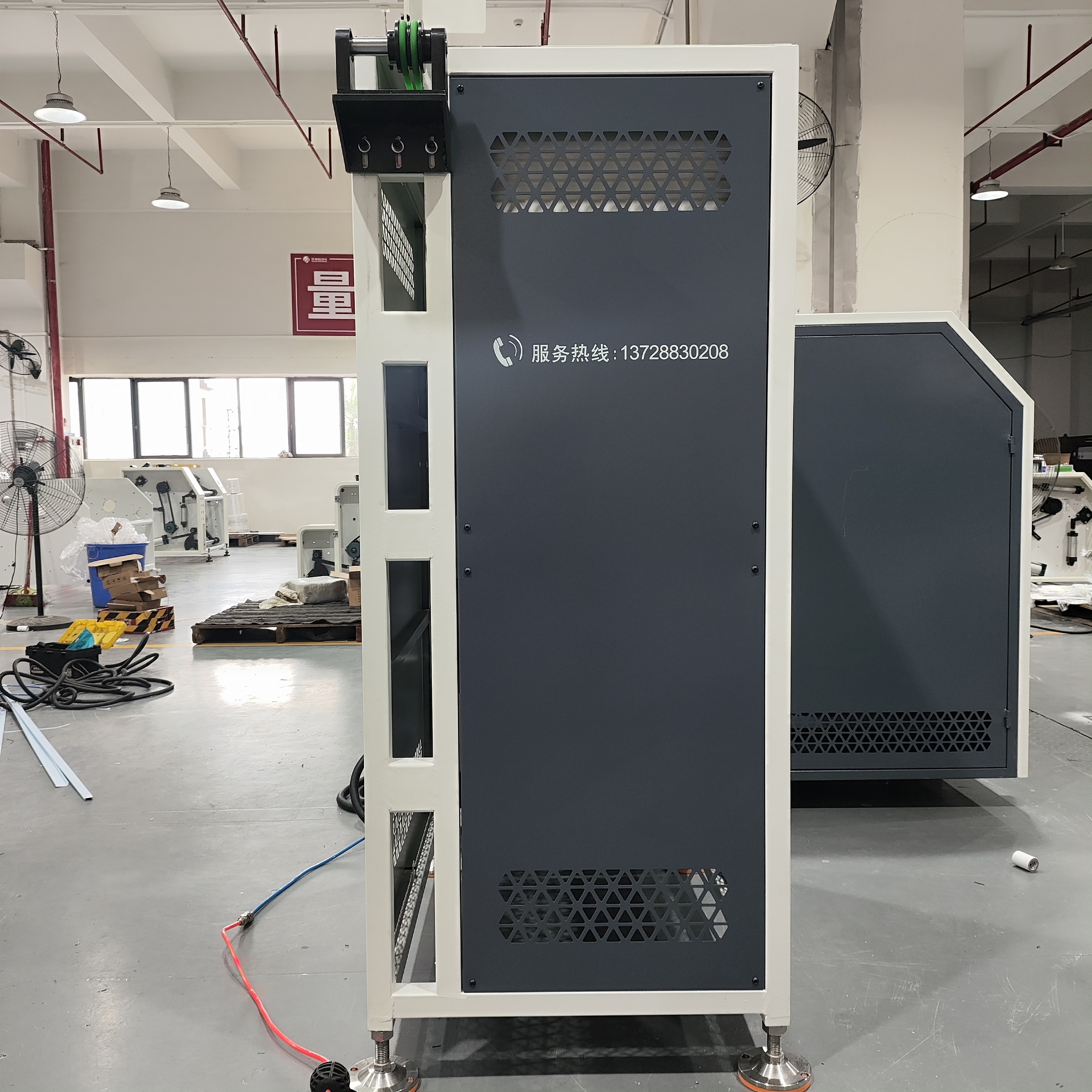

As a professional manufacturer with years of experience in automatic slitting equipment, Juexuan Automation adheres to strict quality control standards. Each JX-500-4AS undergoes rigorous testing before delivery, covering performance, safety, and durability. We use premium materials and reliable components (such as frequency conversion motors) to ensure stable operation. Additionally, our dedicated after-sales team provides 24/7 technical support, maintenance guidance, and spare parts supply via the service hotline: 13728830208.
The machine supports film widths ranging from 50mm to 500mm, suitable for most standard and custom packaging film requirements in industrial and commercial applications.
Yes, besides the standard 25mm (1 inch) and 38mm (1.5 inches) cores, we offer custom core size options to match your specific production needs. Contact our sales team for details.
The four-axis design allows the machine to prepare the next set of cores while slitting/rewinding, eliminating downtime for roll replacement—directly doubling production efficiency compared to traditional models.
