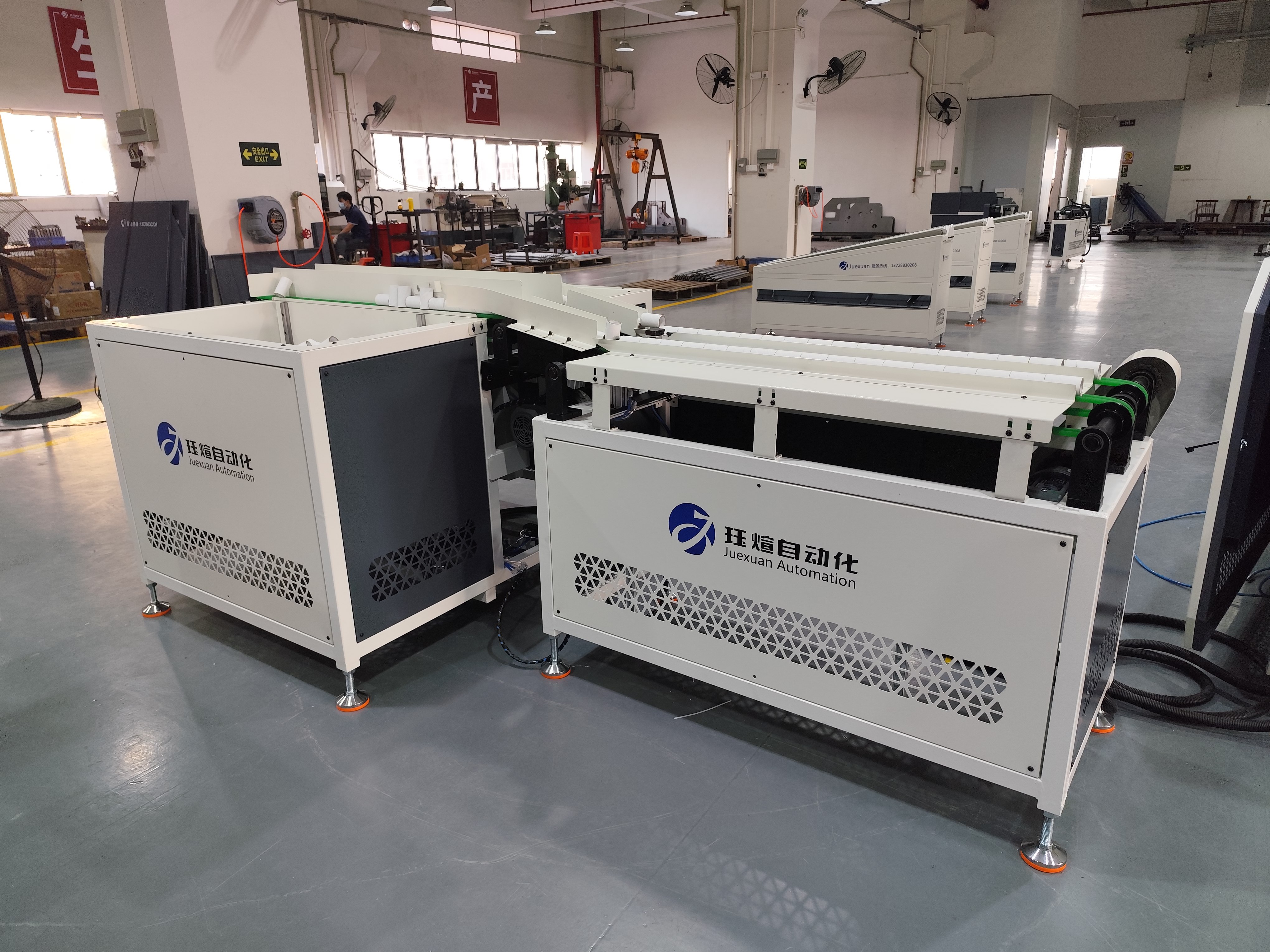

This is one of our best-selling machines. Based on the JX-500-4MAS, this machine is suitable for the master rolls which's width up to 1 meter. Equipped with the automatic tube row and intelligent membrane tube sepration, save much time to load the paper tubes and greatly improves the production efficiency.
(1) Four-axis rolls changing, double the efficiency.
(2) Automatic loading the film, automatic change the rolls and automatic cutting the film.
(3) Real speed is 600m/min in stable runnung.
(4) Support sub-rolls size as 1 inch(25mm) and 1.5 inches(38mm) and other size customized.
(5) Width of master roll no more than 0.5 merters.
| Quantity: | |
|---|---|
JX-1000-4MAS

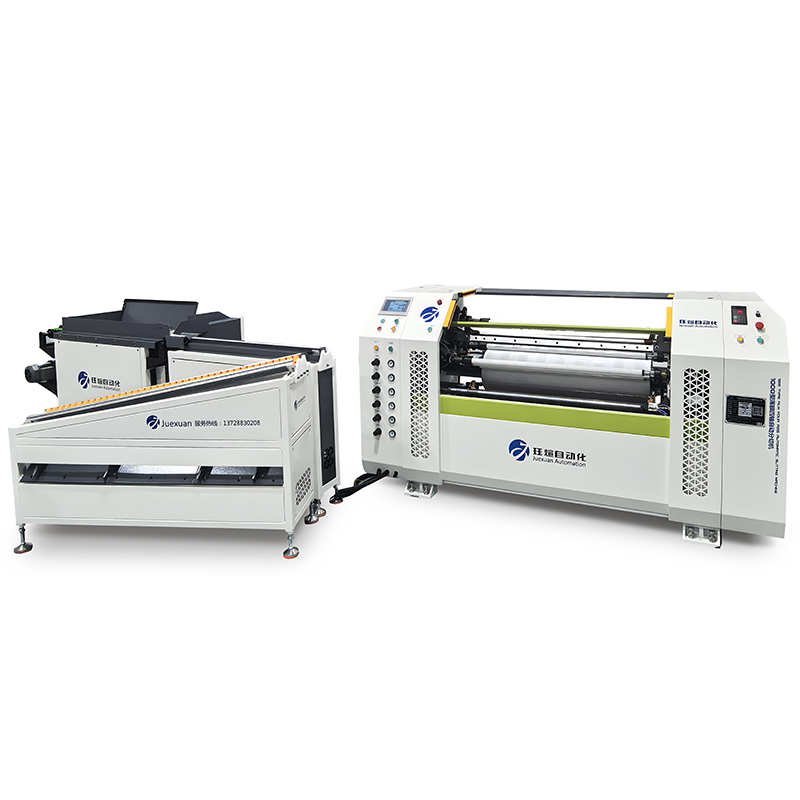

The 1 Meter Automatic Stretch Film Four-axis Slitting Machine (Model: JX-1000-4MAS) is a best-selling flagship product from Juexuan Automation, engineered for high-precision slitting of stretch films, PE protective films, winding films, and vegetable strapping films. Developed based on the proven JX-500-4MAS platform, this film slitting machine is optimized for master rolls with a maximum width of 1 meter, making it ideal for packaging factories, logistics companies, and film processing facilities seeking efficiency and reliability. With its intelligent design and automated workflows, it transforms raw master rolls into uniform sub-rolls, meeting the diverse packaging needs of industries worldwide.
| Model Number | JX-1000-4MAS |
| Width of the film | 20-1000mm |
| Sub-roll Core | 25/38mm |
| Sub-roll Diameter (max) | 100mm |
| Mechanical Design Line Speed | 1000m/min |
| Motor/frequency conversion | 4 KW |
| Mother roll diameter (max) | 500mm |
| Width of the mother roll (max) | 1000mm |
| Daily Output | 2500KG(12h) |
| Overall Size(L*W*H)(CM) | 24000×1500×1200 |
| Weigh | 1300 Kg |
Slitting of stretch film for pallet wrapping and cargo securing.
Processing of PE protective film for electronic components, furniture, and building materials.
Production of vegetable binding film for agricultural packaging.
Cutting of winding film for industrial and commercial packaging applications.
The JX-1000-4MAS redefines slitting efficiency with two game-changing features: four-axis rolls changing and automatic tube row. Unlike traditional two-axis machines, its four-axis design enables simultaneous slitting and roll changing, doubling production efficiency without downtime. The intelligent membrane tube separation system eliminates manual paper tube loading, saving valuable time and reducing human error. Additionally, the machine’s stable running speed of 600m/min (based on mechanical design line speed of 1000m/min) ensures consistent output, even during long-hour operations.
Crafted with precision engineering, the JX-1000-4MAS boasts robust specifications that guarantee performance and durability. It accommodates master rolls with a maximum diameter of 500mm and width up to 1000mm, while supporting sub-roll cores of 25mm (1 inch) and 38mm (1.5 inches) – with custom sizes available upon request. The machine is powered by a 4 KW motor with frequency conversion, delivering smooth speed regulation and energy efficiency. Its overall dimensions (2400×1500×1200 CM) and weight of 1300 Kg make it suitable for medium to large-scale production facilities, balancing footprint and functionality.

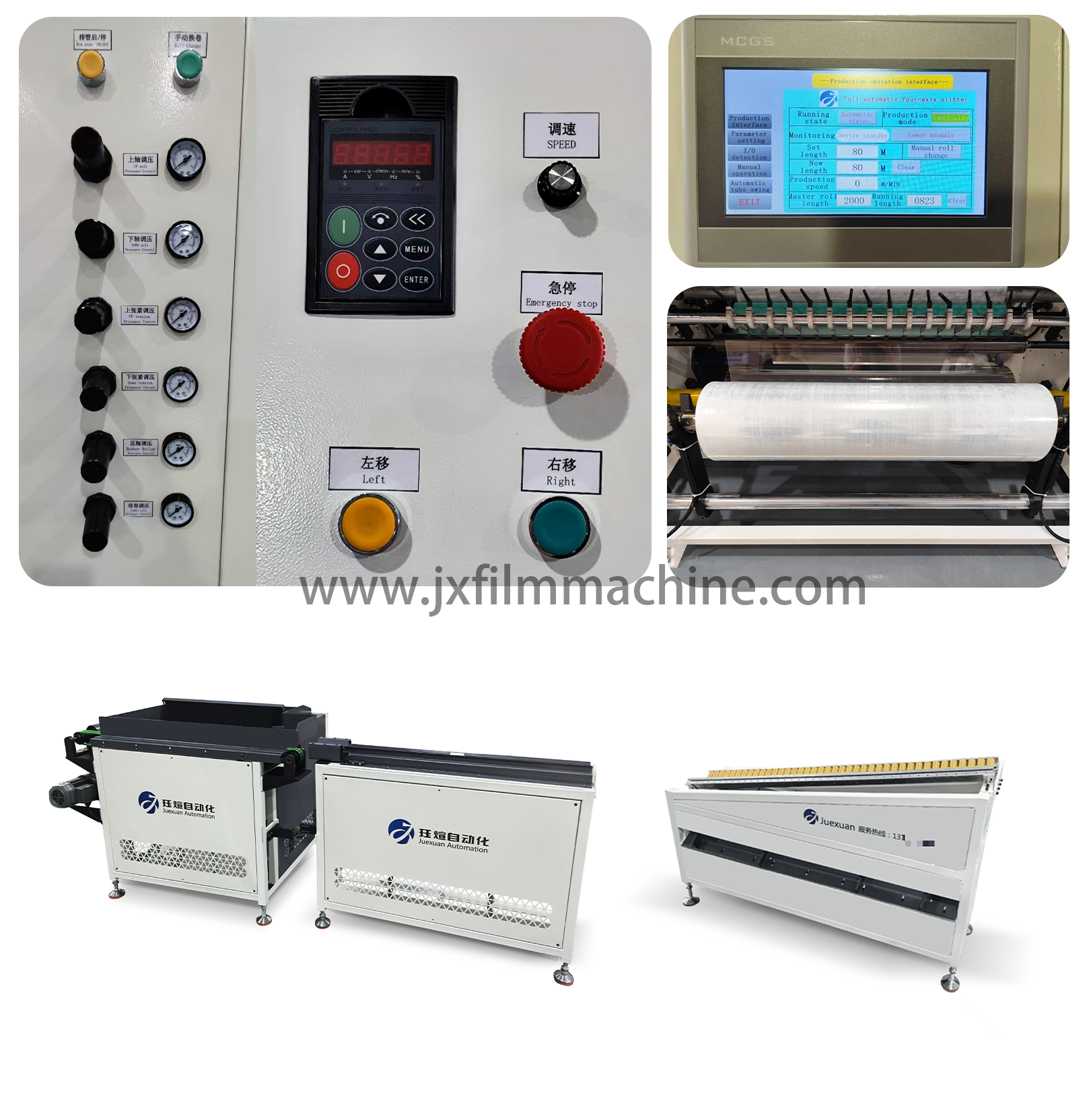

Equipped with a user-friendly MCGS control system, the machine offers full automation from start to finish. Key automated functions include automatic film loading, automatic roll changing, and automatic film cutting, minimizing manual intervention and labor intensity. Operators can easily adjust parameters such as slitting width (20-1000mm) and sub-roll diameter (max 100mm) via the intuitive interface. Safety features like emergency stop buttons and manual monitoring devices ensure operational security, even in high-pressure production environments.
Double Efficiency with Four-Axis Design: Four-axis rolls changing allows parallel processing, cutting production time in half compared to standard machines.
Full Automation: From loading to cutting, every step is automated, reducing labor costs and human error.
High Customization: Supports custom sub-roll core sizes and slitting widths to meet unique customer requirements.
Impressive Daily Output: Delivers 2500KG of finished product in a 12-hour shift, catering to high-volume production demands.
Stable & Uniform Slitting: Precision cutting ensures sub-rolls with flat edges and consistent width, enhancing product quality.
Easy Operation: Intuitive MCGS control panel and simple workflow reduce training time for operators.
Juexuan Automation adheres to strict quality control standards throughout the manufacturing process of the JX-1000-4MAS. The machine is constructed with high-strength steel, ensuring structural stability and long service life. Each unit undergoes rigorous testing, including speed trials, slitting precision checks, and durability assessments, before leaving the factory. We provide comprehensive after-sales support, including technical consultation, maintenance guidance, and spare parts supply, ensuring your machine operates at peak performance for years.
