When a manufacturing facility orders raw stretch film or plastic wrapping, it rarely arrives ready for immediate commercial use. Packaging materials typically come straight from the manufacturer in massive master rolls. These jumbo rolls are far too heavy and wide for standard packaging applications, creating a significant logistical gap between production and end-use.
This is where a film slitter machine becomes an essential piece of industrial equipment. By converting wide, heavy master rolls into smaller, manageable sizes, this machinery keeps packaging and logistics operations running smoothly. Without a reliable way to resize these materials, businesses would struggle to package goods efficiently or supply commercial consumers with usable rolls of stretch film.
If your business handles flexible packaging, understanding the mechanics behind film slitting can help you optimize your production line. This guide will explain exactly how a slitter machine operates from start to finish. We will also explore some of the most common problems operators face and how to keep your equipment running at peak performance.
The primary purpose of a slitter machine is to transform large rolls of material into narrower, consumer-ready strips. To achieve this, the machinery performs three distinct but interconnected operations.

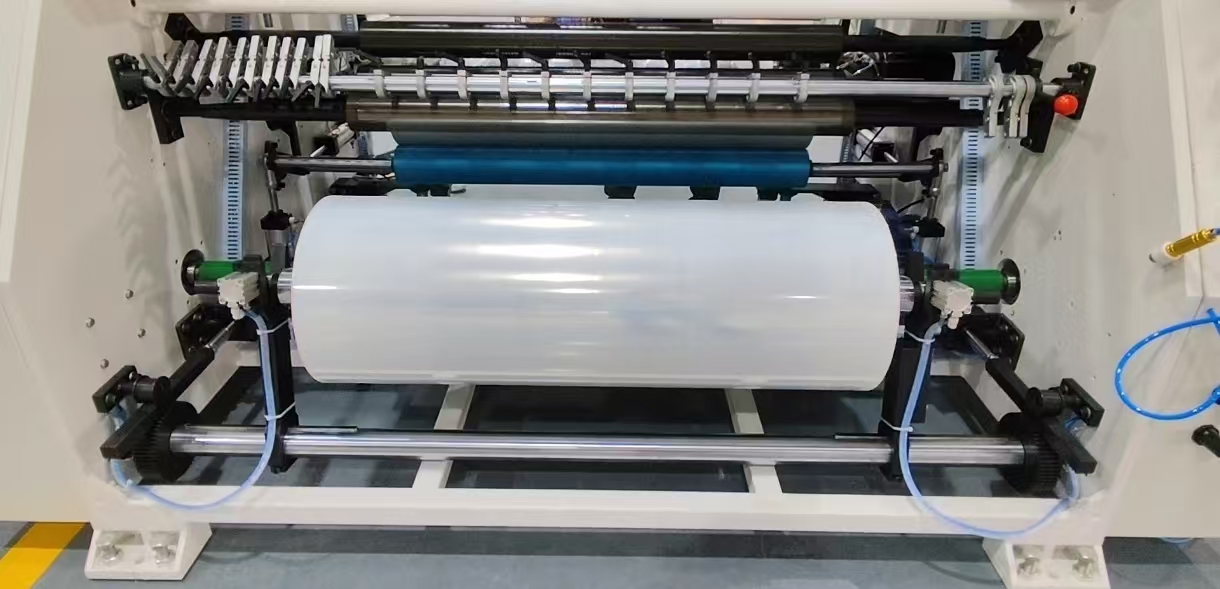

The process begins at the unwind station. Operators load the heavy jumbo roll of stretch film onto the machine. Modern equipment often features automatic loading capabilities to handle these massive weights safely. As the machine activates, it unwinds the large roll of material at a controlled speed. Maintaining the correct tension during this unwinding phase is critical. If the tension is too tight, the material can stretch or snap. If it is too loose, the film will sag and feed unevenly into the cutting section.
Once the material is smoothly unwound, it enters the slitting section. Here, the machine cuts the wide web of material into narrower strips using precision blades. Different machines use different slitting methods depending on the material's thickness and properties. Razor slitting uses stationary blades to slice through the moving film, which works exceptionally well for thin plastics. Shear slitting uses two rotating circular blades to cut the material like a pair of scissors. This precision ensures clean edges and exact widths for the final product.

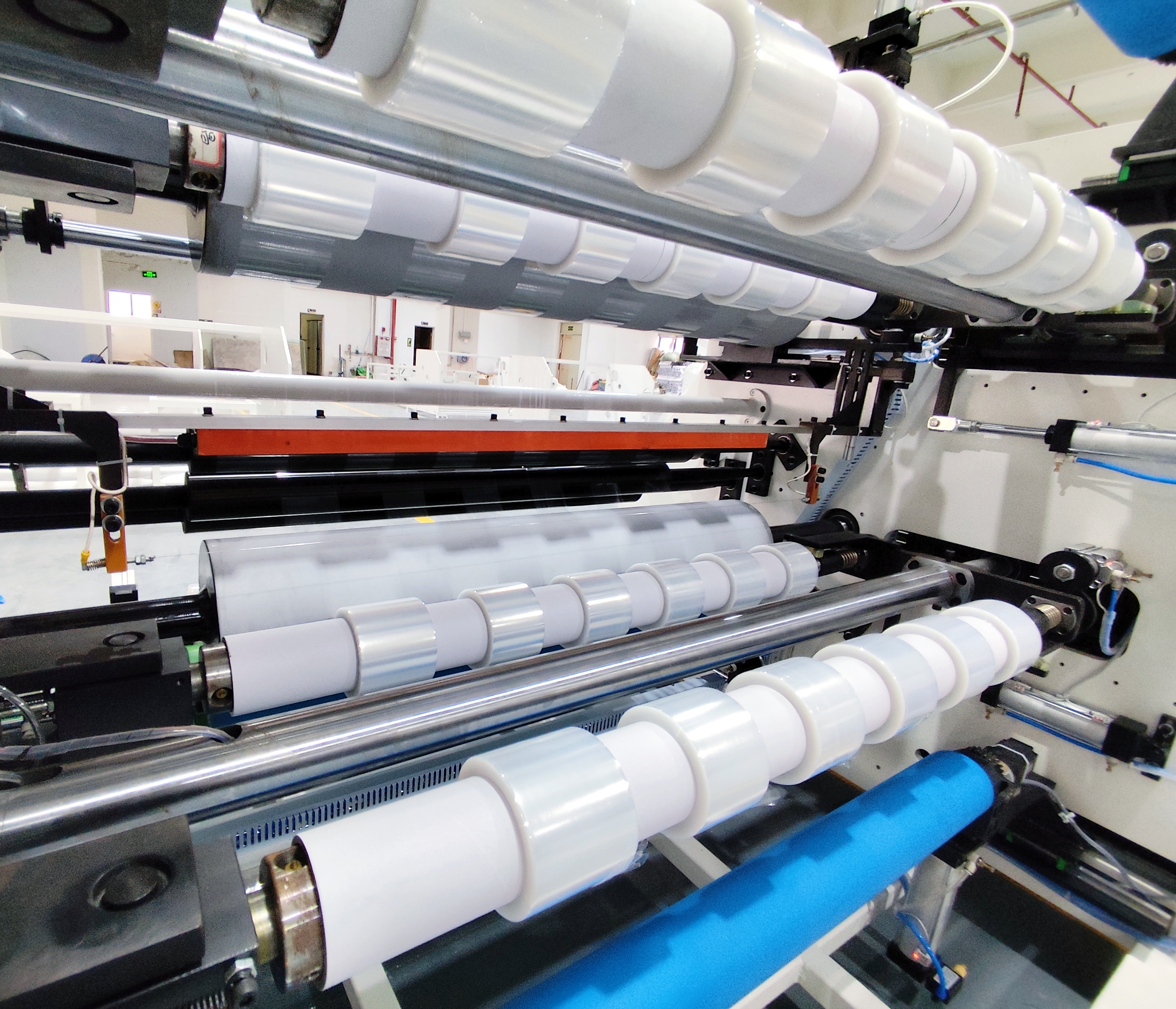

After the blades slice the film into narrower strips, the machine rewinds the strips onto smaller rolls for further processing or use. These smaller rolls are wound around individual cardboard or plastic cores, though some advanced machines now utilize coreless rewinding technology to reduce environmental waste. The rewinding process also requires strict tension control to ensure the finished rolls are tightly wound, structurally sound, and ready for shipment.
Even with the best machinery, operators occasionally run into challenges during the film slitting process. Identifying these issues early can save manufacturers significant amounts of wasted material and downtime.
Tension is the most important variable in film slitting. When the tension between the unwinding and rewinding stages is inconsistent, the resulting rolls suffer. High tension can stretch the film, compromising its elasticity and strength. Low tension often leads to "telescoping," a defect where the layers of the rewound roll slide out of alignment, making the finished product look like an extended telescope.
Precision blades eventually lose their sharpness. Dull blades do not cut cleanly, leading to rough, jagged edges on the finished rolls. For materials like stretch film, a jagged edge creates a weak point that can easily tear when a user tries to wrap a pallet. Regular maintenance and timely blade replacements are necessary to prevent edge damage and ensure a high-quality cut.
As the film moves through the machine at high speeds, air can become trapped between the layers during the rewinding phase. This trapped air causes wrinkles and bubbles, ruining the aesthetic and functional quality of the roll. Upgrading to machinery with better nip roller technology helps press the air out before the film is tightly wound.
To avoid the common pitfalls of film slitting, many manufacturers are turning to highly automated, intelligent equipment. Traditional manual or semi-automatic machines often leave too much room for human error, especially regarding tension control and blade alignment.
Modern machines, like those developed by Juexuan Automation, utilize servo drive systems to manage tension flawlessly. They offer processing speeds that can reach up to 800 meters per minute while maintaining perfect edge quality. By automating the loading, cutting, and unloading processes, modern equipment drastically reduces the physical labor required and minimizes material waste. Features like coreless rewinding also allow companies to embrace sustainable packaging practices while lowering their material costs.
Investing in a high-quality stretch film slitting machine is one of the most effective ways to boost your facility's efficiency. By understanding how these machines unwind, cut, and rewind materials, you can better identify bottlenecks in your current processes and take steps to resolve them.
If you want to upgrade your flexible packaging operations, explore the advanced equipment available at Juexuan Automation. With over 30 patents and a focus on coreless rewinding technology, their fully automatic machines are engineered to increase your daily output while cutting down on waste. Contact their technical experts today for a customized solution tailored to your manufacturing needs.
