If you run a high-volume packaging operation, you already know that speed and consistency are vital to your bottom line. Manufacturers constantly seek ways to process materials faster while maintaining a high standard of quality. This is exactly where modern converting equipment steps in to transform production lines.

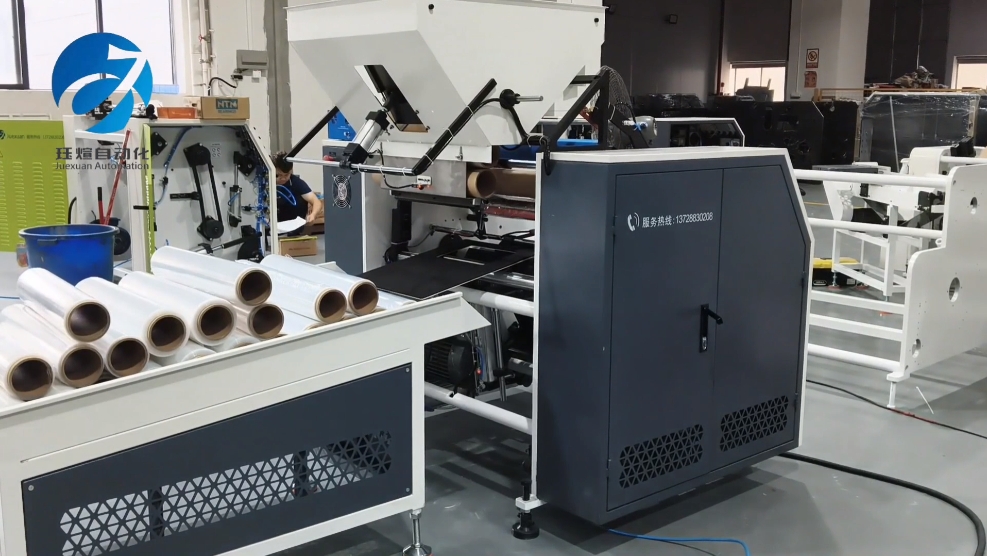

At the heart of many successful packaging facilities is the auto rewinding machine. These highly specialized devices take large master rolls of film and convert them into smaller, more manageable rolls for commercial or industrial use. By automating this process, companies can drastically reduce manual labor, minimize material waste, and ensure perfectly wound rolls every single time.
This guide will explain exactly what these machines do, how an automatic rewinder operates step-by-step, and why they are essential for handling materials like LLDPE, CPP, CPE, PE, and POF films. By the end of this post, you will have a clear understanding of how upgrading your converting equipment can boost your overall productivity.
An auto rewinding machine serves a very specific and crucial purpose in the manufacturing and packaging industries. It takes jumbo rolls of stretch film or cling film and processes them into smaller rolls tailored for end-users. These smaller rolls are what you typically see used for wrapping pallets in warehouses or securing food items in supermarkets.
One of the most significant uses of an automatic film rewinder is the ability to produce both cored and coreless rolls. Traditional rolls use a cardboard or plastic core at the center. However, modern machines can also wind film without a core, reducing overall weight and eliminating cardboard waste. This flexibility allows manufacturers to meet diverse client demands while pursuing more eco-friendly packaging solutions.
Many rewinding machines also double as slitters. This means they can cut a wide master roll into several narrower rolls simultaneously as the film is being rewound. High-end equipment can handle processing widths from 500mm all the way up to 2500mm, slicing through materials precisely. This rapid converting process is vital for companies that need to output thousands of kilograms of film per day.
Understanding the mechanics behind an automatic rewinder helps highlight why they are so efficient. While specific features vary by manufacturer, the general operation follows a streamlined, highly automated process.
The process begins by loading a large master roll of stretch film onto the unwind stand of the machine. In advanced setups, this loading is fully automated, removing the need for heavy manual lifting.
Once loaded, the film is fed through a series of rollers. Tension control is a critical component here. If the film is pulled too tightly, it can stretch or tear. If it is too loose, the final roll will be sloppy and unusable. An automatic film rewinder uses sophisticated servo drive systems and sensors to monitor and adjust the tension continuously as the film moves at speeds reaching up to 800 meters per minute.
If the machine is a combined slitter and rewinder, the film passes through ultra-sharp blades. These blades slice the wide web of film into narrower strips. The positioning of these blades can usually be adjusted to create rolls of varying widths, depending on the production requirements.
The film is then wound onto the rewinding shafts. Machines often feature two or four shafts (such as four-shaft automatic changing systems). When a roll reaches the desired length or diameter, the machine automatically cuts the film. The completed rolls are pushed off the shaft, and new paper tubes are automatically loaded for the next cycle. In coreless operations, the film is simply wound around a specialized shaft that slides out easily once the roll is finished.
To better understand the options available on the market, let's look at a few examples of equipment used for different production needs.
Machine Feature | Cored Rewinding | Coreless Rewinding | Combined Rewinding & Slitting |
|---|---|---|---|
Primary Output | Standard film rolls on paper tubes. | Lightweight rolls with zero cardboard waste. | Multiple narrow rolls from a single wide master roll. |
Typical Speed | 600 to 800 meters/minute. | Up to 600 meters/minute. | 600 meters/minute. |
Best Application | General pallet wrapping and logistics. | Eco-conscious packaging and cost reduction. | Producing varied roll sizes simultaneously. |
Automation Level | Fully automatic tube loading/unloading. | Fully automatic coreless rewinding. | Automatic four-shaft changing and cutting. |
Most automatic rewinders are highly versatile. They can easily process a variety of stretch and shrink films, including LLDPE, CPP, CPE, PE, and POF materials.
Production capacity depends on the specific machine model and speed. However, highly efficient industrial models can easily achieve daily outputs of up to 2500 to 3000 kilograms (3 tons) per day.
Despite their complex internal mechanics, modern machines feature intuitive, user-friendly interfaces. Most equipment comes with detailed instruction manuals and requires minimal manual intervention once the production parameters are set.
Investing in a high-quality automatic film rewinder is one of the smartest moves a packaging manufacturer can make. By automating the loading, cutting, and core-changing processes, you eliminate bottlenecks and significantly reduce manual labor costs. You also gain the flexibility to produce traditional cored rolls alongside innovative coreless options.
If you want to maximize your factory's output and maintain a competitive edge, it is time to evaluate your current converting equipment. Reach out to a specialized equipment manufacturer to discuss a tailored solution that fits your specific film processing needs.
