The global packaging market is undergoing a significant structural shift. Traditional reliance on heavy paper cores is waning as sustainability mandates and rising logistics costs drive manufacturers toward leaner, lighter solutions. This trend creates a production dilemma for converters: do you invest in a dedicated coreless rewinding machine and risk alienating legacy clients, or do you stick with traditional systems and miss the eco-friendly market wave? The risk of choosing a single-format technology is substantial in a fluctuating economy.

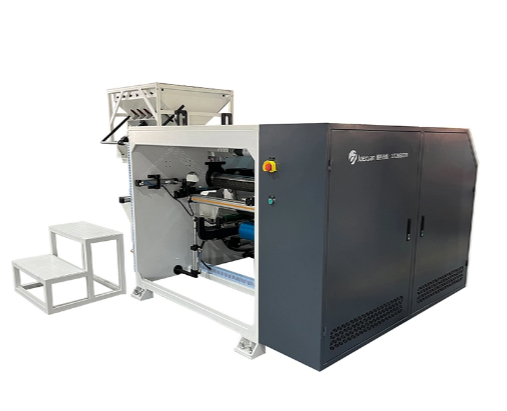

The fully automatic stretch film cored and coreless rewinding and slitting machine emerges as the risk-mitigated investment solution. This hybrid asset allows manufacturers to service both legacy markets requiring paper cores and emerging eco-markets demanding coreless rolls on a single production line. This article evaluates the technical feasibility, ROI drivers, and critical feature sets required to run both formats efficiently. You will learn how to assess the precision mechanics necessary for this dual capability and how to calculate the real-world value of hybrid production.
Dual-Mode ROI: Hybrid machines eliminate the need for two separate production lines, maximizing floor space utility and reducing Capex.
Coreless Economics: Removing paper cores can save 10–15% in direct material costs and reduce shipping weight, but requires higher precision winding technology.
Technical Criticality: Surface winding technology (vs. center winding) is non-negotiable for high-speed stretch film operations to prevent air entrapment and telescoping.
Speed Benchmarks: Industrial standards for fully automatic rewinding and slitting machines now demand 1,000–1,200 m/min; anything below 600 m/min is considered entry-level.
Investing in a hybrid system is primarily a strategic move toward market adaptability. Converters often face volatility in resin prices and shifting client sustainability requirements. A hybrid machine provides the ability to pivot production instantly. If paper core prices spike or supply chains disrupt availability, you can shift volume to coreless outputs without halting operations. This reduces dependency on external suppliers and mitigates supply chain risks.
Beyond standard production, high-end rewinders serve a critical role as "doctor machines." They allow operators to salvage defective jumbo rolls that may be telescoped or have bad edges. By rewinding these off-spec jumbo rolls into sellable hand-wrap or machine-wrap rolls, manufacturers significantly minimize scrap rates. This recovery capability transforms potential waste into revenue, directly impacting the bottom line.
A robust hybrid system allows for immense inventory versatility on the same chassis. Manufacturers can produce standard machine rolls, manual hand rolls, and niche products like mini-rolls (50mm–100mm width). This flexibility ensures that a single asset can fulfill diverse orders, from high-volume industrial contracts to specialized, low-volume requests.
The method of winding determines the structural integrity of the finished roll. For stretch film, the distinction between surface and center winding is the difference between a sellable product and a collapsed defect.
Surface driven rewinding relies on a driven roller that maintains constant contact with the film surface. This physical contact effectively squeezes out air layers trapped between the film wraps. This mechanism is critical for coreless production. Without a rigid paper core to support the center, any trapped air pockets will cause the roll to collapse inward. Surface winding ensures structural integrity from the very first layer, creating a dense, stable package.
| Feature | Surface Winding | Center Winding |
|---|---|---|
| Drive Mechanism | Driven via surface contact roller | Driven via the core shaft |
| Air Removal | High (squeezes air out) | Low (traps air in) |
| Suitability for Stretch Film | Excellent (prevents telescoping) | Poor (risk of coning) |
| Coreless Capability | Essential for stability | Unsuitable |
Active contact rollers, or lay-on rollers, are vital for preventing "neck-in." LLDPE and PVC stretch films tend to narrow in width when under tension. The lay-on roller applies pressure across the web width, maintaining the film's dimensions and ensuring a flat, uniform profile.
When evaluating a coreless rewinding machine, buyers must scrutinize the mandrel design and air expulsion systems. These components determine if the machine can produce a viable product without a central support structure.
Coreless winding relies on expanding air shafts that act as a "false core" during the winding process. Once the roll reaches the desired length, the mechanism must collapse and extract the shaft automatically. This extraction needs to be seamless to avoid damaging the inner layers of the film. High-quality systems ensure the shaft retracts completely, leaving a clean, perfectly formed hole in the center of the roll.
Unlike cored rolls, coreless rolls must be "rock-solid." Any residual air will result in a soft, unstable product that deforms during shipping. Machines designed for this purpose utilize aggressive air removal techniques, often combined with oscillation features. Oscillation distributes the film edges slightly back and forth, preventing gauge bands (thick spots in the film) from stacking up and creating soft spots in the roll.
For a hybrid machine, the transition speed between modes is a key performance metric. How long does it take to swap from paper core injection to coreless mandrels? A competitive target is under 30 minutes. Furthermore, the PLC software should allow operators to save recipe parameters. Instant switching of tension and speed profiles via the interface reduces setup time and minimizes material waste during changeovers.
Choosing the right cutting method is essential for processing LLDPE and PVC efficiently. The choice typically lies between razor slitting and shear slitting.
Razor-in-groove is the industry standard for LLDPE stretch film. In this setup, the blade sits in a grooved roller, supporting the film on both sides of the cut.
Benefits: Consumables are inexpensive, setup is straightforward, and it produces clean edges for thin films.
Limitations: Blade life cycles can be short at high speeds (1,000 m/min+), requiring frequent changes.
Shear slitting acts like a pair of scissors, using two rotary knives. It is generally reserved for processing thicker laminates or pre-stretched films that might tear under the pressure of a static razor. While the initial setup cost is higher, shear slitting generates significantly less dust, which is advantageous for cleanroom environments.
A versatile coreless slitting machine should handle narrow widths. Evaluating the machine's ability to slit down to 50mm widths without web weaving is crucial for producing "bundling rolls." Premium competitors often include Edge Folding Systems. This value-add feature folds the film edge to create a double thickness, significantly preventing tear propagation during application.
To justify the Total Cost of Ownership (TCO), it is vital to differentiate between semi-automatic and true automation. A fully automatic rewinding and slitting machine automates the entire production cycle.
Buyers should verify the presence of these automated subsystems:
Auto-Feeding: The machine should handle paper core hopper loading for cored mode and automatic shaft recycling for coreless mode.
Auto-Cut & Transfer: Flying knife technologies must cut the film at full line speed without stopping the web, ensuring continuous throughput.
Auto-Unloading: Finished rolls should be ejected onto a conveyor system that leads directly to palletizers or packing stations.
Labeling Integration: While optional, inline printing or labeling is recommended for complete "pellet-to-pallet" automation.
True automation changes labor dynamics. A fully automated system should allow a single operator to manage 2–3 lines simultaneously. This efficiency relies heavily on safety systems. Light curtains and Emergency Stops (E-stops) are essential for protecting operators near high-speed automated turret winders.
Financial justification for a hybrid machine requires a clear analysis of speed, material savings, and output reality.
Buyers must distinguish between Mechanical Design Speed (e.g., 1500 m/min) and Stable Production Speed (e.g., 1000 m/min). The achievable speed is often limited by film quality, specifically micron variation. High-quality resin blends allow for faster processing, while inconsistent films force slower operation to prevent breaks.
The primary ROI driver for the coreless mode is the elimination of consumables. The savings can be calculated using a simple formula:(Annual Rolls Produced) x (Cost per Paper Core) = Gross Savings
However, buyers must account for offset factors. Coreless mandrels require maintenance, and the air removal systems may result in slightly higher energy consumption.
If the machine includes "Pre-stretch" capabilities, it offers immense downstream value. Pre-stretching elongates the film before rewinding, reducing the amount of film required to wrap a pallet. This feature is a powerful selling point to end-users, justifying a higher price point for the finished rolls.
The convergence of cored and coreless demands into a single machine frame represents the most logical CAPEX strategy for modern converters. By investing in a hybrid system, manufacturers future-proof their operations against regulatory changes and supply chain volatility.
When selecting a machine, prioritize units featuring servo-driven surface winding and robust tension isolation over those simply claiming the highest top speed. Quality winding prevents waste and ensures customer satisfaction. Before making a final purchase decision, we recommend requesting a material test. Sending your specific Jumbo Roll resin blend to the manufacturer validates the machine’s handling of "neck-in" and static generation, ensuring the equipment meets your specific production needs.
A: Dedicated coreless machines often cannot. However, a "Combo" or hybrid fully automatic rewinding and slitting machine is specifically designed with interchangeable shafts to handle both formats, though changeover time varies by model.
A: Advanced machines can handle ultra-thin films down to 6 microns. For films thinner than 10 microns, ensure the machine is equipped with high-end static elimination and precision tension control to prevent tearing.
A: Surface winding drives the roll from the outside, which helps squeeze out air layers. This is critical for stretch film to prevent "telescoping" (coning) and is essential for maintaining the structural integrity of coreless rolls.
A: Entry-level models typically run at 500–600 m/min. High-performance industrial lines run between 1,000 and 1,500 m/min. Speed should be balanced against the stability of the web and the cooling capacity of the film.
A: It depends on your customer base. A machine with a pre-stretch module elongates the film before rewinding, creating "pre-stretched" rolls that are lighter and easier for manual application. This is a high-value feature but increases machine cost.
