Stretch film rewinding problems—including telescoping, loose winding, wrinkling, film breaks, uneven roll edges, and coreless collapse—are most often caused by incorrect tension settings, misaligned machine components, or suboptimal material parameters. Identifying the root cause quickly is essential to minimizing downtime and maintaining roll quality.
This guide covers the six most common PE film rewinding machine issues operators encounter, along with practical, step-by-step troubleshooting solutions. Whether you run a semi-automatic or fully automatic stretch film rewinding machine, these fixes apply across most equipment configurations.
Most stretch film rewinding problems trace back to three root causes: improper tension control, mechanical misalignment, or incompatible film properties. Understanding which category applies to your issue is the fastest path to a lasting fix.
Tension errors — too high or too low winding tension distorts roll geometry and film structure
Mechanical misalignment — worn rollers, unbalanced shafts, or loose guides cause tracking and edge issues
Material variables — film gauge inconsistency, adhesive properties, and temperature affect how PE film winds
Telescoping occurs when successive film layers shift laterally during winding, creating a stepped or cone-shaped roll rather than a uniform cylinder.
Telescoping is one of the most frequently reported stretch film rewinding problems. It results in rolls that are difficult to handle, store, and use on downstream packaging equipment.
Common causes:
Excessive winding tension
Lateral film tracking drift
Worn or uneven pressure rollers
Roller parallelism error
How to fix telescoping:
Reduce winding tension incrementally and observe roll formation.
Check and recalibrate the film edge guide or tracking sensor.
Inspect all rollers for wear and replace any that show uneven surface profiles.
Use a dial indicator to verify roller parallelism; realign to manufacturer tolerances.
If the problem persists, verify that the film itself has consistent gauge across its width—gauge variation in the incoming PE film can cause telescoping even on a well-tuned stretch film rewinding machine.
Loose winding produces soft, unstable rolls that deform under their own weight or during transport, causing film layers to slip and the roll to lose its shape.
Loose rolls are a common sign of insufficient winding tension or a tension control system that is not responding correctly to changes in roll diameter.
Common causes:
Winding tension set too low
Faulty or uncalibrated tension control system
Nip roller pressure insufficient
Film slippage on the winding core
How to fix loose winding:
Gradually increase winding tension and assess roll firmness at each increment.
Calibrate the tension control system according to the machine's specification guide.
Check nip roller pressure settings and increase pressure to reduce inter-layer slippage.
Inspect the core gripping mechanism; worn or damaged chucks can allow the core to spin independently, causing loose inner layers.
For coreless rewinding configurations, confirm that the coreless winding mandrel is applying adequate initial pressure.
Wrinkling in stretch film rewinding appears as creases or folds across the film width, typically caused by uneven tension distribution or web path misalignment.
Wrinkles compromise both the appearance and functional performance of finished rolls. They are particularly problematic for hand stretch film and machine stretch film used in high-clarity pallet wrapping applications.
Common causes:
Uneven tension across the film width
Bowed or deflected spreader rollers
Film entering the rewind section at an angle
Excessive temperature in the production environment
How to fix wrinkling:
Check the spreader roller (bow roller) condition and replace if deflection is uneven.
Verify that the film web approaches the winding station at a perpendicular angle; adjust guide rollers as needed.
Balance tension across the full film width by adjusting edge tension zones if the machine supports zoned tension control.
Reduce line speed temporarily to determine whether wrinkling is speed-dependent.
Check ambient temperature; high temperatures can cause PE film to soften and wrinkle more easily under standard tension settings.
Film break during stretch film rewinding refers to the film snapping or tearing mid-production, causing an unplanned stop and roll rejection.
Frequent film breaks on a PE film rewinding machine are costly in terms of waste and downtime. They are usually symptomatic of tension spikes, surface defects, or film quality issues.
Common causes:
Winding tension set too high
Sharp edges or burrs on rollers or guides
Thin spots or defects in the incoming film
Sudden tension spikes from an improperly tuned dancer arm or tension sensor
How to fix film breaks:
Lower winding tension and perform a slow-speed test run to confirm stability.
Inspect all rollers, guides, and slitting blades for sharp edges, burrs, or debris; clean and polish contact surfaces.
Check the dancer arm or tension sensor for erratic movement; recalibrate or replace if the response is inconsistent.
Review incoming film quality records—if breaks cluster around specific parent roll batches, the issue may be upstream in film extrusion.
Ensure blade angles in combined slitting-rewinding machines are set correctly; an incorrect blade angle increases the risk of edge tears propagating across the film width.
Uneven roll edges occur when the wound film does not form a clean, flat face on either side of the roll, resulting in a ragged or stepped edge appearance.
Uneven roll edges affect product presentation and can cause problems with downstream machinery that relies on consistent roll geometry for automatic loading.
Common causes:
Film oscillation or lateral web movement during winding
Misaligned edge guide sensors
Variation in film width from the slitting stage
Core misalignment on the winding shaft
How to fix uneven roll edges:
Calibrate the edge guide sensor and confirm it tracks the film edge consistently throughout the winding cycle.
Inspect the slitting section to ensure all blades are producing consistent slit widths; replace worn blades.
Check core positioning on the winding shaft and ensure cores are loaded centrally and locked securely.
If the machine uses lateral oscillation winding, review the oscillation amplitude and frequency settings.
Verify the winding shaft is straight and balanced; a bent shaft introduces a repeating pattern of edge deviation that corresponds to shaft rotation frequency.
Coreless collapse occurs in coreless stretch film rewinding when the inner layers of the roll cave inward, producing a deformed roll that cannot be used on downstream dispensers.
Coreless winding is increasingly popular for reducing packaging material and cost, but it introduces specific challenges. Coreless rolls depend on the inner film layers themselves to provide structural rigidity.
Common causes:
Insufficient initial winding tension on inner layers
Mandrel release timing incorrect
Film is too thin or too soft for the selected coreless diameter
Ambient humidity affecting film tack and adhesion between inner layers
How to fix coreless collapse:
Increase the initial winding tension applied to the first 10–20 layers; many modern stretch film rewinding machines allow the inner-layer tension profile to be set independently.
Adjust mandrel release timing so the mandrel supports the roll until sufficient layers have been wound to provide structural integrity.
Review the minimum recommended film gauge for the coreless roll diameter being produced; switching to a thicker gauge may be necessary.
Control storage conditions—coreless PE film rolls stored in high-humidity environments are more prone to inner-layer slippage and collapse.
Consult the stretch film rewinding machine manufacturer for mandrel diameter and tension profile recommendations specific to your film type and finished roll weight.
Problem | Most Likely Cause | First Fix to Try |
|---|---|---|
Telescoping | Tracking drift or tension too high | Recalibrate edge guide, reduce tension |
Loose winding | Tension too low | Increase winding tension incrementally |
Wrinkling | Uneven tension or misaligned web | Check spreader roller, realign web path |
Film break | Tension spikes or surface burrs | Inspect rollers, lower tension |
Uneven roll edges | Edge guide or slit width variation | Calibrate edge sensor, inspect blades |
Coreless collapse | Low inner-layer tension or early mandrel release | Increase initial tension, adjust mandrel timing |
Operator-level troubleshooting resolves the majority of stretch film rewinding problems. However, some issues require engineering-level intervention:
Repeated film breaks despite correct tension settings and clean rollers
Persistent telescoping after roller replacement and realignment
Control system faults or inconsistent servo response
Coreless collapse that cannot be resolved through tension profile adjustment

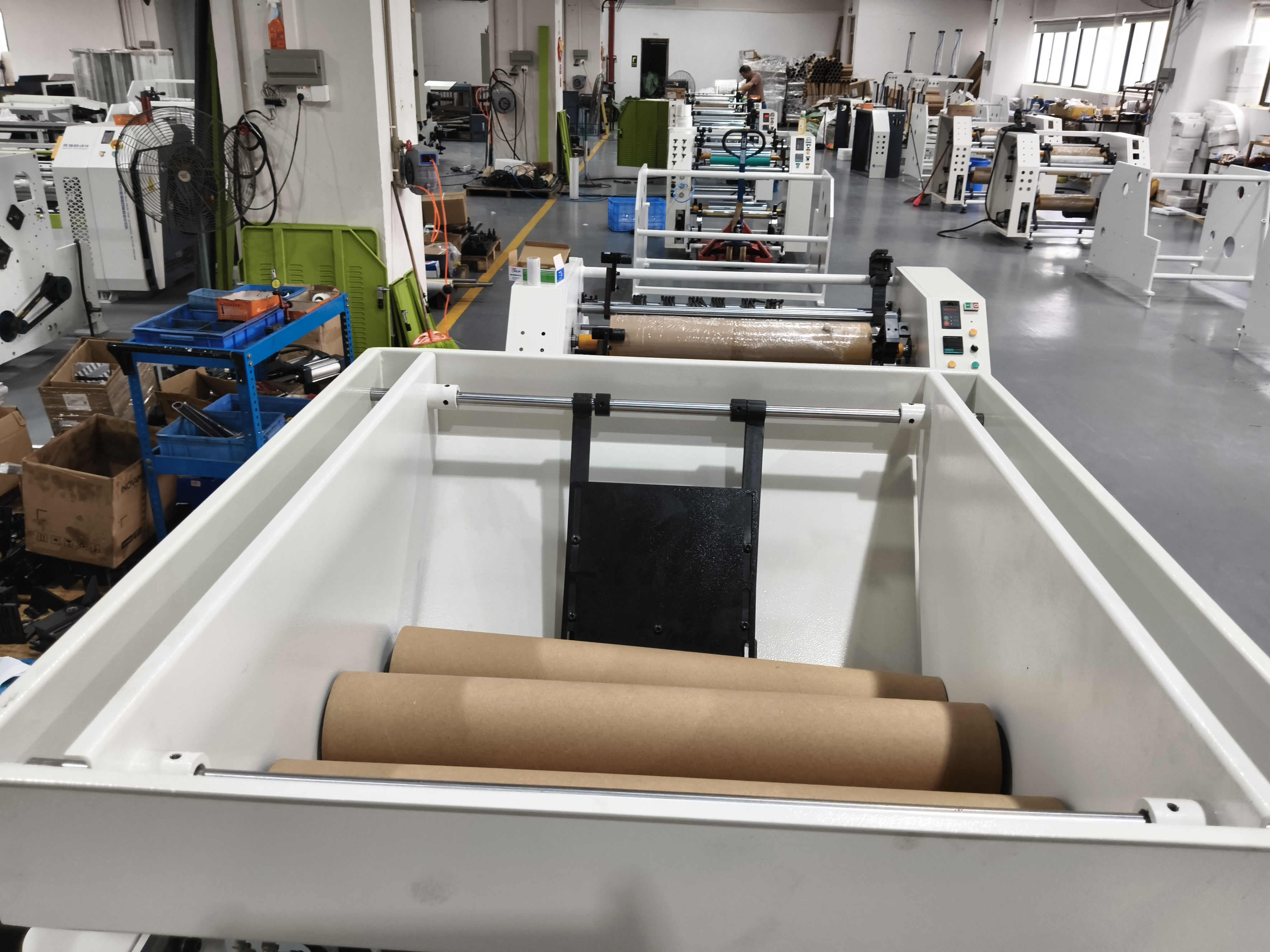

Guangdong Juexuan Automation Equipment Co., Ltd.—a specialist stretch film rewinding machine manufacturer with more than 5,000 customer cases across 80+ countries—offers remote technical support and on-site service to help resolve complex machine issues. Contact the Juexuan technical team or visit the FAQ section for additional guidance.
Q: How do I stop my stretch film from telescoping on a rewinding machine?
Telescoping is most commonly caused by excessive winding tension or lateral film drift. Start by reducing winding tension in small increments, then check and recalibrate the edge guide sensor. Also inspect all rollers for wear and verify they are parallel to each other within manufacturer tolerances.
Q: Why does my stretch film keep breaking during rewinding?
Film breaks during stretch film rewinding are typically caused by tension set too high, sharp edges on rollers or guides, or defects in the incoming PE film. Inspect all film contact surfaces for burrs, reduce winding tension, and check the dancer arm or tension sensor for erratic behavior. If breaks correlate with specific parent rolls, the root cause may be film extrusion quality.
Q: What is the difference between a cored and coreless stretch film rewinding machine?
A cored stretch film rewinding machine winds film onto a paper or plastic tube (core), which remains inside the finished roll. A coreless stretch film rewinding machine winds film without any inner support tube, relying on the film layers themselves for structural rigidity. Coreless rolls reduce material cost and waste but require precise inner-layer tension control to prevent collapse.
Q: How often should I perform maintenance on a PE film rewinding machine?
Routine maintenance intervals vary by machine model and production volume, but most stretch film rewinding machine manufacturers recommend daily cleaning of film contact surfaces, weekly roller and guide inspections, and monthly tension system calibration checks. Refer to your machine's instruction manual for model-specific maintenance schedules.
