Tension control is the single most critical variable in stretch film rewinding quality. When winding tension is too high, film deforms or tears; when it is too low, rolls become loose and unstable. Proper tension control in stretch film rewinding ensures consistent roll hardness, accurate geometry, and film integrity from the innermost layer to the outermost wrap.
This guide explains how winding tension control works, what happens when it fails, and how modern stretch film rewinder machines manage tension automatically to protect output quality.
Tension control in stretch film rewinding is the active regulation of the pulling force applied to the film web as it transfers from a jumbo source roll onto finished output rolls. A stretch rewinder machine must continuously adjust this force to compensate for changes in roll diameter, line speed, and film material properties throughout the rewinding cycle.
Without active tension control, the effective tension changes naturally as the roll grows in diameter—creating rolls that are tight at the core and loose at the outer layers, or vice versa. Neither outcome is acceptable for commercial stretch film.
Winding tension control directly determines five measurable quality outcomes in finished stretch film rolls:
Roll hardness consistency – Uniform tension produces rolls with even hardness from core to surface, which is essential for reliable dispensing during pallet wrapping.
Geometric accuracy – Controlled tension prevents telescoping (axial shifting of layers) and ensures rolls maintain a true cylindrical form.
Film clarity and surface quality – Excessive tension introduces internal stress that causes haze, micro-tears, or surface distortion in LLDPE and PE films.
Dimensional stability – Rolls wound under correct tension hold their shape during storage and transport without deforming or collapsing.
Layer adhesion – In stretch film, cling layers must remain properly oriented. Incorrect tension disrupts the cling-to-cling interface between wraps, reducing the film's load-holding performance.
High tension during stretch film rewinding compresses inner layers under the weight of outer layers, a phenomenon known as core crushing. This can permanently deform the paper core, make the roll difficult to load onto dispensing equipment, and cause the film to neck (narrow in width) or develop stress whitening.
Additional defects caused by over-tension include:
Star-shaped deformation at the roll ends
Blocked layers that resist unspooling cleanly
Reduced elongation at break in the finished film
When winding tension is too low, the film web cannot be packed tightly enough to form a stable roll. Common defects include:
Loose, soft rolls that shift or collapse under their own weight
Telescoping during rewinding or handling
Uneven layer density that causes inconsistent stretch during end-use application
Film slippage on the core, creating a loose center that jams dispensers
Modern stretch film rewinder machines use one or more of the following mechanisms to maintain consistent winding tension control across the full rewinding cycle:
A dancer roll floats between the unwind station and the rewind shaft, absorbing web fluctuations. Its position signals a feedback controller to increase or decrease drive torque, keeping tension stable even as line speed varies.
These devices regulate the resistance on the unwind shaft. As the source roll decreases in diameter, the clutch or brake adjusts torque output to keep the web tension constant.

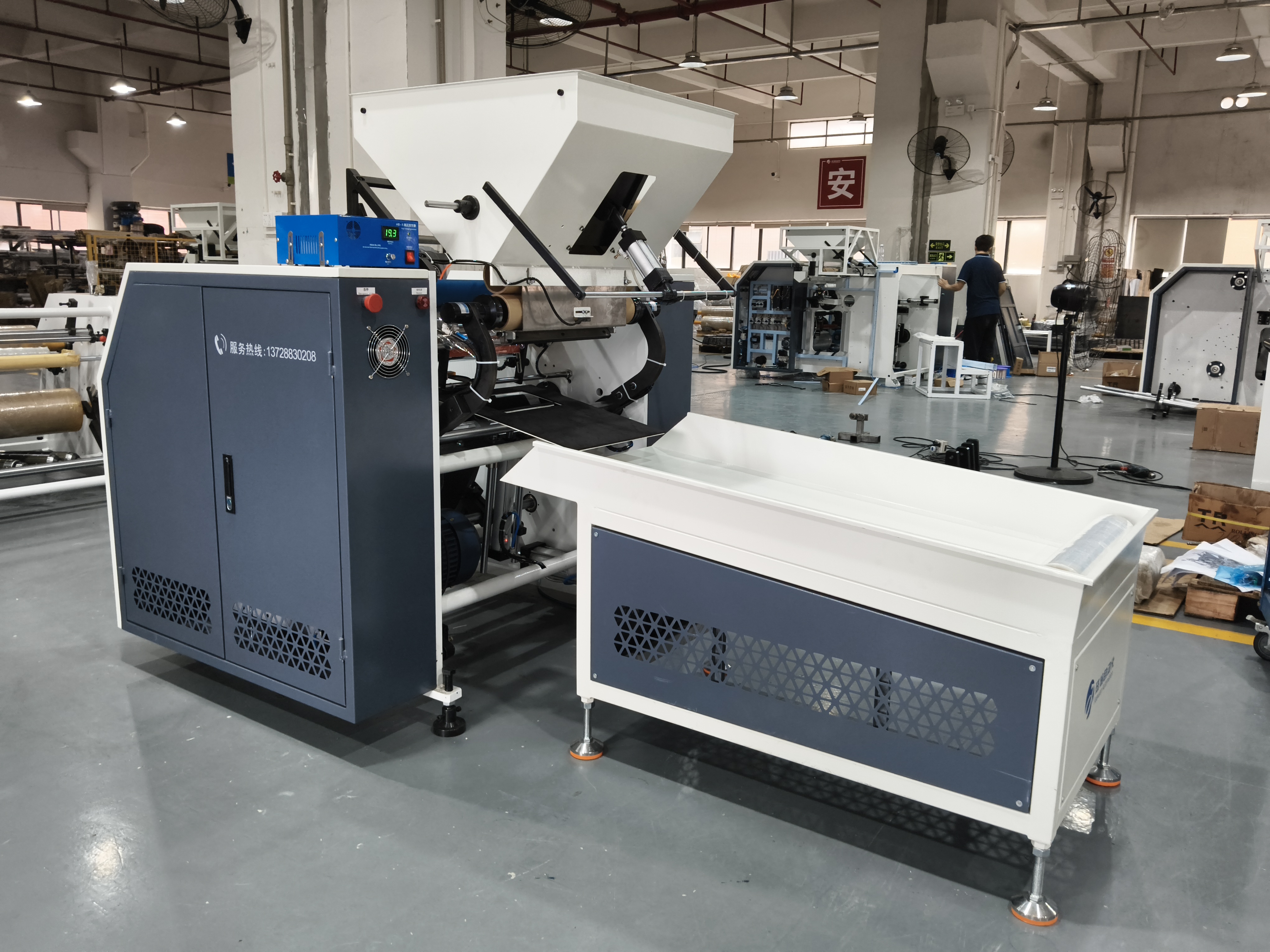

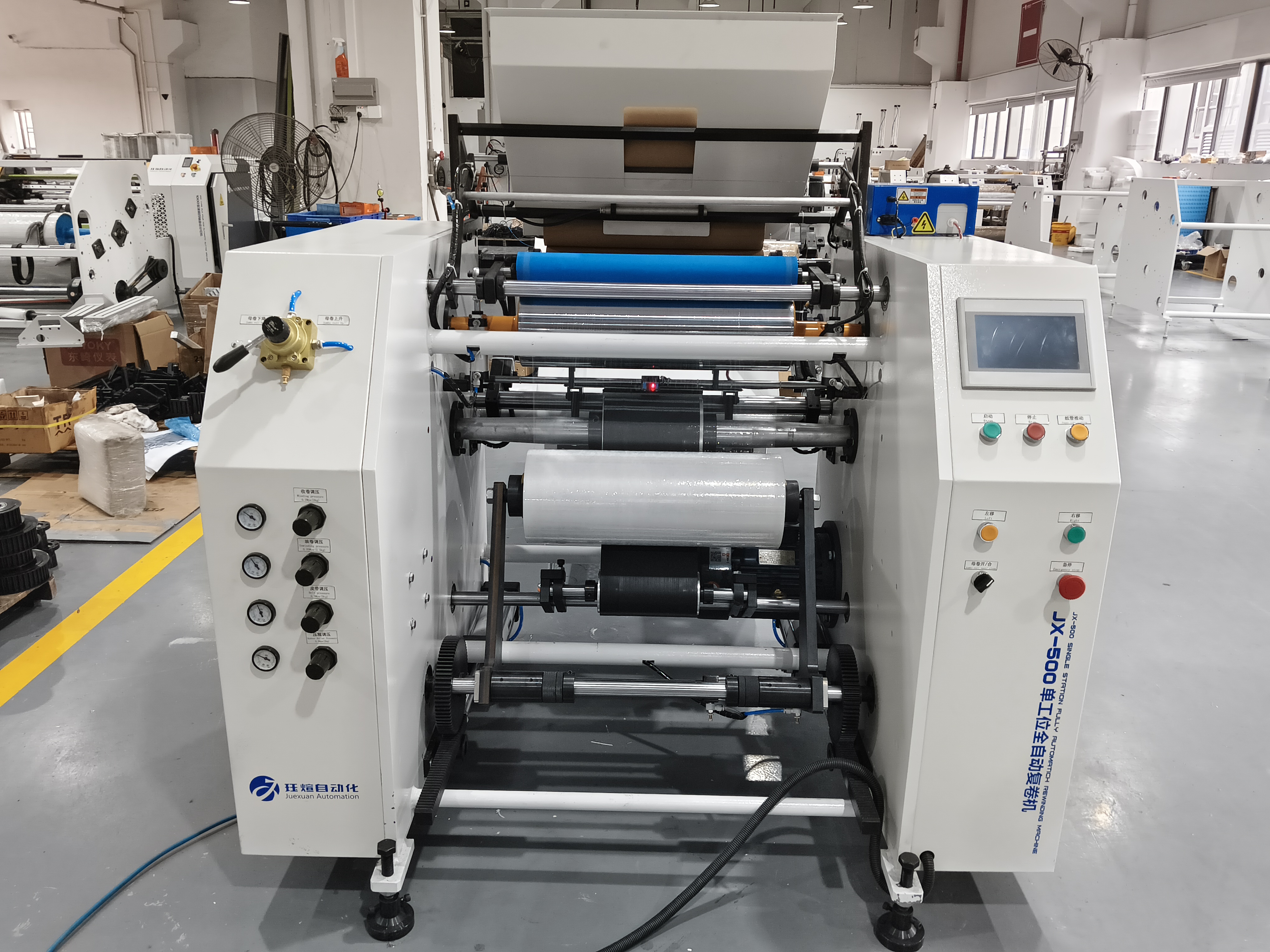

High-end stretch rewinder machines—such as those in Juexuan Automation's Fully Automatic Stretch Film Rewinding Machine Series—use servo motors with closed-loop tension feedback. Servo drives respond in milliseconds to diameter changes and speed variations, delivering the most precise winding tension control available. This is particularly important at high rewinding speeds (600–800 meters/minute), where manual or mechanical compensation cannot react quickly enough.
Taper tension is a programmed reduction in winding tension as roll diameter increases. Because larger-diameter rolls exert greater radial pressure on inner layers, reducing tension as the roll grows prevents internal stress buildup and core crushing. The taper ratio—how quickly tension decreases relative to diameter growth—is a key setup parameter on any quality stretch rewinder machine.
Different stretch film materials respond differently to winding tension, and a well-configured stretch rewinder machine must account for these differences:
Film Material | Tension Sensitivity | Key Consideration |
|---|---|---|
LLDPE (Linear Low-Density PE) | High | Prone to neck-in under excessive tension; requires precise taper control |
CPP (Cast Polypropylene) | Medium | Less elastic; tension windows are narrower |
CPE (Cast Polyethylene) | Medium-High | Susceptible to blocking at high tension |
POF (Polyolefin) | High | Thin gauge requires low, stable tension throughout |
Juexuan Automation's stretch film rewinding machines are engineered to handle LLDPE, CPP, CPE, PE, and POF films across processing widths from 500mm to 2,500mm, with tension parameters configurable per material profile.
Operators can identify winding tension control problems by inspecting finished rolls for the following defects:
Soft centers or hard outer layers – Indicates tension was too low early in the wind and too high at the end; taper tension settings need adjustment.
Telescoping rolls – Lateral web drift caused by uneven tension across the film width; check lateral tension distribution and guide alignment.
Roll barreling or saddling – Convex or concave roll profiles caused by uneven cross-web tension; inspect spreader roll condition.
Core slippage – Film slides on the core at startup; initial tension is too low or core-to-film friction is insufficient.
Surface wrinkles – Wrinkles running parallel to the machine direction indicate the web is running under too much tension relative to its modulus.
Achieving optimal stretch film rewinding quality through tension control involves a structured setup process:
Establish baseline tension – Set initial winding tension based on film gauge, width, and material type. A starting point of 10–15% of film tensile strength is common for LLDPE.
Configure taper tension – Set the taper ratio so tension decreases proportionally as roll diameter grows. A taper of 30–50% is typical for standard stretch film rolls.
Set acceleration/deceleration ramps – Tension spikes during speed changes cause defects; program soft ramp profiles on servo-driven machines.
Run a test roll and measure hardness – Use a roll hardness tester at the core, mid-roll, and outer layers. Adjust taper until hardness is within ±10% across all three zones.
Inspect geometry – Check for telescoping, barreling, or end-face irregularities and adjust lateral tension balance accordingly.
Document parameters per film grade – Save tension profiles in the machine's PLC for each material and roll specification to ensure repeatability.
Q: What is the correct winding tension for stretch film rewinding?
Correct winding tension for stretch film rewinding depends on film material, gauge, and roll diameter. For standard LLDPE hand wrap (15–25 microns), initial tension typically ranges from 5 to 20 Newtons per meter of web width, with taper tension reducing this by 30–50% as the roll builds. Always verify tension settings by measuring finished roll hardness across the roll profile.
Q: Can a semi-automatic stretch rewinder machine provide adequate tension control?
Semi-automatic stretch rewinder machines can provide adequate tension control for lower-speed operations and standard film grades, typically using dancer rolls or magnetic powder brakes. For high-speed rewinding above 300 meters/minute, or for thin or sensitive films, a fully automatic stretch film rewinder machine with servo drive tension control delivers significantly better consistency and fewer defects.
Q: How does rewinding speed affect tension control performance?
Higher rewinding speeds amplify tension disturbances. At speeds above 400–600 meters/minute, even small diameter changes or speed variations cause large tension fluctuations if the control system cannot respond fast enough. Servo-driven tension control systems, as used in Juexuan Automation's high-speed rewinding machines (view product range), compensate in real time and maintain stable tension at full production speed.
Q: What maintenance is required to keep tension control systems accurate?
Key maintenance tasks include inspecting dancer roll bearings for wear (which introduces measurement lag), checking magnetic powder clutch fill levels, calibrating load cell or tension transducer outputs against known reference weights, and verifying servo drive parameter integrity after firmware updates. Tension system maintenance should be performed at intervals specified in the machine manual, typically every 500–1,000 operating hours.
Consistent winding tension control is not a secondary parameter—it is the primary engineering variable that determines whether a stretch film rewinding operation produces sellable rolls or generates waste. Every quality defect in a finished stretch film roll, from core crushing to telescoping to surface distortion, traces back to a tension imbalance at some point in the rewinding cycle.
Selecting a stretch film rewinder machine with precise, closed-loop tension control—particularly servo drive systems with taper tension programming—eliminates the most common quality failures and enables consistent output across film grades, speeds, and roll specifications.
