A coreless stretch film rewinding machine rewinds jumbo rolls of stretch film into smaller, finished rolls without using a cardboard core. By eliminating the core entirely, this type of coreless rewinder reduces material costs, cuts packaging waste, and speeds up production—making it a preferred solution for high-volume stretch film manufacturers and converters.
This article explains exactly how a coreless rewinding machine works, what makes it different from standard cored rewinders, and why the distinction matters for your business.
Table of Contents
A coreless stretch film rewinding machine is a specialized piece of packaging equipment that produces coreless stretch film rolls—rolls with a hollow center formed during the winding process itself, rather than wound around a cardboard or plastic tube.
Unlike a standard rewinder, which requires a physical core to support each roll during winding, a coreless rewinder uses a mandrel or forming pin that is withdrawn after the roll is complete. The result is a finished roll that holds its shape without any core material remaining inside.
Coreless stretch film rolls are widely used in hand-wrap and machine-wrap applications where end-users want to reduce disposal costs and simplify roll changes.
A coreless rewinding machine works by feeding stretch film from a large jumbo roll, winding it around a temporary mandrel or forming pin to build roll structure, and then ejecting the finished coreless roll automatically. The key steps are:
Jumbo Roll Loading – A large master roll of stretch film is mounted on the unwind shaft. Tension controls keep the film feeding smoothly without stretching or wrinkling.
Film Feeding and Tension Control – The film passes through a series of guide rollers and a tension-regulation system. Consistent tension at this stage is critical to producing uniform, tight coreless rolls.
Coreless Winding – Instead of threading film onto a cardboard tube, the machine winds the film around a retractable mandrel or pin. The first few layers of film bond together under tension to form a self-supporting inner wall.
Mandrel Withdrawal – Once the roll reaches the preset diameter or weight, the mandrel retracts automatically, leaving a hollow center. This step is what defines coreless rewinding and distinguishes it from all cored winding methods.
Roll Cutting and Ejection – The film is cut cleanly, and the finished coreless roll is ejected onto a discharge conveyor or collection station. On fully automatic models, this entire sequence runs without operator intervention.
Repeat Cycle – The machine immediately begins the next winding cycle, maintaining continuous, high-speed output.

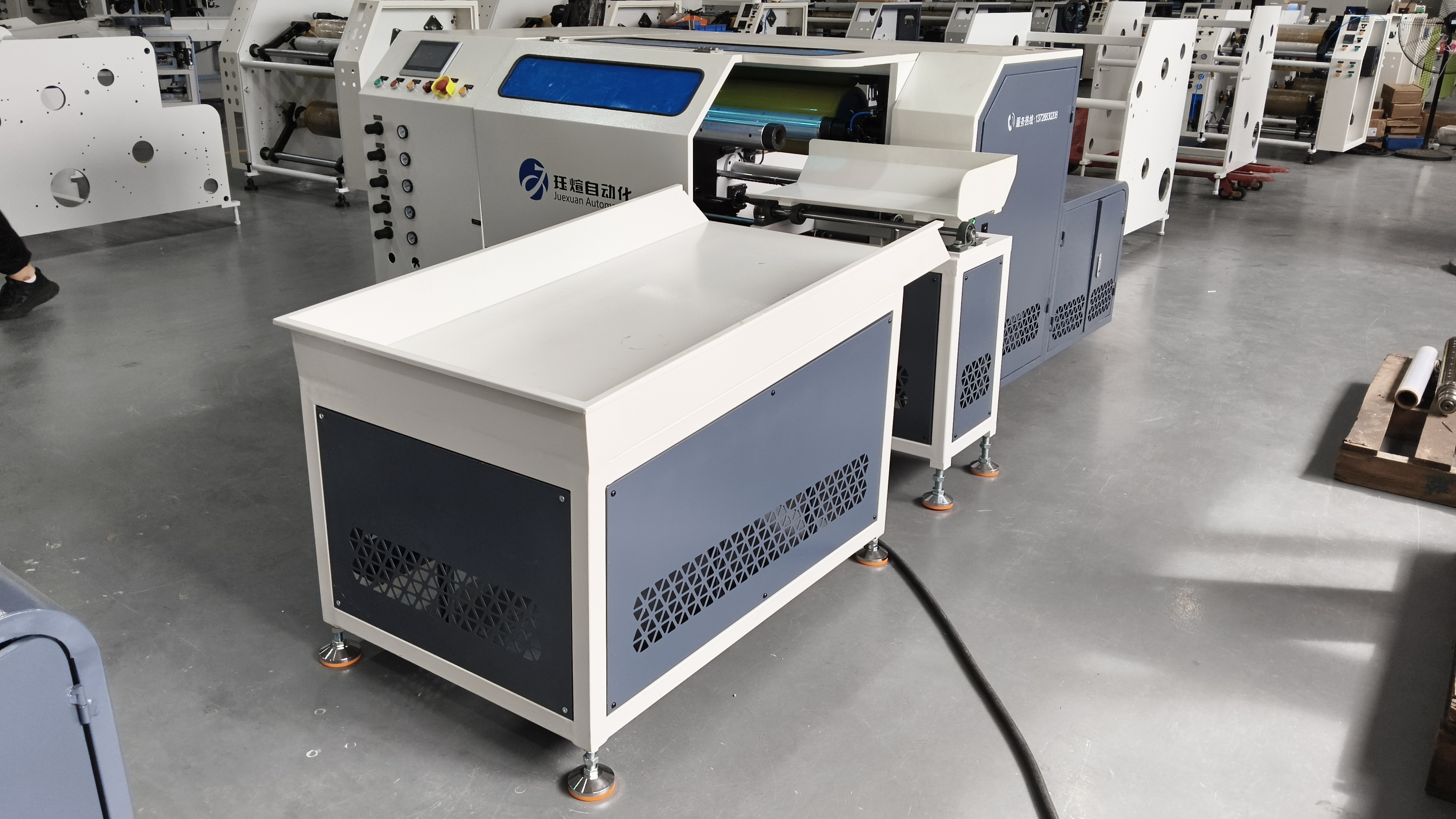

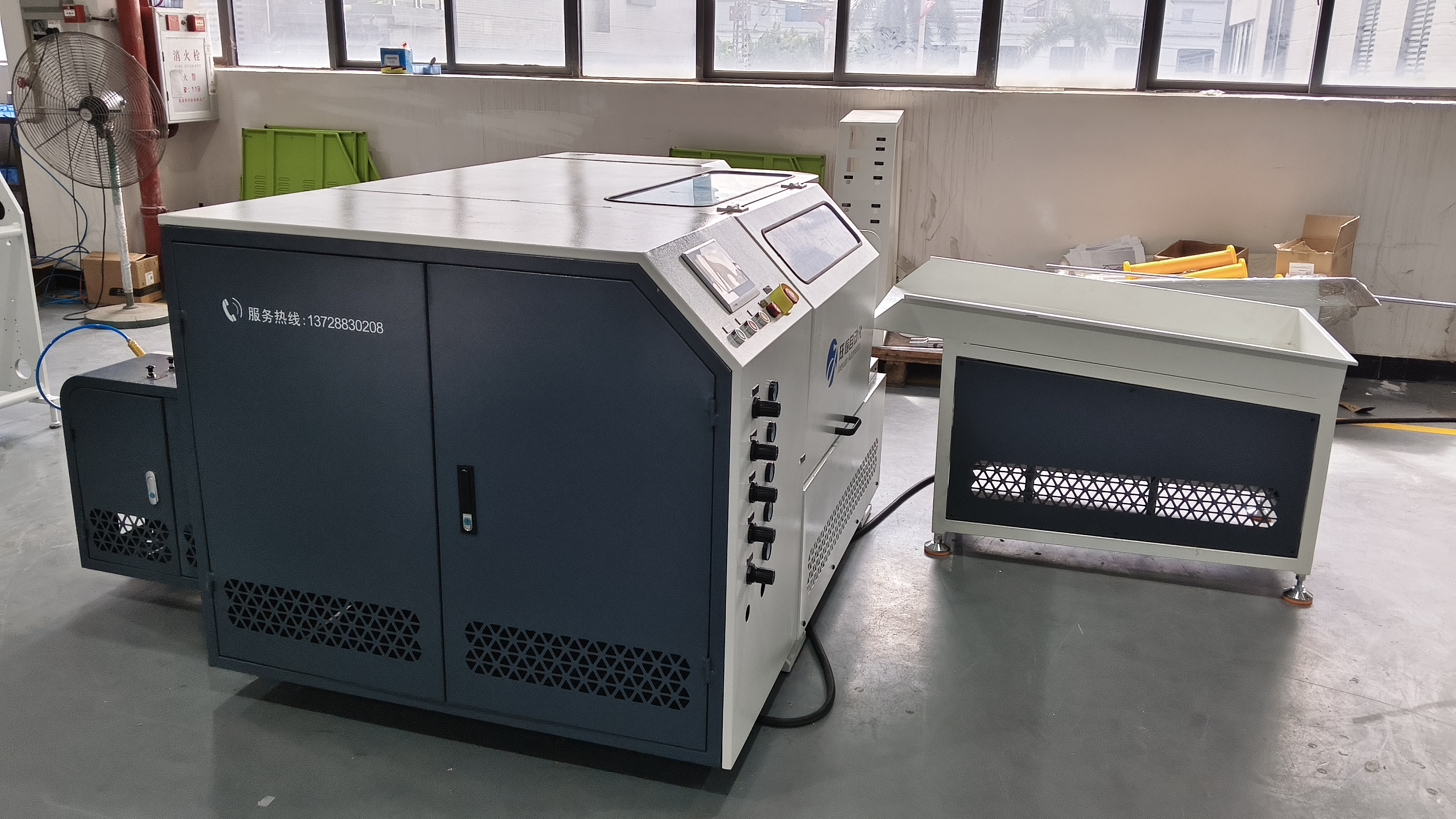

Juexuan Automation's Fully Automatic Stretch Film Coreless Rewinding Machine Series automates each of these steps, minimizing manual handling and maximizing throughput.
Choosing between a coreless rewinder and a standard cored rewinder depends on your production priorities, cost targets, and end-customer requirements.
Factor | Coreless Rewinder | Standard (Cored) Rewinder |
|---|---|---|
Core material cost | None | Ongoing cardboard/plastic cost |
Waste generated | Minimal | Core disposal required |
Roll change speed | Faster (no core to remove) | Slower |
Machine complexity | Higher (mandrel mechanism) | Lower |
Best suited for | High-volume, eco-focused operations | Versatile, general-purpose winding |
A coreless rewinding machine is better suited for manufacturers supplying retail or industrial end-users who prioritize sustainability and fast roll changes. A standard cored rewinder works best when roll rigidity is critical or when downstream equipment requires a core for mounting.
For a deeper comparison, see Juexuan Automation's article: Comparing Coreless And Standard Stretch Film Rewinders for Your Business.
Every cored roll requires a cardboard or plastic tube. Across thousands of rolls per day, that cost compounds quickly. A coreless stretch film rewinding machine removes this expense entirely, lowering per-roll material cost without changing the film itself.
Cardboard cores must be collected, sorted, and disposed of or recycled. Coreless rolls produce no such waste stream, simplifying operations and supporting environmental compliance targets—an increasingly important factor for brands and buyers in 2026.
Coreless stretch film rolls are faster to load on hand-wrap dispensers and automatic pallet wrappers because there is no core to thread or discard. This reduces downtime on packaging lines and improves end-user satisfaction.
Offering coreless stretch film allows manufacturers and converters to supply a product category that commands premium positioning in retail and industrial packaging markets, particularly in regions with strong sustainability regulations.
When evaluating a coreless rewinder, consider the following specifications:
Winding speed (m/min): Higher speeds increase output but require more precise tension control.
Roll diameter range: Ensure the machine can produce the roll sizes your customers require.
Degree of automation: Fully automatic models handle cutting, ejection, and cycle restart without operators; semi-automatic models require manual steps.
Mandrel design: The retraction mechanism should be robust and repeatable to maintain consistent hollow-core dimensions across every roll.
Film compatibility: Confirm the machine handles the film gauges (thickness) and widths relevant to your product range.
Integration capability: Look for machines that connect to upstream slitting lines or downstream packaging stations for a seamless production flow.
Juexuan Automation's coreless rewinding machines are engineered for fully automatic operation, offering precise tension management, automatic roll ejection, and compatibility with a range of stretch film specifications. View the full product range here: Fully Automatic Stretch Film Coreless Rewinding Machine Series.
Q: What holds a coreless stretch film roll together without a core?
A: The first layers of film wound under tension bond to themselves, forming a rigid self-supporting inner wall. The mandrel provides temporary shape during winding, then retracts once the roll is structurally stable.
Q: Can a coreless rewinding machine handle different film widths and gauges?
A: Most fully automatic coreless rewinders, including those in Juexuan Automation's series, are adjustable for multiple film widths and gauges. Specifications vary by model, so it is important to confirm compatibility with your film range before purchasing.
Q: How does a coreless rewinder affect production speed compared to a cored rewinder?
A: Coreless rewinders eliminate the step of loading a new cardboard core for each roll, which reduces cycle time per roll. On fully automatic models, the mandrel retraction and roll ejection are integrated into the machine cycle, so overall throughput is typically equal to or faster than comparable cored rewinders.
Q: Is a coreless stretch film rewinding machine more expensive to maintain?
A: The mandrel retraction mechanism adds mechanical complexity compared to a basic cored rewinder spindle. However, by eliminating core procurement and waste handling, the total operating cost over time is typically lower for high-volume operations.
