Choosing a coreless stretch film slitter is one of the most consequential equipment decisions a film converting operation can make. Get it right, and you gain a machine that reduces material waste, cuts labor costs, and scales with your output. Get it wrong, and you're stuck with a bottleneck that compounds every production shift.
The challenge is that coreless slitting machines vary widely in their capabilities. Processing speed, roll diameter, film compatibility, automation level—these aren't just numbers on a spec sheet. They determine whether a machine can realistically meet your production targets, handle your film types, and integrate smoothly into your existing workflow.
This guide breaks down the technical specifications that matter most when evaluating a paper core-free slitter, along with a comparison table to help you assess your options side by side.
A standard stretch film slitting machine winds finished film rolls onto paper or plastic cores. A coreless slitter eliminates that core entirely, forming rolls around a mandrel or internal support structure that is removed once winding is complete.
The practical implications are significant. No cores means no core inventory to manage, no core waste to dispose of, and reduced material costs per roll. For high-volume operations, these savings accumulate quickly. Coreless rolls also pack more efficiently, reducing storage and shipping costs downstream.
That said, coreless winding introduces its own mechanical demands. The machine must maintain consistent tension throughout the winding cycle without a rigid core to build on. This is why the technical specifications of a paper core-free slitter deserve careful scrutiny before purchase.
Processing speed is typically measured in meters per minute (m/min) and directly determines your output capacity. Entry-level coreless slitters operate in the range of 150–300 m/min, while advanced fully automatic models can reach 600–800 m/min.
Speed ratings should reflect real operational speed, not theoretical maximums. Some manufacturers list peak speeds that are only achievable under ideal conditions. When comparing machines, ask for verified production speeds under standard operating loads.
Not all stretch film slitters handle the same range of materials. The machine you choose should be compatible with the film types central to your production, which may include:
LLDPE (linear low-density polyethylene) — the most common stretch film substrate
CPP (cast polypropylene)
CPE (cast polyethylene)
PE (polyethylene)
POF (polyolefin shrink film)
Machines with broader material compatibility offer greater flexibility as your product range evolves. Manufacturers like Juexuan Automation, for example, engineer their equipment to handle all of the above materials across varying thicknesses and stretch ratios.
Processing width refers to the maximum width of the mother roll the machine can accept. Common ranges run from 500mm to 2500mm, with most commercial operations falling in the 500mm–1500mm range.
Your processing width requirement depends on your mother roll sizes. Selecting a machine with a processing width narrower than your widest rolls will create a hard ceiling on what the equipment can handle.
Coreless slitters produce finished rolls in specific diameter and weight ranges. Key parameters include:
Roll inner diameter: Typically 50mm or 76mm, depending on the mandrel configuration
Roll outer diameter: Usually capped at 200–300mm for hand film applications
Roll weight: Ranges from 1–3kg for hand film up to 15kg or more for machine film
These specifications must align with your customers' requirements or your downstream packaging processes.
Automation is one of the most impactful variables in a coreless slitter's total cost of ownership. The main tiers are:
Semi-automatic: Operators manually handle film loading, cutting, and roll removal. Lower upfront cost, higher labor requirement.
Fully automatic: The machine handles film loading, cutting, shaft changing, and roll unloading without manual intervention. Higher upfront cost, significantly lower labor cost per unit of output.

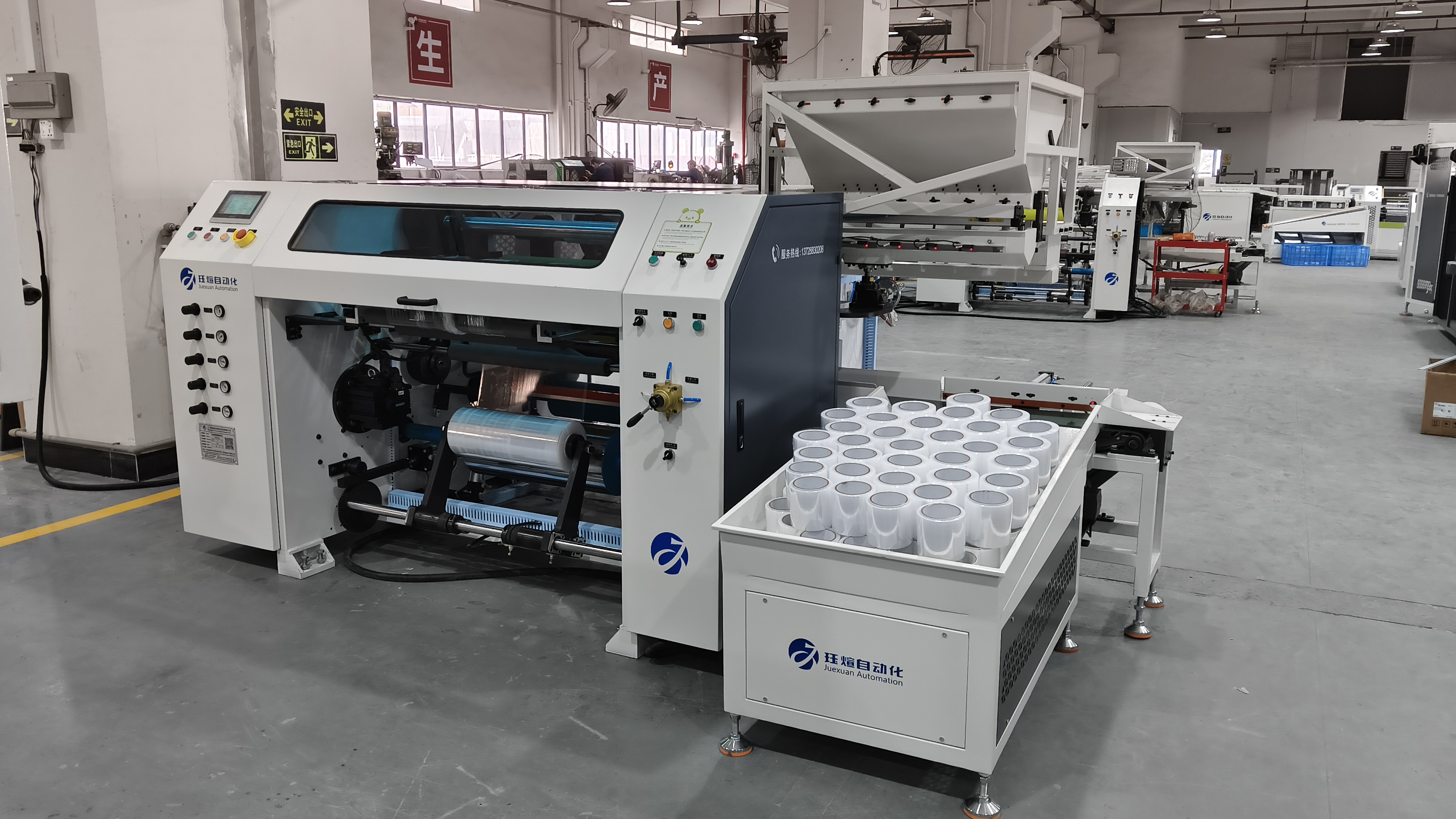

Fully automatic models—such as four-shaft rewinding and slitting machines—can run continuously across shifts, which dramatically improves throughput and reduces per-unit labor costs over time.
The drive system affects both speed consistency and long-term reliability. Servo drive systems offer precise tension control across the winding cycle, which is especially important in coreless winding where tension must be managed without a rigid core as a foundation.
Machines equipped with servo drives typically produce more consistent roll quality and are better suited to thinner or more sensitive film types.
Some manufacturers specify daily output in kilograms rather than—or in addition to—speed ratings. A machine rated at 2,500 kg/day gives you a concrete basis for capacity planning. This figure depends on film weight, roll size, and cycle time, so it's worth asking manufacturers to calculate this based on your specific film specifications.
Specification | Entry-Level | Mid-Range | High-Performance |
|---|---|---|---|
Processing Speed | 150–250 m/min | 300–500 m/min | 600–800 m/min |
Automation Level | Semi-automatic | Semi/Fully automatic | Fully automatic |
Processing Width | 500mm | 500–1000mm | 500–2500mm |
Drive System | Standard motor | Variable frequency drive | Servo drive system |
Daily Output | ~500–800 kg | ~1000–1500 kg | 2500+ kg |
Shaft Configuration | Single shaft | Dual shaft | Four-shaft |
Film Compatibility | LLDPE | LLDPE, PE, CPE | LLDPE, CPP, CPE, PE, POF |
Core Requirement | Core or coreless | Core or coreless | Fully coreless capable |
A machine with a clear, intuitive control interface reduces operator training time and minimizes setup errors. Look for machines that include touchscreen HMI systems with multilingual support if your team operates across language environments.
For export-oriented manufacturers or operations subject to workplace safety regulations, equipment certifications matter. CE and TUV certifications, for example, indicate that a machine meets European safety and performance standards—an important consideration when importing equipment.
Even the most reliable machines require maintenance. Evaluate whether the manufacturer offers remote technical support, accessible spare parts, and responsive service teams. Spare parts availability in your local market can significantly reduce downtime costs when components need replacement.
What is the difference between a coreless slitter and a conventional stretch film slitter?
A conventional slitter winds finished film rolls onto paper or plastic cores. A coreless slitter winds film without a core, using a mandrel or internal structure that is removed after winding. Coreless models eliminate core material costs and reduce waste.
What processing speeds should I expect from a fully automatic coreless slitter?
High-performance fully automatic models typically reach real operating speeds of 600–800 m/min. Semi-automatic models generally operate in the 150–300 m/min range. Always confirm real operational speed with the manufacturer rather than relying solely on rated maximums.
Which film types are compatible with coreless slitting machines?
Most modern coreless slitters are designed to process LLDPE, PE, CPE, CPP, and POF. The specific material range depends on the machine model. Confirm compatibility with your film specifications before purchasing.
How do I calculate the daily output I need from a slitting machine?
Multiply your target number of rolls per shift by the average roll weight, then multiply by the number of shifts you run per day. Compare this figure against the manufacturer's stated daily output capacity, factoring in realistic efficiency rates of 75–85% for automated lines.
What certifications should a stretch film slitter have?
For operations in Europe or those importing equipment internationally, CE and TUV certifications are standard benchmarks. These indicate compliance with safety and quality standards in key markets.
Technical specifications only tell part of the story. A machine rated for 800 m/min is only valuable if your production volumes justify the investment and your operators can run it consistently. The right coreless stretch film slitter is the one whose specifications align with your actual film types, your output targets, and your operational constraints—not just the machine with the highest numbers on paper.
Juexuan Automation offers a full range of coreless slitting and rewinding machines, from semi-automatic models suited to smaller operations to fully automatic four-shaft systems engineered for high-volume production. Their equipment is compatible with a broad range of film materials and ships to more than 80 countries. To discuss your specific requirements and get an equipment recommendation tailored to your production line, contact the Juexuan team directly.
