Manufacturing facilities frequently order raw stretch film in massive master rolls. These jumbo rolls are incredibly heavy. They are also far too wide for standard commercial applications. A factory cannot take a two-meter-wide roll of stretch film and use it directly on a standard pallet wrapping machine. The material must be resized before it moves to the next stage of production.
That is where a slitter rewinder comes into play. A slitter rewinder is a specialized machine dedicated to cutting large master rolls of material into smaller, narrower widths. By slicing the bulk material into more manageable sizes, the machine prepares the film for end-users, retail packaging, or further industrial processing.
Understanding how this equipment functions can completely change your approach to material handling. If your production line struggles with bottlenecks, upgrading your converting equipment might be the exact solution you need. This post explains the mechanical process behind these machines. You will learn how they operate, the benefits of modern automation, and why selecting the right equipment prevents costly material waste.
At its most basic level, a stretch film slitter rewinder machine performs three distinct mechanical actions. First, it unwinds the large master roll of film. Second, it slices that unwound film into several narrower strips. Finally, it rewinds those newly cut strips onto smaller individual cores.
This process sounds simple on paper. However, executing it flawlessly at high speeds requires incredible engineering. A modern slitter rewinder must maintain perfect tension control throughout the entire cycle. If the tension is too tight, the stretch film will warp, stretch, or snap. If the tension is too loose, the finished rolls will be sloppy, telescoped, and completely unusable for commercial distribution.
Operators rely on these machines to process a variety of materials. Typical applications include LLDPE, CPP, CPE, PE, and POF films. By feeding a bulk roll into the machine, a facility can output dozens of smaller rolls ready for immediate shipment to consumers or other businesses.
To fully grasp the value of this equipment, you need to look at the three main stages of operation. Each stage plays a vital role in producing a flawless final product.
The cycle begins at the unwind station. Operators load the heavy jumbo roll onto the machine using automated lifters or hoists. The machine then securely grips the core of the master roll. As the machine powers on, it begins feeding the wide film into the main body of the equipment. Advanced machines feature automatic edge guiding systems. These systems ensure the film feeds perfectly straight, preventing misalignment before the cutting even begins.
Once the film leaves the unwind station, it enters the slitting section. This is where the actual cutting happens. Precision roll slitting is essential for keeping the edges of the film clean and smooth. The machine uses a series of razor blades, shear blades, or score blades to slice the wide web of plastic into multiple narrower webs. The type of blade used depends heavily on the thickness and flexibility of the material being processed. Accurate cutting prevents edge damage, which is a leading cause of film breakage when end-users attempt to wrap pallets.
After the film is sliced into narrow strips, it travels to the rewind station. Here, the machine winds the strips onto smaller cardboard or plastic cores. Some highly advanced models even offer coreless rewinding technology. The machine must carefully control the speed and tension as the roll builds in diameter. Once the new rolls reach the desired length or weight, the machine automatically cuts the tails, seals the edges, and ejects the finished products.

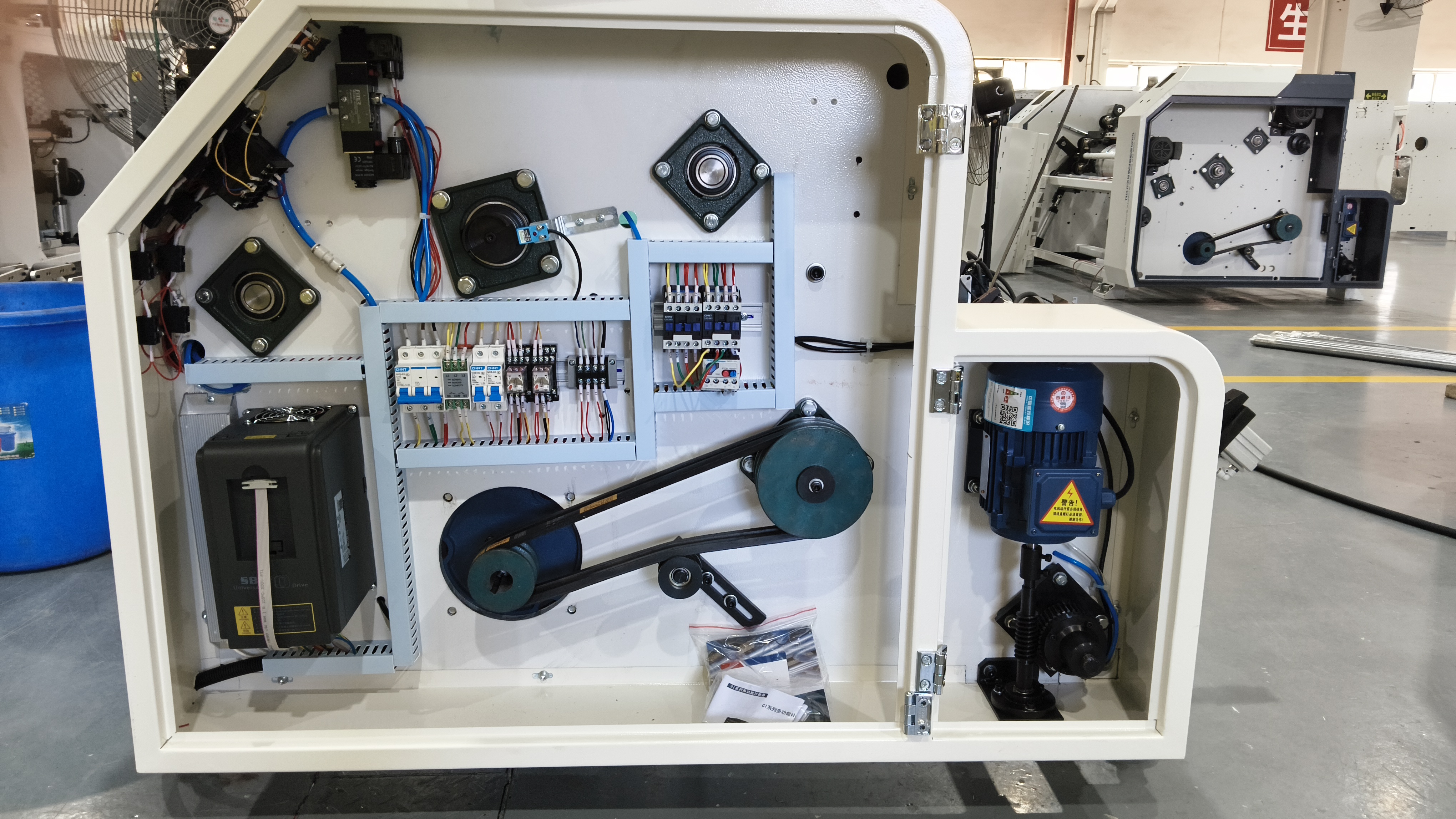

Relying on outdated or poorly manufactured equipment can severely hurt your bottom line. Investing in a good quality film slitting machine directly impacts your factory's daily output and material yield.
High-quality machines operate at exceptional speeds. For example, modern automated equipment can reach processing speeds of up to 600 to 800 meters per minute. This level of efficiency allows a single machine to produce over 2,500 kilograms of finished film per day. When you process material that quickly, you significantly reduce your labor costs and increase your overall production capacity.
Furthermore, premium machines reduce material waste. Poor slitting causes jagged edges and stretched film, forcing operators to throw away large sections of expensive raw material. A reliable machine guarantees smooth, clean cuts every single time. Many top-tier machines also feature automatic core loading, automatic film cutting, and automatic shaft changing. These automated features remove the risk of human error and keep the production line moving without unnecessary manual interventions.
Most industrial slitter rewinders handle a wide variety of flexible materials. This includes stretch film, PE, POF, CPP, and LLDPE. The exact material compatibility depends on the specific blade configuration and tension control systems of the machine.
Modern automated machines are surprisingly user-friendly. They typically feature intuitive touchscreen interfaces. Operators simply input the desired roll length, width, and speed. The machine handles the complex tension calculations and automatic roll changes, requiring minimal manual labor.
Coreless rewinding is a technology that allows the machine to wind the film into a tight roll without using a cardboard or plastic tube in the center. This reduces packaging waste, lowers shipping weights, and eliminates the cost of purchasing paper cores.
Transforming heavy master rolls into commercial-ready products requires precision, speed, and reliability. A high-performing slitter rewinder acts as the heartbeat of your converting operation. By automating the unwinding, cutting, and rewinding phases, you eliminate bottlenecks and maximize your material yield.
Take a close look at your current production line. If your facility struggles with inconsistent tension, ragged film edges, or slow manual changeovers, it is time to evaluate new equipment. Seek out intelligent, automated machinery that aligns with your specific production goals. By investing in reliable film converting technology today, you secure a more efficient and profitable operation for the future.
