Industrial packaging relies heavily on efficiency and precision. When manufacturing facilities receive raw stretch film, it usually arrives in massive master rolls. These jumbo rolls are incredibly heavy and far too wide for standard commercial applications. A factory cannot take a two-meter-wide roll of stretch film and use it directly on a standard pallet wrapping machine.
A stretch film slitter machine solves this exact problem. This specialized industrial equipment is specifically designed to cut and re-roll large wide stretch film master rolls into multiple smaller wide and short-length sub-rolls. By converting bulk material into manageable sizes, businesses can streamline their packaging workflows, reduce material waste, and improve overall production speed.
Understanding the mechanics behind this equipment will help you make informed decisions for your manufacturing or packaging facility. This comprehensive guide covers the fundamentals of stretch film slitting rewinding, compares different machinery types, and highlights key features to look for when upgrading your production line.
At its core, a stretch film slitter machine takes a bulky master roll of plastic film and transforms it into usable products. The equipment unwinds the large roll, passes the material through a series of precision blades to slice it to the desired width, and then rewinds the newly cut strips onto smaller cardboard or plastic cores.
These finished products are known as sub-rolls. They are the standard size rolls you typically see used in warehouses for wrapping pallets, securing boxes, or protecting goods during transit. The ability to customize the width and length of these sub-rolls gives manufacturers complete control over their packaging material specifications.
The process of stretch film slitting rewinding requires a high degree of tension control and mechanical precision. If the tension is too high, the film will stretch prematurely, losing its elasticity and compromising its ability to secure loads. If the tension is too low, the rewound roll will be loose, uneven, and prone to damage.
Modern machines use advanced servo drive systems to maintain consistent tension throughout the entire run. As the master roll unwinds, sensors monitor the speed and pull of the material. The slitting blades then cut the film cleanly without causing edge damage or fraying. Finally, the rewinding shafts collect the slit film tightly and uniformly.
Certain advanced systems even offer coreless technology. This allows the machine to rewind the film without a central cardboard tube, which significantly reduces packaging waste and lowers the overall shipping weight of the final product.
When selecting equipment for your facility, you must consider the volume of your production and the level of automation required. The market offers a wide spectrum of machines, from basic setups to highly sophisticated robotic lines.
For very small operations or specialized low-volume runs, operators might consider traditional setups. Using roll slitters manual requires an operator to physically load the master roll, thread the film, adjust the blades by hand, and monitor the entire rewinding process.
While manual machines have a lower initial setup cost, they are heavily dependent on operator skill. They also operate at much slower speeds and carry a higher risk of human error, which can lead to material waste and inconsistent sub-roll quality.
High-capacity manufacturing demands efficiency that manual labor simply cannot match. Fully automatic machines handle the entire process with minimal human intervention. They automatically load the master roll, position the cutting blades, load the empty tubes, cut the film, and unload the finished sub-rolls.
An automatic stretch film slitter machine can reach real process speeds of up to 800 meters per minute. This dramatic increase in speed allows facilities to process thousands of kilograms of film per day, slashing labor costs and ensuring a perfectly consistent final product every single time.
Choosing the right machine depends on your specific factory requirements. Juexuan Automation (https://www.jxfilmmachine.com/) is a leading manufacturer in this space, offering a variety of advanced options. Below is a comparison of their core models to help you understand the available technologies.
Machine Model | Operation Type | Key Features | Max Speed |
|---|---|---|---|
JX-500-4AS | Fully Automatic | Four shafts changing; automatic loading/cutting; automatic tube handling | 600 meters/min |
JX-500-4AR | Fully Automatic | Cored & coreless rewinding; four shafts system | 800 meters/min |
JX-500-2CAR | Fully Automatic | Two-shafts system; specialized for coreless rewinding | 600 meters/min |

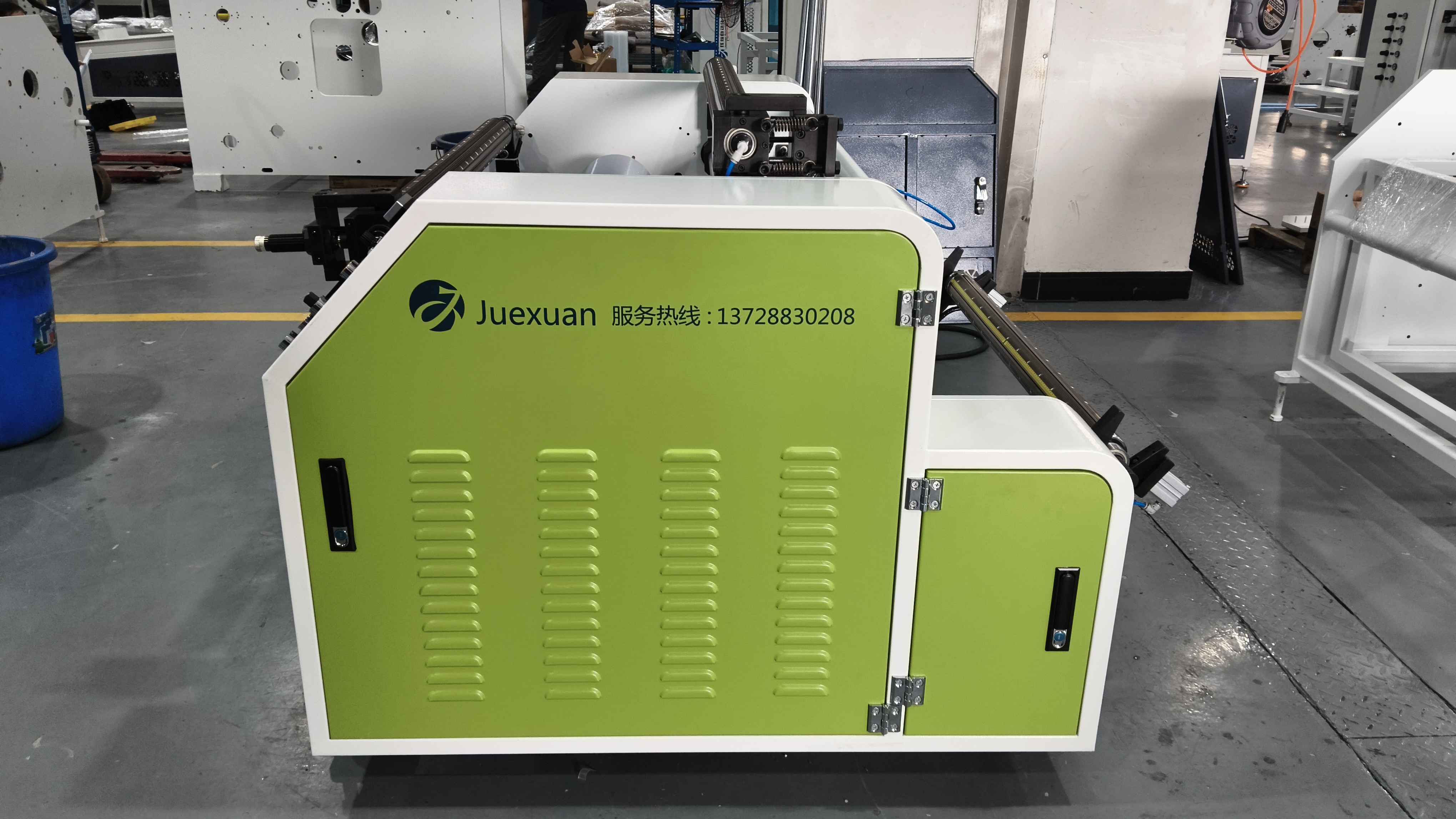

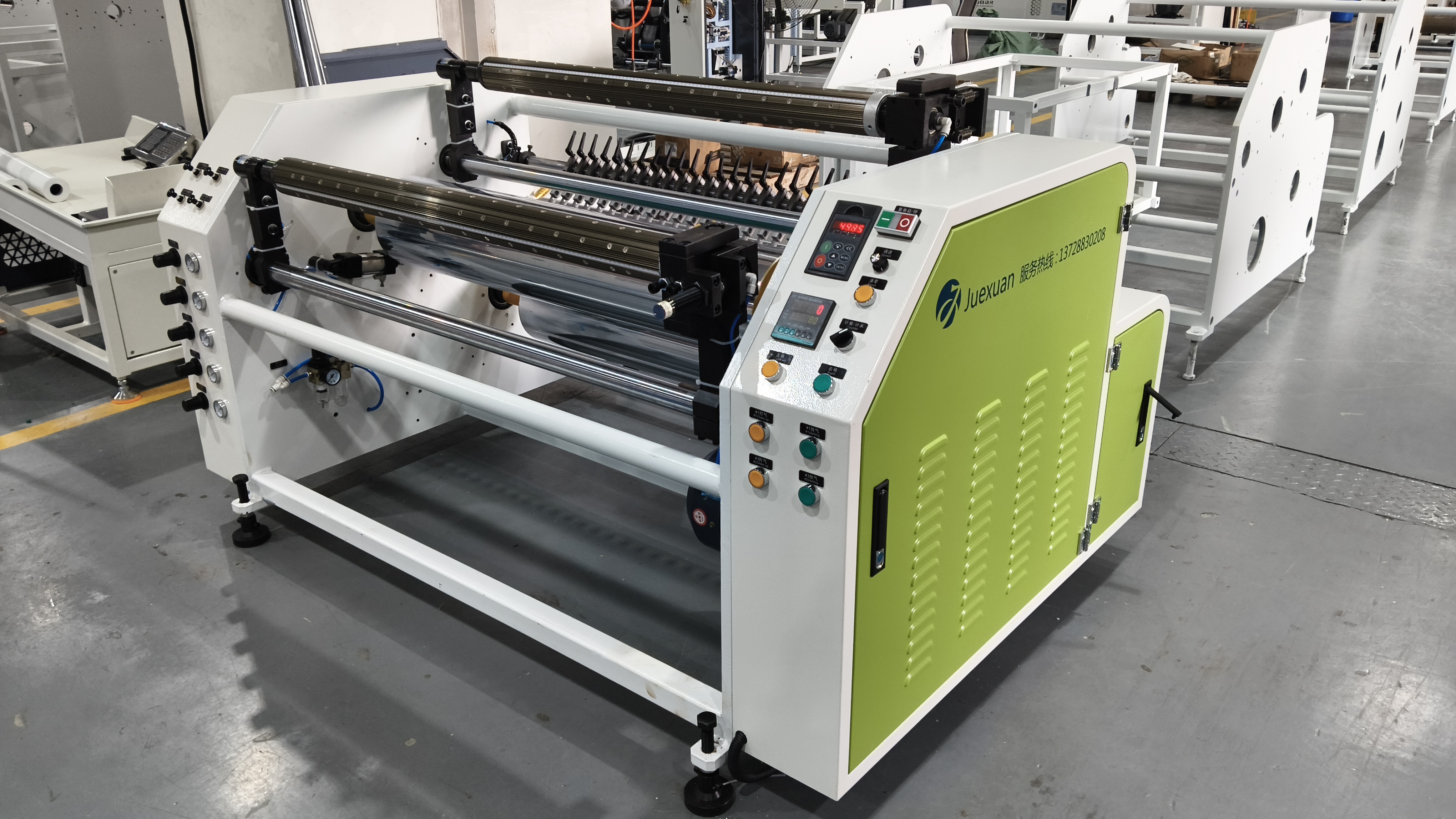

JX-1000-NP | Semi-Automatic | High-speed processing; suited for 1-meter widths | Variable based on operator |
Investing in modern stretch film slitting rewinding machinery provides immediate returns for high-volume packaging facilities.
First, automation directly increases your daily output. Machines equipped with automatic shaft changing and automatic film cutting operate continuously. You do not have to stop the machine to unload finished rolls, which eliminates major production bottlenecks.
Second, precision cutting reduces material waste. High-quality blades and consistent tension control ensure every millimeter of the master roll is converted into sellable or usable sub-rolls. You avoid the edge damage and uneven winding that frequently plague older or manual machines.
Finally, modern equipment offers incredible versatility. A single machine can often process various materials, including LLDPE, CPP, CPE, PE, and POF. You can easily adjust the settings to switch between producing standard cored rolls and eco-friendly coreless rolls, allowing you to adapt quickly to changing customer demands.
Converting heavy master rolls into easily manageable packaging materials requires the right technology. By understanding the intricacies of stretch film slitting rewinding, you can evaluate your current production line and identify areas for improvement.
Upgrading from slow, labor-intensive methods to high-speed automatic equipment will dramatically boost your output and improve the quality of your finished rolls. Evaluate your daily production volume, consider your material types, and explore the advanced machinery options available to take your manufacturing efficiency to the next level.
If you have any questions or need assistance, please don't hesitate to contact our customer service team. We are committed to providing you with the highest quality service and support.
Our customer support is available monday to friday: 8am-8:30pm.
What materials can a stretch film slitter machine process?
Most high-quality slitter rewinders are engineered to handle a variety of plastic films. This includes LLDPE (Linear Low-Density Polyethylene), CPP (Cast Polypropylene), CPE (Chlorinated Polyethylene), and POF (Polyolefin) shrink films.
Why is coreless rewinding becoming popular?
Coreless rewinding eliminates the need for cardboard tubes in the center of the stretch film roll. This reduces raw material costs, lowers the shipping weight of the final product, and helps companies meet environmental sustainability goals by generating less packaging waste.
How do I maintain consistent tension during rewinding?
Consistent tension is maintained through the machine's drive system. Modern automatic machines utilize advanced servo motors and automated tension controllers. These systems constantly read the film's speed and adjust the pull automatically, preventing the film from stretching out or winding too loosely.
