Stretch film looks simple, but poor manufacturing can create weak rolls, uneven stretch, and costly waste. A reliable process needs more than extrusion. It needs resin control, film forming, winding, slitting, rewinding, and testing. In this article, you will learn how stretch film is made and why a stretch film rewinding machine matters after jumbo roll production.
● Stretch film manufacturing starts with resin selection, usually based on LLDPE and performance additives.
● Cast extrusion and blown extrusion are the two main production routes.
● Extrusion forms the film, but it does not create final commercial rolls.
● Jumbo rolls need slitting and rewinding before they become hand rolls, machine rolls, cling film rolls, or coreless rolls.
● A stretch film rewinding machine helps control roll length, diameter, tension, edge neatness, and finished roll consistency.
● A stretch film slitter rewinder machine is useful when factories need different widths from large master rolls.
● Quality control should check thickness, elongation, puncture resistance, roll shape, and unwinding behavior.
● Stable tension control is important in extrusion, winding, slitting, and rewinding.
Stretch film must stretch without tearing too early. It must hold a pallet tightly, protect goods during storage, and unwind smoothly during wrapping. To achieve this, the manufacturing process must solve several problems at the same time.
The film needs consistent thickness, stable stretchability, good puncture resistance, proper cling, clean roll edges, and accurate roll size. If one part fails, the final roll may look usable but perform badly in real wrapping.
For example, uneven film thickness can create weak spots. Poor tension control can cause wrinkles or loose rolls. Bad rewinding can make the roll difficult to use on a wrapping machine.
The complete flow usually includes raw material preparation, extrusion and melting, film forming, cooling, thickness control, winding into jumbo rolls, slitting, rewinding, packing, and final inspection.
This means stretch film manufacturing is not one single machine step. Extrusion makes the film web. Winding creates the master roll. Slitting and rewinding turn the master roll into market-ready products.
Many people think stretch film is finished once it leaves the extrusion line. In reality, extrusion usually creates a jumbo roll. This roll is too large for most end users.
A stretch film rewinding machine converts jumbo rolls into smaller, usable rolls. It can support hand rolls, machine rolls, mini rolls, cling film rolls, and coreless rolls. Juexuan’s public product categories also show separate series for slitting, rewinding, coreless rewinding, and semi-auto rewinding and slitting equipment.
Note: Plan the finished roll size before production. It helps reduce changeover time and material waste.
Most stretch film starts with polyethylene resin. LLDPE is widely used because it gives a practical balance of stretch, strength, puncture resistance, and flexibility. Resin selection depends on the target product.
A hand stretch film may need easy stretching and smooth handling. A machine stretch film may need stronger elongation and stable unwinding. A heavy-duty pallet wrap may need better puncture resistance and load-holding force.
Additives can also change performance. Tackifier improves cling. UV stabilizers help outdoor storage. Pigments can create tinted or opaque film. These materials should be used carefully because too much additive may affect clarity, unwinding, or stretch behavior.
After resin selection, pellets are fed into the extruder. The screw pushes the material forward while heat melts it. The goal is to create a stable melt.
Stable melt temperature matters. If the resin is not melted evenly, the film may develop gels, rough areas, weak points, or uneven thickness. If the temperature is too high, the polymer may degrade. If it is too low, flow may become unstable.
The extrusion stage sets the base quality of the whole stretch film manufacturing process. Later machines can improve roll format, but they cannot fully fix poor film structure.
The molten resin must then become a thin film. This is usually done through cast extrusion or blown extrusion.
Cast extrusion uses a flat die. The molten film comes out as a sheet and passes onto chill rolls. This process is fast and stable. It is often used for high-volume stretch wrap production.
Blown extrusion uses a circular die. Air expands the molten tube into a bubble. The bubble cools as it moves upward or downward, then it is collapsed and wound.
The forming method affects clarity, puncture resistance, cling, noise, and cost. This is why two films with similar thickness may behave differently in use.
Cooling locks the film structure. It also affects dimensional stability and surface quality.
In cast production, chill rolls cool the film quickly. This often gives the film good clarity and a smooth surface. In blown production, air cooling is more gradual. It can help create strong film with better puncture resistance.
Cooling must be balanced with production speed. If the line runs too fast, the film may not stabilize enough. If cooling is uneven, thickness and flatness may suffer.
Gauge control is one of the most important parts of stretch film production. A thinner film can reduce material cost, but only if strength remains acceptable. A thicker film may feel stronger, but it may waste resin if the application does not need it.
Width control also matters. Poor edge stability creates waste during trimming and slitting. Web tension must stay stable across the line. If tension changes too much, the film may wrinkle, stretch unevenly, or wind poorly.
After cooling and thickness control, the film is wound into jumbo rolls. These master rolls are the base material for later conversion.
Jumbo roll quality affects every next step. If a jumbo roll has wrinkles, air pockets, telescoping, loose edges, or uneven hardness, the stretch film slitting machine or stretch film rewinding machine may face problems later.
A good jumbo roll should be stable, clean, and evenly wound. It should allow smooth unwinding during slitting and rewinding.
The conversion stage turns the jumbo roll into finished roll formats. This is where a stretch film rewinding machine becomes essential.
The machine unwinds the master roll, controls tension, rewinds the film onto a new core or coreless shaft, and creates rolls with the required length and diameter. For factories making multiple product types, this step provides flexibility.
A film rewinder machine can produce standard hand rolls. A cling film rewinding machine can support food wrap or cling film formats. A coreless stretch film rewinder can reduce paper core use. A stretch rewinder machine helps make roll production more consistent and easier to scale.
Tip: Do not judge rewinding only by speed. Roll tightness and edge quality affect customer use more.
Cast stretch film is made through a flat die. The molten resin flows onto chill rolls and cools quickly. The film is then trimmed and wound into jumbo rolls.
This process is efficient and suitable for large-scale production. Cast film usually has good clarity, smooth unwinding, and lower noise during use. It is common for standard pallet wrap, machine wrap, and retail packaging needs.
Blown stretch film is made through a circular die. Air expands the molten plastic into a bubble. The film cools as the bubble moves, then rollers collapse it into a flat web.
Blown film often has stronger puncture resistance and higher cling. It can work well for heavy loads, sharp edges, irregular pallets, or more demanding transport conditions.
Factor | Cast Stretch Film | Blown Stretch Film |
Manufacturing method | Flat die and chill rolls | Circular die and air bubble |
Clarity | Usually higher | Usually lower |
Unwinding noise | Quieter | Louder |
Puncture resistance | Good for standard loads | Stronger for tough loads |
Production efficiency | High | Often slower |
Typical use | Pallet wrap, machine wrap | Heavy or sharp-edged loads |
There is no single best process. Cast film is often preferred when customers need clear, quiet, and cost-efficient stretch wrap. Blown film is useful when strength and puncture resistance are more important.
The best choice depends on the load, storage environment, transport method, wrapping equipment, and target price. A manufacturer may use both methods to serve different markets.
A jumbo roll is efficient for production, but it is not practical for most users. Customers need rolls in specific widths, lengths, weights, core sizes, and packing styles.
For example, a warehouse may need machine rolls for pallet wrapping. A distributor may need hand rolls. A retailer may need smaller cling film rolls. One extrusion line can support many markets if the conversion process is flexible.

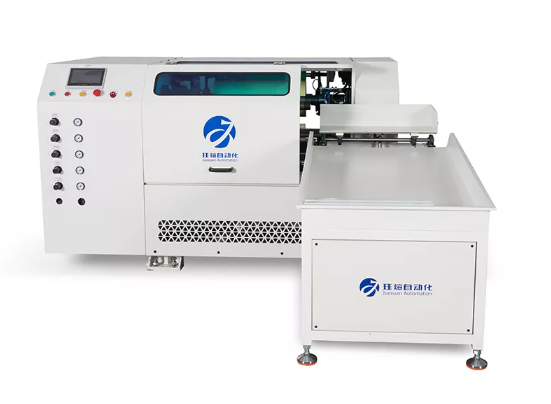

A stretch film rewinding machine rewinds large master rolls into smaller finished rolls. It controls roll length, roll diameter, winding tension, surface smoothness, and edge neatness.
Modern rewinding equipment may include automatic cutting, automatic loading, automatic unloading, servo drive control, and core or coreless rewinding functions. Juexuan’s homepage highlights automatic four-shaft changing, automatic film loading and cutting, automatic tube loading and unloading, servo drive systems, and cored or coreless rewinding capabilities.
This matters because finished roll quality affects the user’s wrapping process. A roll may contain good film, but poor rewinding can still cause uneven unwinding, roll collapse, or waste.
A stretch film slitter rewinder machine cuts jumbo rolls into narrower widths and rewinds them into finished rolls. This is important when factories need many roll sizes from one master roll.
Slitting quality affects roll edges. Poor slitting can create burrs, uneven sides, or film tearing during use. Accurate slitting also helps improve packing appearance.
A stretch film slitting machine is especially useful when production includes hand stretch film, machine stretch film, cling film, protective film, or customized roll widths.
Coreless rolls remove the cardboard core. This can reduce packaging waste and lower material handling weight. It is useful when customers want a cleaner roll format or less disposal waste.
However, coreless rewinding needs precise tension control. Without a paper core, the roll structure must stay stable by itself. If the tension is too loose, the roll may deform. If it is too tight, unwinding may become difficult.
Note: Coreless production needs both correct film properties and stable machine settings.
Thickness should be checked across the full film width. Even small variations can affect strength, stretch, and material cost.
A stable die, consistent melt flow, proper cooling, and accurate winding tension all help improve gauge consistency. This also reduces complaints related to weak film or uneven wrapping.
Tensile strength shows how much force the film can handle. Elongation shows how far it can stretch before breaking.
These tests help decide whether a roll is suitable for manual wrapping, machine wrapping, heavy pallets, or light packaging. They also help compare different formulations.
Puncture resistance matters when pallets have corners, sharp edges, or uneven surfaces. Tear behavior matters because a small cut can grow during wrapping or transport.
Film formulation, extrusion type, cooling, thickness, and additives all influence puncture and tear resistance.
Finished rolls should have clean edges, smooth surfaces, stable hardness, and easy unwinding. Poor roll appearance often points to tension problems, slitting defects, or rewinding errors.
The stretch film rewinding machine should be adjusted according to film thickness, roll width, target diameter, and core type. Thin film needs more precise control because it can wrinkle or stretch too easily.
Tip: Always test the finished roll on real wrapping equipment, not only in the lab.
Waste can come from startup scrap, edge trim, unstable gauge, poor roll formation, or rejected rolls. Manufacturers can reduce waste by stabilizing resin feeding, melt filtration, temperature control, and die adjustment.
Process data is useful here. It helps operators find the cause of repeated defects instead of guessing.
High speed looks attractive, but it can create problems if cooling, tension, and winding cannot keep up. Excessive speed may cause wrinkles, poor gauge control, roll defects, or unstable edges.
A stable process is often more valuable than maximum speed. The goal is consistent output, not short bursts of high production.
Different films need different settings. Cast film and blown film may need different winding tension. Thin-gauge film needs gentle control. Cling film may need special attention during unwinding.
Coreless rolls, pre-stretched rolls, colored film, and customized widths also need suitable rewinding parameters.
Before production, define roll width, length, thickness, core size, roll weight, packing style, and labeling requirements. Clear specifications help reduce mistakes.
Rewinding and slitting equipment supports these requirements by making roll conversion more flexible. This also helps factories respond to small-batch or customized orders.
Uneven thickness may come from unstable melt flow, die issues, poor temperature control, or cooling imbalance. Regular gauge monitoring helps catch this early.
Operators should inspect both the film web and finished rolls. Some problems become clearer after rewinding.
Wrinkles may come from poor web alignment, incorrect tension, uneven winding pressure, or bad jumbo roll quality. A web guide and correct rewinding tension can reduce this issue.
Poor roll formation can also happen when the film is wound too tightly or too loosely.
Weak stretch may come from poor resin selection, contamination, bad cooling, over-thin film, or incorrect additives. Testing elongation and puncture resistance can help identify the cause.
If tearing happens during rewinding, check web tension, slitting blades, and edge quality.
Noisy unwinding can relate to film type, cling level, roll tightness, or surface friction. Difficult unwinding often means the roll is wound too tight or has uneven tension.
Adjusting the stretch film rewinder can improve roll behavior and reduce waste during use.
Stretch film manufacturing needs stable extrusion, cooling, winding, slitting, rewinding, and testing. A good film must stretch well and unwind cleanly. Guangdong Juexuan Automation Equipment Co.,Ltd. provides stretch film rewinding and slitting equipment for roll conversion. Its machines support automation, cored rolls, coreless rolls, and flexible production needs. They help factories improve output, reduce waste, and deliver cleaner finished rolls.
A: A stretch film rewinding machine converts jumbo rolls into smaller finished rolls.
A: It is often faster and clearer for standard production.
A: Slitting creates the required roll width for users.
A: Yes, if it supports coreless rewinding.
A: Causes may include poor resin, bad cooling, or uneven tension.
