A 2-shaft stretch film rewinder suits smaller-scale or coreless operations, while a 4-shaft stretch film rewinder is designed for high-volume production lines that demand continuous, automated output. Choosing the wrong configuration leads to bottlenecks, wasted labor, and higher per-roll costs. This guide breaks down both options so procurement teams and production managers can make a confident, data-backed decision.
A stretch film rewinding machine converts large-diameter jumbo rolls of stretch film into smaller, user-ready hand rolls or machine rolls by slitting and rewinding the film onto individual cores at controlled tension. This process — known as stretch film converting — is the foundation of hand roll and machine roll stretch film production.
Rewinders are available in manual, semi-automatic, and fully automatic configurations. Within the fully automatic category, shaft count is one of the most important structural choices: 2-shaft or 4-shaft.
A 2-shaft stretch film rewinder uses two winding shafts that alternate between rewinding and unloading cycles. When one shaft is actively winding film, the other is being unloaded or reloaded. This configuration is well suited to:
Coreless rewinding applications — where no paper tube is required, reducing material cost and environmental waste
Mid-volume production lines — where output requirements do not justify the investment in a 4-shaft system
Operations prioritizing flexibility — such as producers running multiple roll widths or frequently switching between product SKUs

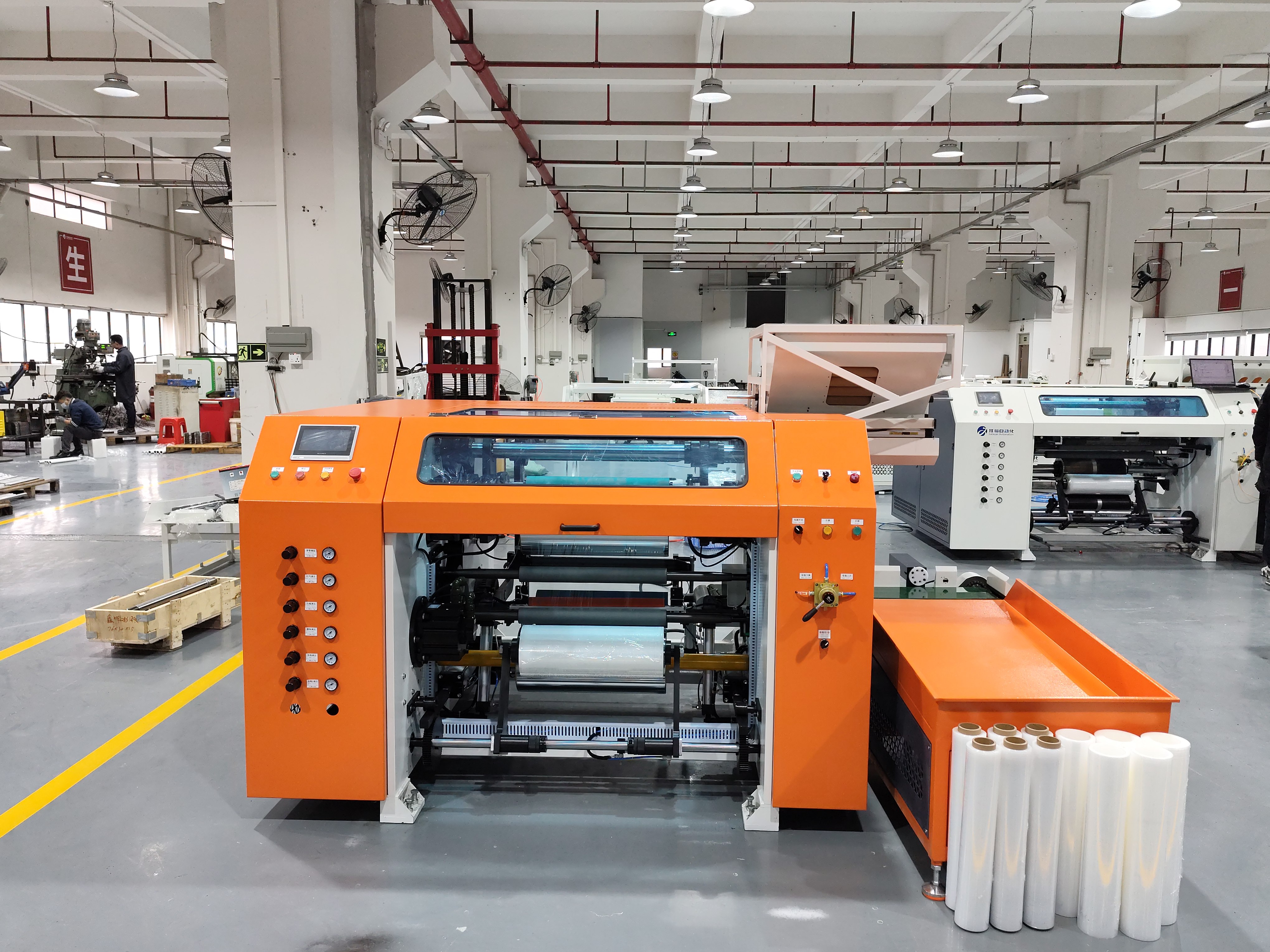

A representative model is the JX-500-2CAR, a fully automatic coreless 2-shaft rewinding machine capable of processing speeds up to 600 meters per minute, with a daily output of up to 2,500 kilograms. It supports 50mm and 76mm sub-rolls and handles both automatic film loading and cutting.
2-shaft rewinders are better suited for teams that prioritize coreless output, lower upfront equipment cost, or require faster SKU changeovers between runs.
A 4-shaft stretch film rewinder — also called a four-shaft rewinding machine — uses four winding shafts in a synchronized alternating cycle. While two shafts are actively winding, the other two are simultaneously unloading finished rolls and reloading new cores. This near-continuous operation dramatically reduces downtime between cycles.
The 4-shaft configuration is designed for:
High-throughput production lines — where output targets exceed what a 2-shaft system can reliably sustain
Cored and coreless rewinding — many 4-shaft machines handle both formats, increasing line versatility
Fully automated workflows — with automatic tube loading, automatic film cutting, and servo-driven tension control
Representative models from Juexuan Automation include:
JX-500-4AS — a fully automatic four-shaft rewinding and slitting machine, with real process speeds up to 600 meters per minute, automatic shaft changing, automatic film loading and cutting, and automatic tube loading and unloading
JX-500-4AR — a fully automatic cored and coreless four-shaft rewinding machine equipped with a servo drive system, capable of reaching real speeds up to 800 meters per minute
JX-1000-4MAS — a 1-meter-wide automatic four-axis slitting machine for wider-format stretch film production
4-shaft rewinders are better suited for teams that operate high-volume, continuous production lines, require both cored and coreless output from a single machine, or are scaling toward lights-out automation.
Feature | 2-Shaft Rewinder | 4-Shaft Rewinder |
|---|---|---|
Winding Shafts | 2 | 4 |
Cycle Continuity | Alternating (brief downtime) | Near-continuous |
Max Speed (representative) | Up to 600 m/min | Up to 800 m/min |
Coreless Capability | Yes (primary use case) | Yes (cored + coreless) |
Automation Level | Fully automatic available | Fully automatic |
Ideal Output Volume | Mid-range | High-volume |
Changeover Flexibility | Higher | Moderate |
Typical Investment Level | Lower | Higher |
The right stretch film rewinder depends on three core procurement criteria:
1. Production Volume
If your daily output target exceeds 2,500 kg, or if your production line runs continuously across multiple shifts, a 4-shaft configuration is the more efficient choice. For mid-volume operations or those with variable run lengths, a 2-shaft system provides sufficient capacity with greater flexibility.
2. Roll Format Requirements
If your customers require coreless rolls — which reduce cardboard core waste and lower per-roll material cost — a 2-shaft coreless rewinder like the JX-500-2CAR may be the most direct fit. If your product range includes both cored and coreless formats, a 4-shaft machine such as the JX-500-4AR offers both in a single platform.
3. Automation and Labor Goals
Both configurations are available in fully automatic variants from professional rewinder manufacturers like Juexuan Automation. However, the 4-shaft design inherently reduces idle time per cycle, meaning it delivers higher output per labor-hour at scale. For operations with aggressive automation targets, the 4-shaft system provides a clearer path to reduced headcount and higher throughput.
Guangdong Juexuan Automation Equipment Co., Ltd. is a national high-tech enterprise based in Dongguan City, Guangdong Province — one of the world's leading manufacturing centers. Juexuan specializes in the research, development, production, and service of stretch film rewinding and slitting intelligent equipment.
Juexuan's machines handle a wide range of film materials including LLDPE, CPP, CPE, PE, and POF, with processing widths from 500mm to 2,500mm. The company has obtained CE, TUV, and other domestic and international certifications, and its equipment has been exported to more than 80 countries and regions across Europe, North America, South America, Africa, and Asia. Juexuan has established long-term strategic cooperation with more than 500 enterprises and accumulated more than 5,000 global customer cases.
Explore the full range of fully automatic stretch film rewinding machines, coreless rewinding machines, and slitting machine series at jxfilmmachine.com.
Q: What is the difference between a 2-shaft and a 4-shaft stretch film rewinder?
A 2-shaft stretch film rewinder uses two alternating winding shafts, making it well suited to coreless applications and mid-volume production. A 4-shaft (four-shaft) rewinding machine uses four shafts in a near-continuous cycle — two winding while two unload and reload — delivering higher throughput and reduced downtime, making it the preferred choice for high-volume, automated production lines.
Q: What does a four-shaft rewinding machine cost compared to a 2-shaft model?
A 4-shaft rewinding machine typically carries a higher upfront cost than a 2-shaft model, reflecting its greater mechanical complexity, servo drive systems, and higher output capacity. The per-roll production cost, however, generally decreases as volume increases, improving ROI for high-throughput operations. Contact Juexuan Automation directly at jxfilmmachine.com/contactus.html for a tailored quote based on your specific production requirements.
Q: Can a stretch film rewinder handle both cored and coreless rolls?
Yes. Certain models — such as Juexuan's JX-500-4AR — support both cored and coreless rewinding in a single machine. Coreless-only models, such as the JX-500-2CAR, are optimized specifically for coreless output and offer an environmentally friendly alternative by eliminating paper tube waste.
Q: What film materials can stretch film rewinding machines process?
Juexuan's stretch film rewinders are engineered to process a broad range of film materials, including LLDPE (linear low-density polyethylene), CPP (cast polypropylene), CPE (chlorinated polyethylene), PE (polyethylene), and POF (polyolefin). Processing widths range from 500mm to 2,500mm depending on the model.
Q: How long is the delivery time for a stretch film rewinder from Juexuan Automation?
Standard delivery time is approximately 30 days. For larger or multi-unit orders, delivery scheduling is confirmed after order placement. Contact the Juexuan team at juexuan009@juexuanxu.com or via WhatsApp at +86-13712630134 for current lead times.
