The choice between cored and coreless stretch film depends on your end-use requirements, distribution channel, and production volume. Cored stretch film is wound onto a 50mm or 76mm paper core and is widely used in retail and light-duty packaging. Coreless stretch film eliminates the paper core entirely, reducing material waste and cost—making it the preferred format for high-volume industrial pallet wrapping. For converters who need to produce both formats, a dual-mode cored and coreless rewinding machine like the JX-500-4AR offers the most efficient solution.
Cored stretch film is stretch wrap wound around a rigid paper or plastic core—typically 50mm or 76mm in diameter. The core gives the roll structural stability and makes it compatible with standard hand-held dispensers and roll holders. Cored film is better suited for retail environments, light-duty packaging operations, and end-users who require easy manual application.
Best for: Retail packaging, light-duty wrapping, hand-application dispensers.

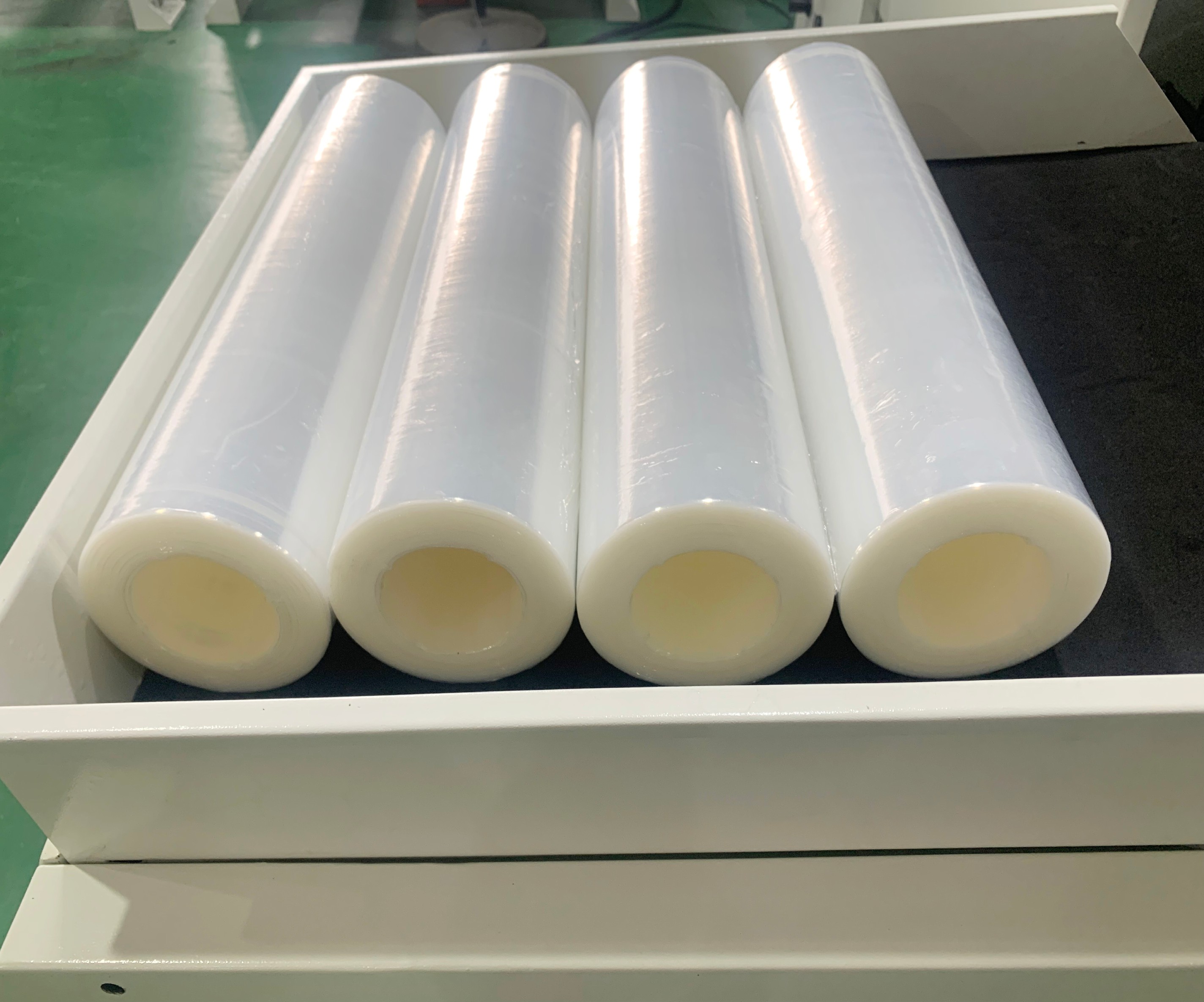

Coreless stretch film is produced without a central paper core. The film is wound directly onto itself using a mandrel-based rewinding process, then released as a self-supporting roll. Coreless rolls reduce per-unit material cost, eliminate core disposal waste, and are preferred by industrial users wrapping pallets at high volumes.
Best for: Industrial pallet wrapping, eco-conscious operations, high-volume distribution.
Feature | Cored Stretch Film | Coreless Stretch Film |
|---|---|---|
Core material | 50/76mm paper core | None |
Typical end-use | Retail, light-duty | Industrial pallet wrap |
Material cost | Higher (core included) | Lower |
Waste | Core disposal required | Zero core waste |
Dispenser compatibility | Standard roll holders | Coreless-compatible dispensers |
Roll weight (max) | Up to 8 kg (JX-500-4AR) | Up to 8 kg (JX-500-4AR) |
Coreless vs. Cored Stretch Film Rewinding: Best ROI? →

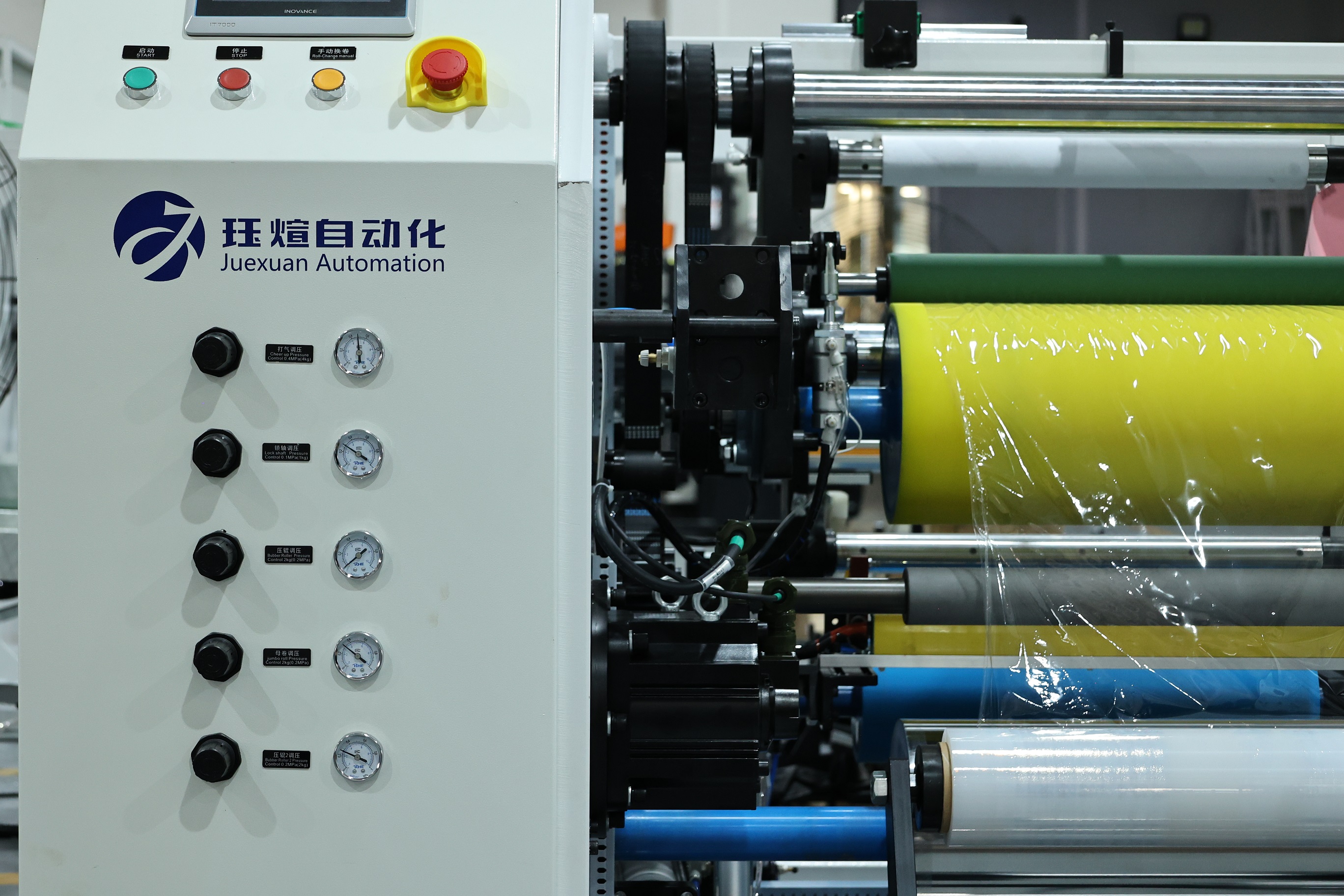

The JX-500-4AR Fully Automatic Stretch Film Cored & Coreless Four-Shafts Rewinding Machine, manufactured by Juexuan Automation, eliminates the need to choose between cored and coreless production. It seamlessly switches between both modes on a single production line—making it the most versatile stretch film converting solution for converters who supply multiple market segments.
The JX-500-4AR's most distinguishing feature is its multi-purpose design. It switches between cored rewinding (for standard 50/76mm paper cores) and coreless rewinding (for roll-to-roll applications without cores) without requiring a separate machine. This flexibility supports diverse production needs—from retail packaging rolls to industrial pallet wrap—on one compact footprint.
With a daily output of 3,500 kg (12-hour shift) and a mechanical design line speed of 1,000 m/min, the JX-500-4AR outperforms traditional semi-automatic rewinders by approximately 3x. Each finished sub-roll reaches a stable weight of up to 8 kg, ensuring consistent batch quality across extended production runs.
The entire rewinding workflow—from mother roll feeding through to sub-roll cutting—is automated and controlled by a dual 4.4 kW servo system. Automatic roll change, pressure roller adjustment, and emergency stop functions reduce manual intervention and minimize human error. A film waste rate of less than 1% keeps material costs low.
The control panel supports automatic/manual mode switching and real-time production monitoring. Operators can adjust mother roll tension or sub-roll pressure with a single touch. The system automatically alerts operators when paper core replacement is required, reducing unplanned downtime.
Parameter | Specification |
|---|---|
Model Number | JX-500-4AR |
Film Width | 300–500 mm |
Sub-roll Core | 50/76 mm |
Sub-roll Diameter (max) | 180 mm |
Mechanical Design Line Speed | 1,000 m/min |
Servo System | 4.4 kW × 2 |
Mother Roll Diameter (max) | 500 mm |
Mother Roll Width | 300–500 mm |
Daily Output | 3,500 kg (12 h) |
Overall Dimensions (L×W×H) | 2,250 × 2,040 × 1,700 mm |
Weight | 2,200 kg |
Cost Reduction: Combining cored and coreless production in one machine cuts equipment investment by up to 50% compared to purchasing two separate rewinders. The servo-controlled tension system keeps the film waste rate below 1%, directly lowering material costs per kilogram of output.
Quality Consistency: Precise four-shaft tension control prevents wrinkles, telescoping, and uneven thickness in finished sub-rolls—meeting strict packaging film quality standards for both retail and industrial customers.
Space Optimization: The JX-500-4AR's compact footprint replaces what would otherwise require two machines, making it well-suited for converting facilities with limited floor space.
Scalability: A daily output of 3,500 kg (12-hour shift) supports high-volume orders without sacrificing roll quality, enabling converters to grow their customer base across both cored and coreless market segments simultaneously.
Juexuan Automation manufactures the JX-500-4AR to strict industrial standards:
Component Reliability: Critical components—including servo motors and pressure rollers—are sourced from trusted brands such as INOVANCE and undergo 100-hour load testing before shipment.
Safety Compliance: The machine includes emergency stop buttons, overheat protection, and pressure overload alerts to maintain operator safety.
Warranty and Service: A 12-month warranty covers all core components. Global technical support is available 24/7 for troubleshooting and maintenance guidance.
Q: What is the main difference between cored and coreless stretch film rewinding?
Cored rewinding winds stretch film onto a rigid 50mm or 76mm paper core, producing rolls compatible with standard hand-held dispensers. Coreless rewinding uses a mandrel process to form self-supporting rolls without any core, reducing material cost and waste—preferred in industrial pallet wrapping applications.
Q: Can one machine produce both cored and coreless stretch film rolls?
Yes. The JX-500-4AR from Juexuan Automation is specifically engineered to switch between cored and coreless rewinding modes on a single production line, eliminating the need for two separate machines and reducing capital expenditure by up to 50%.
Q: What daily output can I expect from a dual-mode cored and coreless rewinding machine?
The JX-500-4AR achieves a daily output of 3,500 kg over a 12-hour shift, operating at a mechanical line speed of up to 1,000 m/min. Individual sub-rolls reach a stable finished weight of up to 8 kg.
Q: Is coreless stretch film more cost-effective to produce than cored film?
Coreless stretch film typically carries a lower per-unit production cost because it eliminates the expense of paper cores and reduces disposal requirements. However, cored film commands a premium in retail channels where dispenser compatibility is required. A dual-mode machine allows converters to serve both markets from one production line.
Q: What film widths does the JX-500-4AR support?
The JX-500-4AR processes stretch film widths from 300 mm to 500 mm, matching mother roll widths in the same range with a maximum mother roll diameter of 500 mm.
For a tailored equipment recommendation or competitive quotation within 24 hours, contact Juexuan Automation's expert team.
