TL;DR: To properly maintain high-speed coreless stretch film rewinders, operators must clean guide rollers daily, monitor unwinding tension controllers, and lubricate mechanical parts weekly. Regular maintenance prevents film curling, stops inner hole collapse, and ensures the stretch film rewinder consistently reaches optimal processing speeds of up to 600 meters per minute.

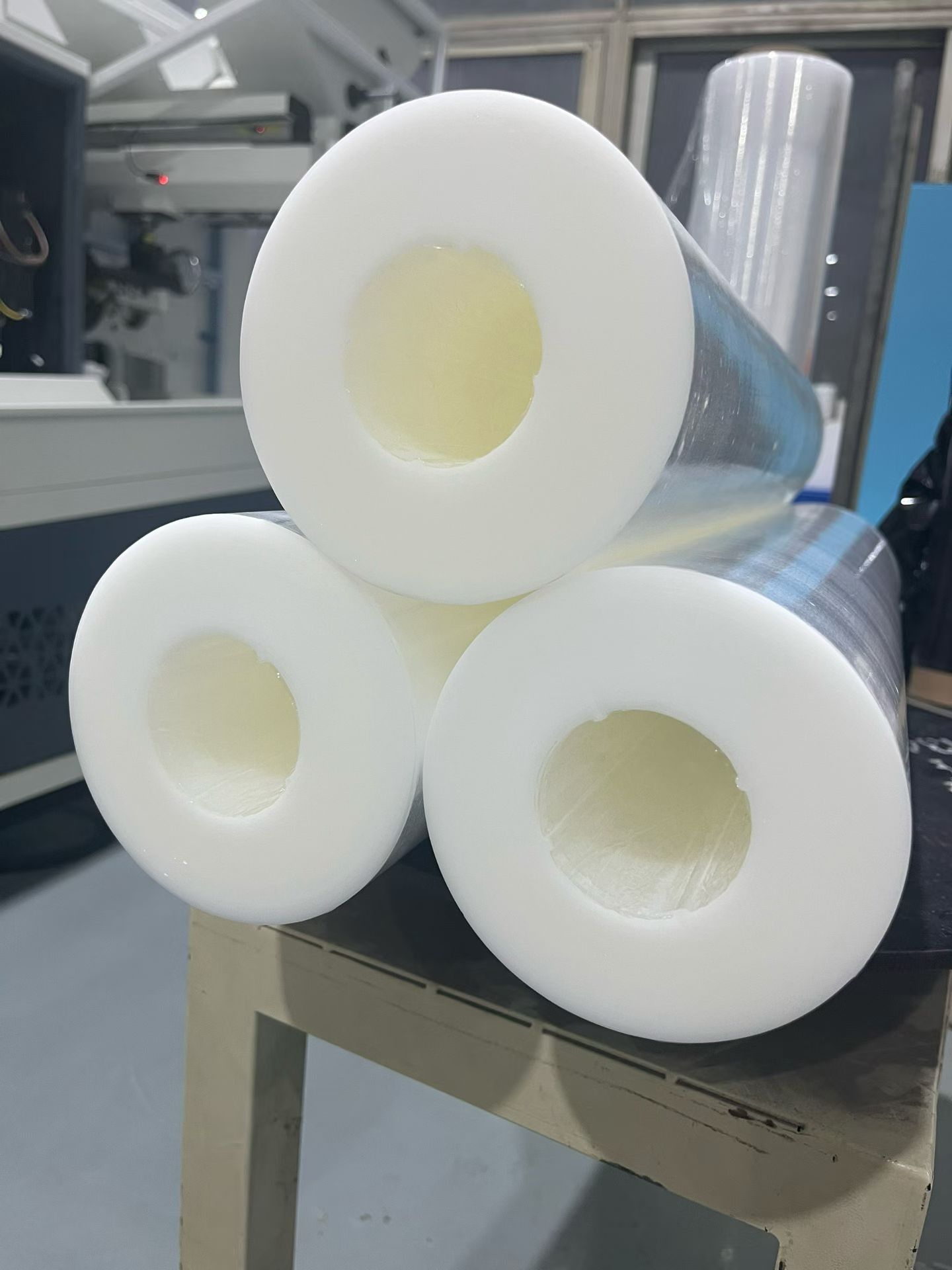

High-speed coreless stretch film rewinders represent a significant investment for any packaging facility. These advanced machines transform large master rolls of plastic film into smaller, highly usable coreless rolls without the need for traditional cardboard tubes. By removing the cardboard core, manufacturers reduce waste and lower shipping costs.
However, running equipment at speeds reaching up to 600 or even 800 meters per minute puts immense stress on mechanical components. Parts wear down, tension controllers drift out of calibration, and dust accumulates on sensitive sensors. A lack of proper upkeep quickly leads to defective film rolls and expensive operational downtime.
This step-by-step guide outlines exactly how to care for your packaging equipment. Following a strict maintenance protocol extends the lifespan of the machinery and guarantees consistent product quality.
Keeping a high-speed coreless stretch film rewinder in peak condition requires a proactive approach to mechanical care. Operators must address small inconsistencies before those minor issues cause complete system failures.
Film curling is a common defect that compromises the quality of the final roll. Operators can fix film curling by adjusting the machine's tension settings or by cleaning the guide rollers. Dust and adhesive residue naturally build up on the rollers during high-speed operation. This residue creates uneven friction across the plastic film, which pulls the edges inward. Cleaning the guide rollers with industrial-grade alcohol wipes twice a day removes this buildup and ensures consistent tension across the entire width of the stretch film.
A loose roll often points to a malfunctioning unwinding tension controller. The unwinding tension controller manages the exact amount of resistance applied to the master roll. If this controller fails, the machine winds the film too loosely. Operators must recalibrate the tension controller using the digital interface to resolve loose rolls.
Furthermore, inner hole collapse occurs when the rewinding torque is set too high. Excessive torque squeezes the center of the coreless roll so tightly that the center hole crushes inward upon completion. Operators prevent inner hole collapse by carefully managing the torque settings based on the specific thickness of the LLDPE or PE film being processed.
A comprehensive stretch film rewinder user guide focuses heavily on safety and precision. Properly operating a china coreless rolls rewinder line requires specific pre-operation checks and careful parameter management.
Before pressing the start button, the machine operator must complete a physical inspection of the rewinder line. The operator must verify that the master roll is securely locked into the unwinding shaft. Next, the operator should inspect the slitting blades for dullness or chips, as damaged blades create jagged film edges. Finally, the operator must confirm that all safety guards and emergency stop buttons function correctly. According to safety data [Juexuan Automation, 2026], verifying safety sensors prevents severe workplace injuries during automated roll changes.
Modern high-speed coreless stretch film rewinders feature intelligent servo drive systems. Operators input the desired film length, tension levels, and slitting widths directly into the touch-screen interface. For standard LLDPE stretch film, operators should set the initial processing speed to 300 meters per minute. Once the machine establishes a smooth, consistent wind, the operator can safely increase the speed up to 600 meters per minute. Gradually increasing the speed prevents sudden film tearing.
Establishing a rewinder regular maintenance schedule provides a clear roadmap for facility technicians. Breaking tasks down by frequency ensures no component gets overlooked.
Daily maintenance focuses on cleaning and basic visual inspections. Machine operators should execute the following tasks at the end of every shift:
Wipe down all rubber and aluminum guide rollers with a lint-free cloth.
Clear away any loose plastic scraps from the cutting blade area.
Inspect the air pressure gauges to ensure the pneumatic systems hold consistent pressure.
Check the core spraying nozzles for blockages and clean them if necessary.
Weekly and monthly tasks require more mechanical knowledge and often fall to dedicated maintenance technicians.
Weekly: Technicians must lubricate the main drive chains and bearing housings with high-temperature machine grease. Proper lubrication reduces metal-on-metal friction. Technicians should also inspect the electrical cabinet filters and vacuum out any accumulated dust.
Monthly: The maintenance team must test the alignment of the unwinding and rewinding shafts using a laser leveling tool. Misaligned shafts cause uneven wear on the machine and produce lopsided film rolls. The team should also replace any dull slitting blades to maintain perfectly clean cuts.
Purchasing the right equipment initially makes long-term maintenance much easier. Finding reliable coreless rolls rewinder line suppliers requires evaluating their technical support and component availability.
Choose a supplier that uses universally available replacement parts if your facility lacks a dedicated importing department. When a machine breaks down, waiting weeks for a proprietary sensor ships from overseas costs the company thousands of dollars in lost production.
Furthermore, select a supplier with robust after-sales support. Suppliers like Guangdong Juexuan Automation Equipment Co., Ltd. offer online repair team support and clear instruction manuals. Choose an automated machine with a built-in servo drive system if your goal is to maximize daily output while minimizing manual labor.
Implementing a strict maintenance schedule transforms an unpredictable packaging line into a highly efficient operation. By cleaning guide rollers, monitoring tension controllers, and lubricating drive chains, operators protect their high-speed coreless stretch film rewinders from catastrophic failures.
To improve your facility's output, print out the maintenance schedule detailed above and attach a copy directly to your rewinding machine. Train your operators on the daily cleaning tasks, and schedule a meeting with your maintenance team to lock in the monthly alignment checks. Consistent care guarantees consistent profits.
Routine rewinder maintenance costs very little, primarily involving the price of industrial lubricants, cleaning wipes, and replacement slitting blades. However, ignoring routine maintenance leads to major mechanical failures, which frequently cost thousands of dollars in replacement motors and lost production time.
Daily rewinder maintenance takes approximately 15 to 20 minutes to complete. An operator simply needs to wipe down the guide rollers, clear away plastic debris, and verify that the pneumatic pressure gauges read normal levels.
Skipping rewinder maintenance directly causes film curling, loose rolls, and collapsed inner holes. Additionally, failing to lubricate moving parts causes the internal bearings to overheat, which can permanently damage the rewinder's main servo drive system.
Only trained operators who fully understand the digital interface and safety protocols should operate a high-speed coreless rewinder. The operator must know how to adjust tension parameters and execute the daily physical cleaning requirements.
