Exporting a 2,200 kg stretch film rewinder safely requires four steps: disassembly into the main unit and auxiliary stands, protective stretch film wrapping, mounting on a braced plywood skid, and enclosure in a fumigation-free, ISPM-15 compliant wooden case. Accessories travel separately in a smaller plywood crate, and the entire shipment is built to be forklift- and pallet-jack-ready for container loading.
As a stretch film rewinder manufacturer shipping heavy-duty equipment worldwide, Juexuan Automation follows a strict export-packing protocol for machines like the JX-500-4AR Fully Automatic Stretch Film Cored & Coreless Four-shafts Rewinding Machine. At 2,200 kg and with an overall size of 2250×2040×1700 mm, this stretch film rewinder for export demands a packing method that protects sensitive components (like the servo system and precision rollers) from moisture, dust, and impact during long-haul ocean or land freight. Below is a breakdown of exactly how this process works.
The JX-500-4AR is packed in five stages: disassembly, stretch film wrapping, skid mounting, wooden crating, and accessory separation. Each stage is designed to reduce vibration damage, prevent moisture ingress, and simplify handling at the port of arrival.
The machine is split into its main unit and auxiliary stands to reduce overall footprint and stress on structural joints during transit.

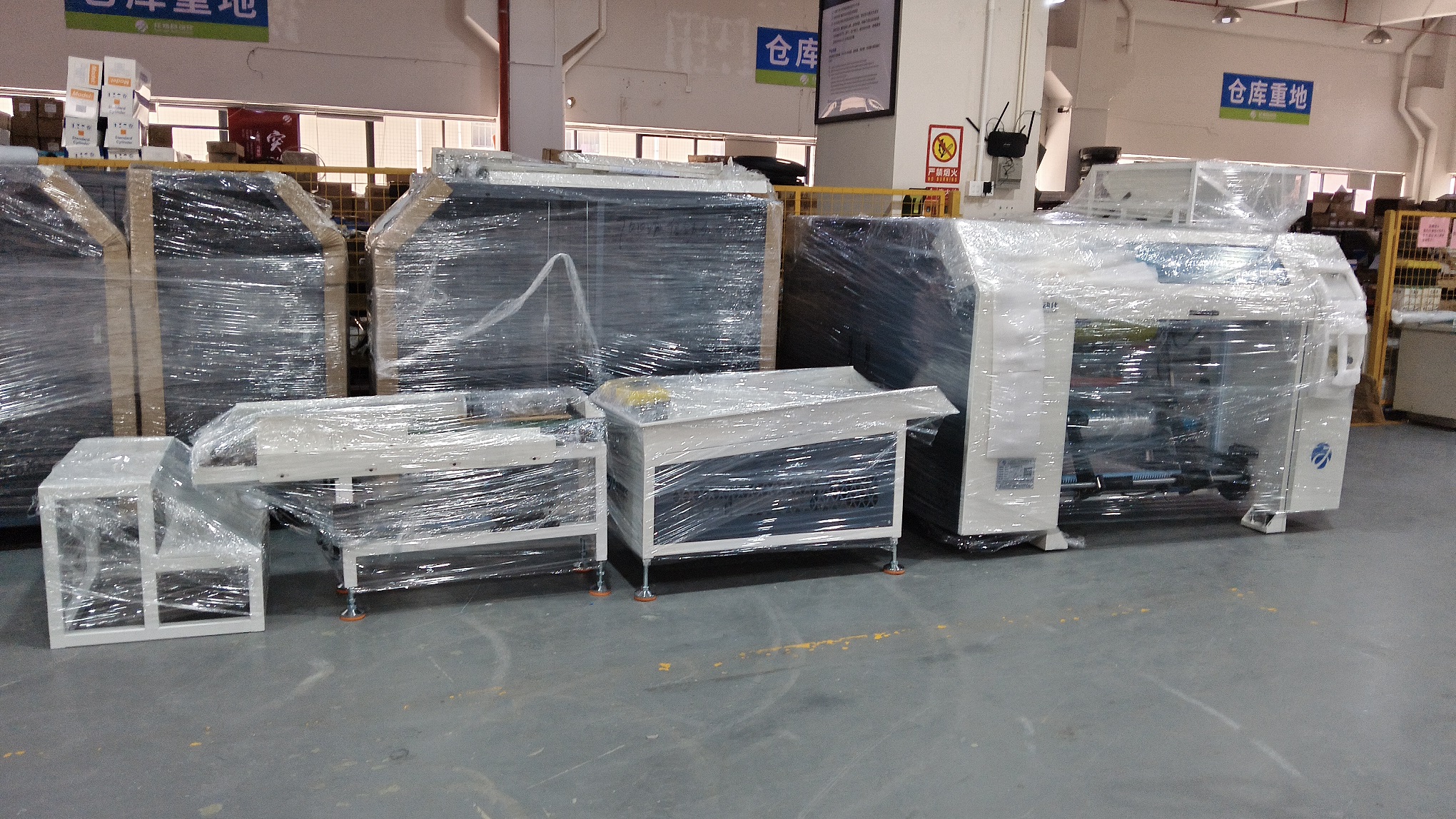

Every component is tightly wrapped in PE stretch film for dust and moisture protection.

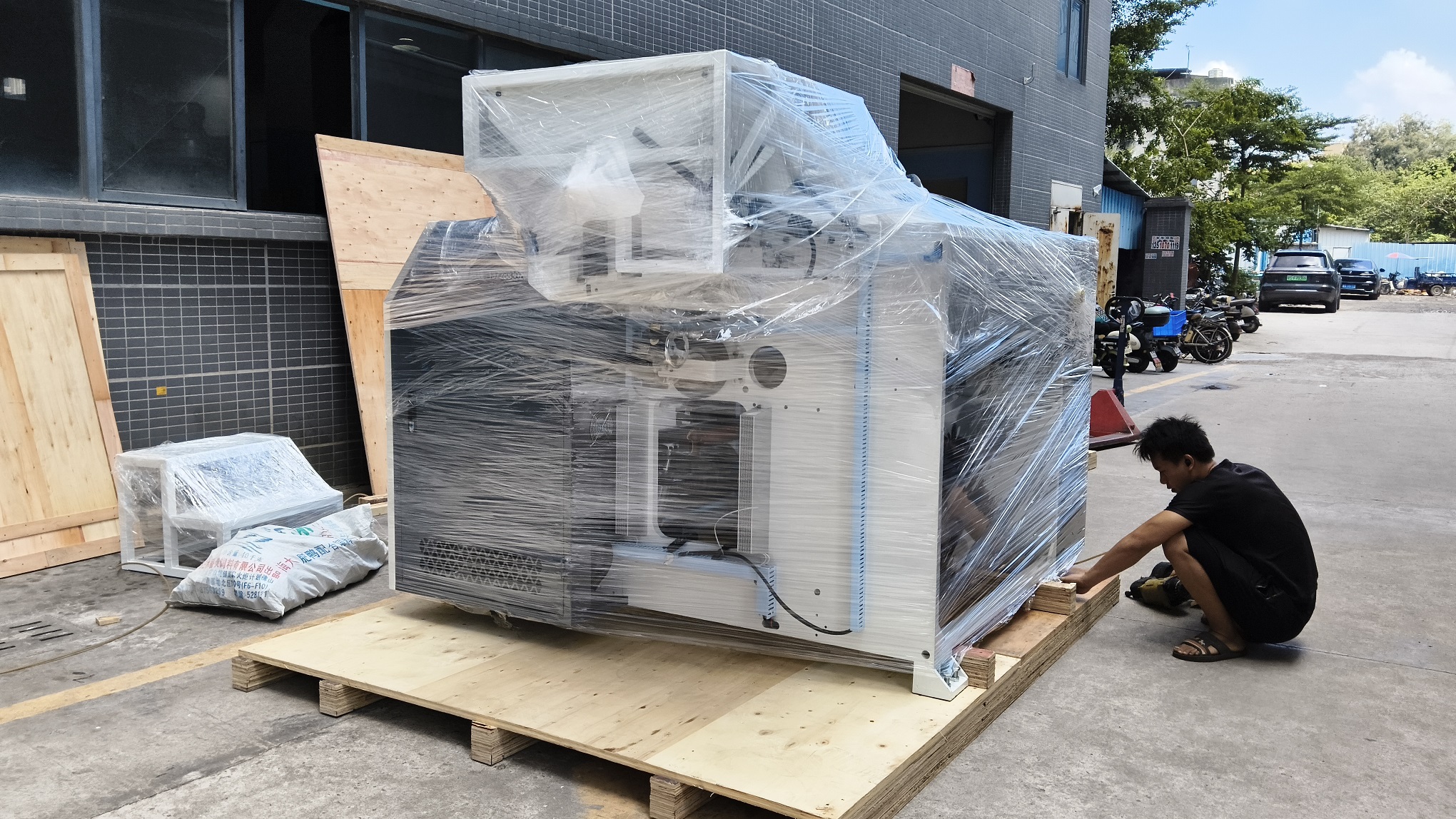

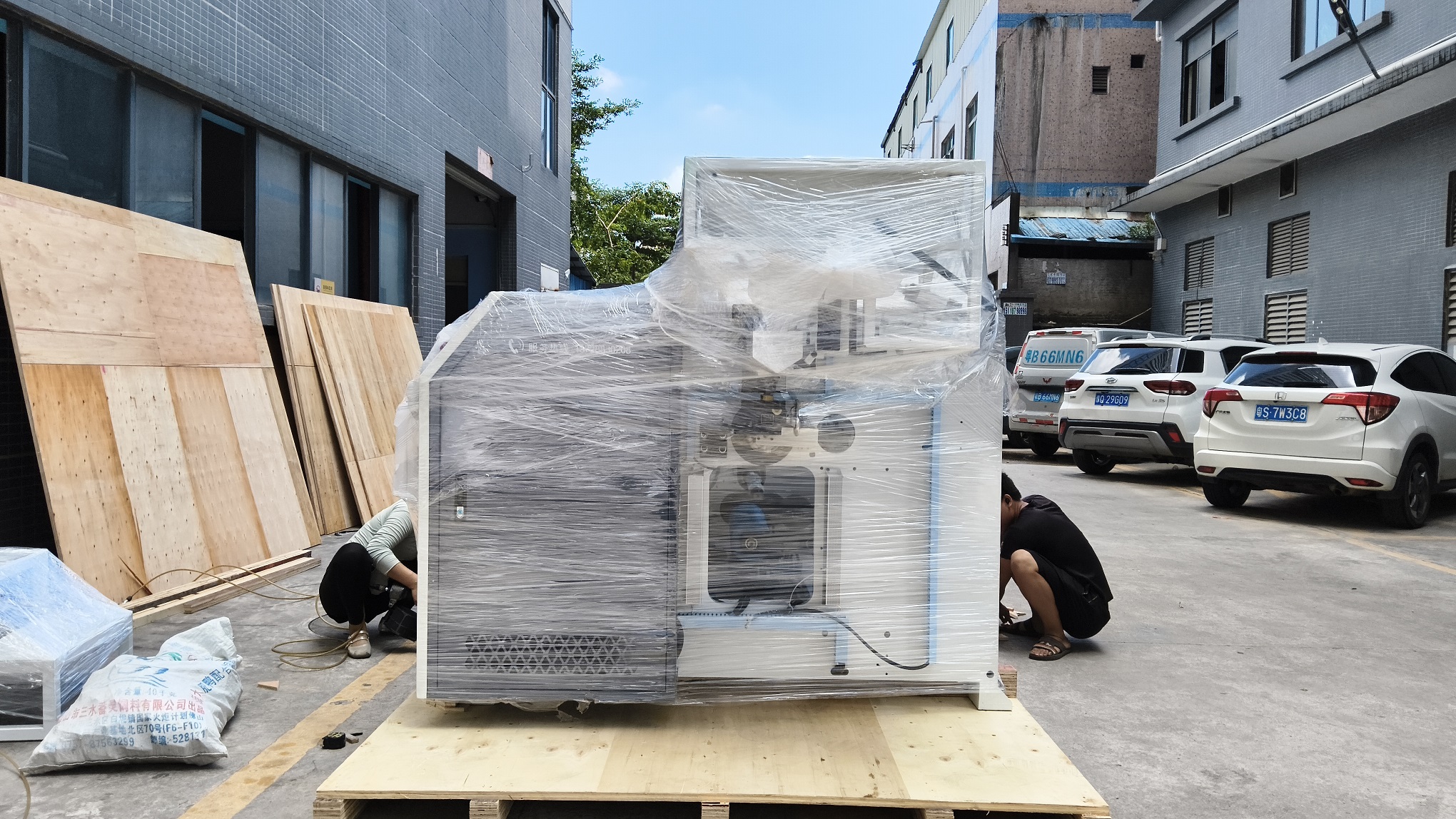

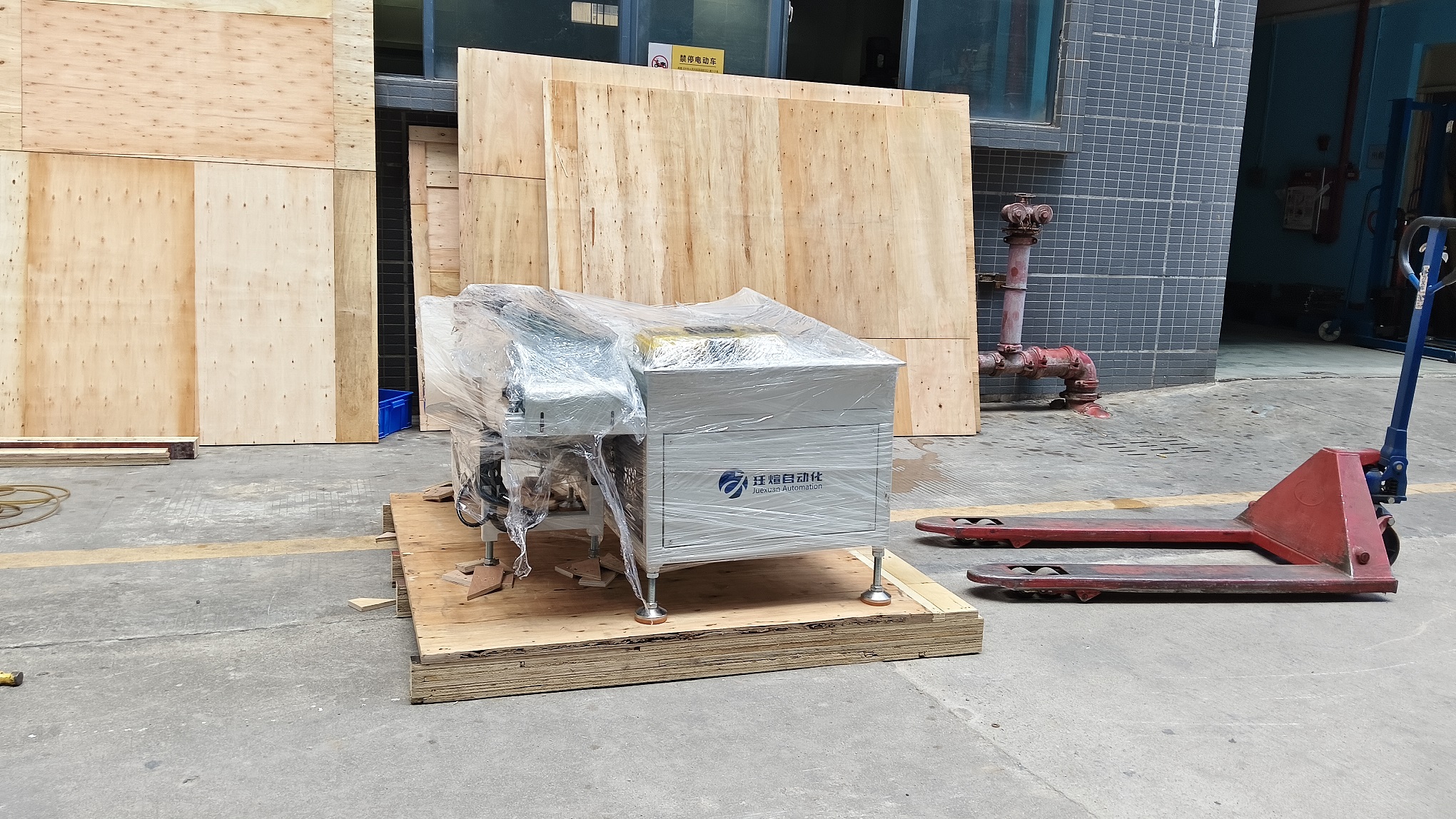

The wrapped unit is fixed onto a heavy-duty plywood skid using wooden blocking and bracing.

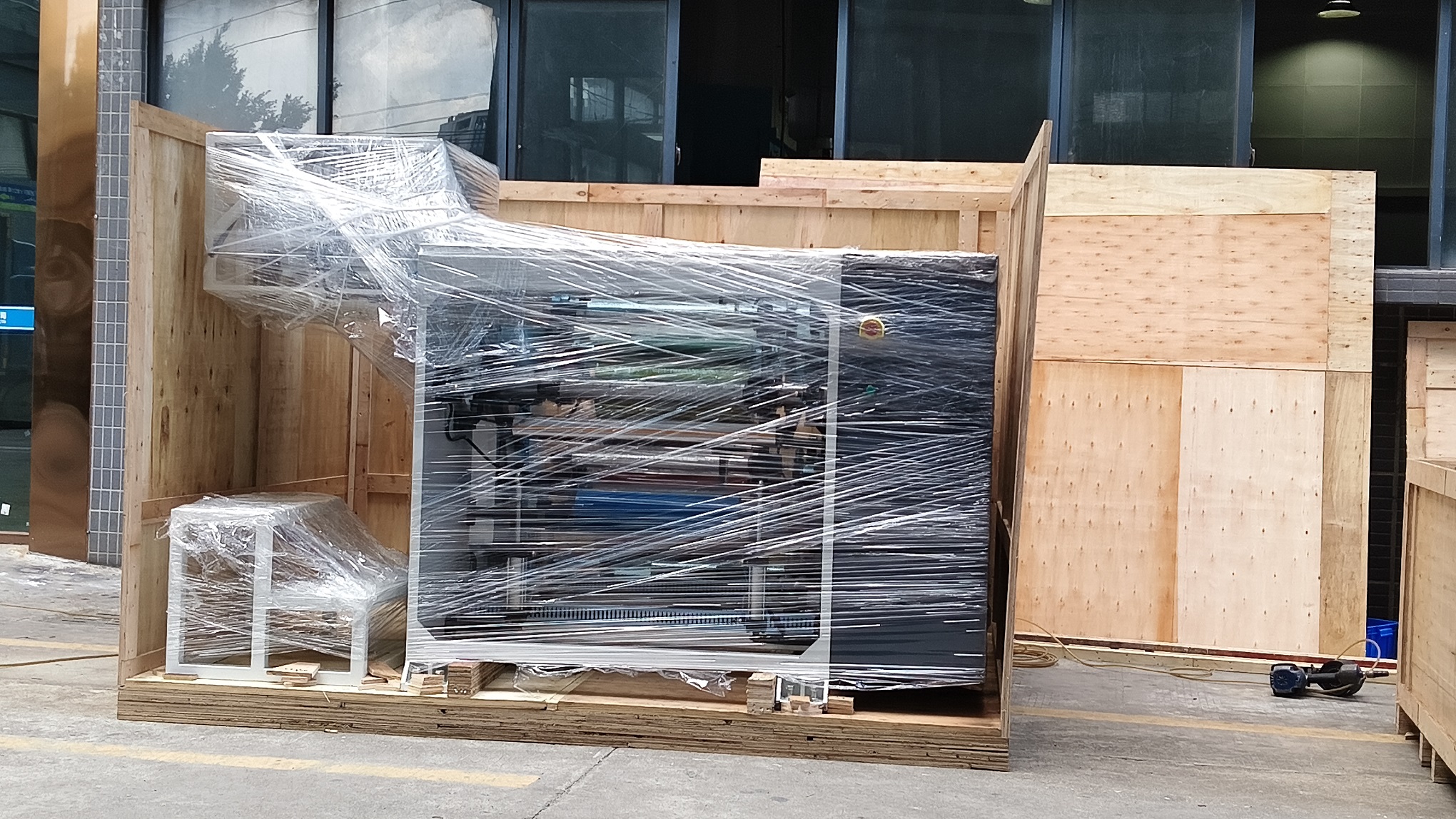

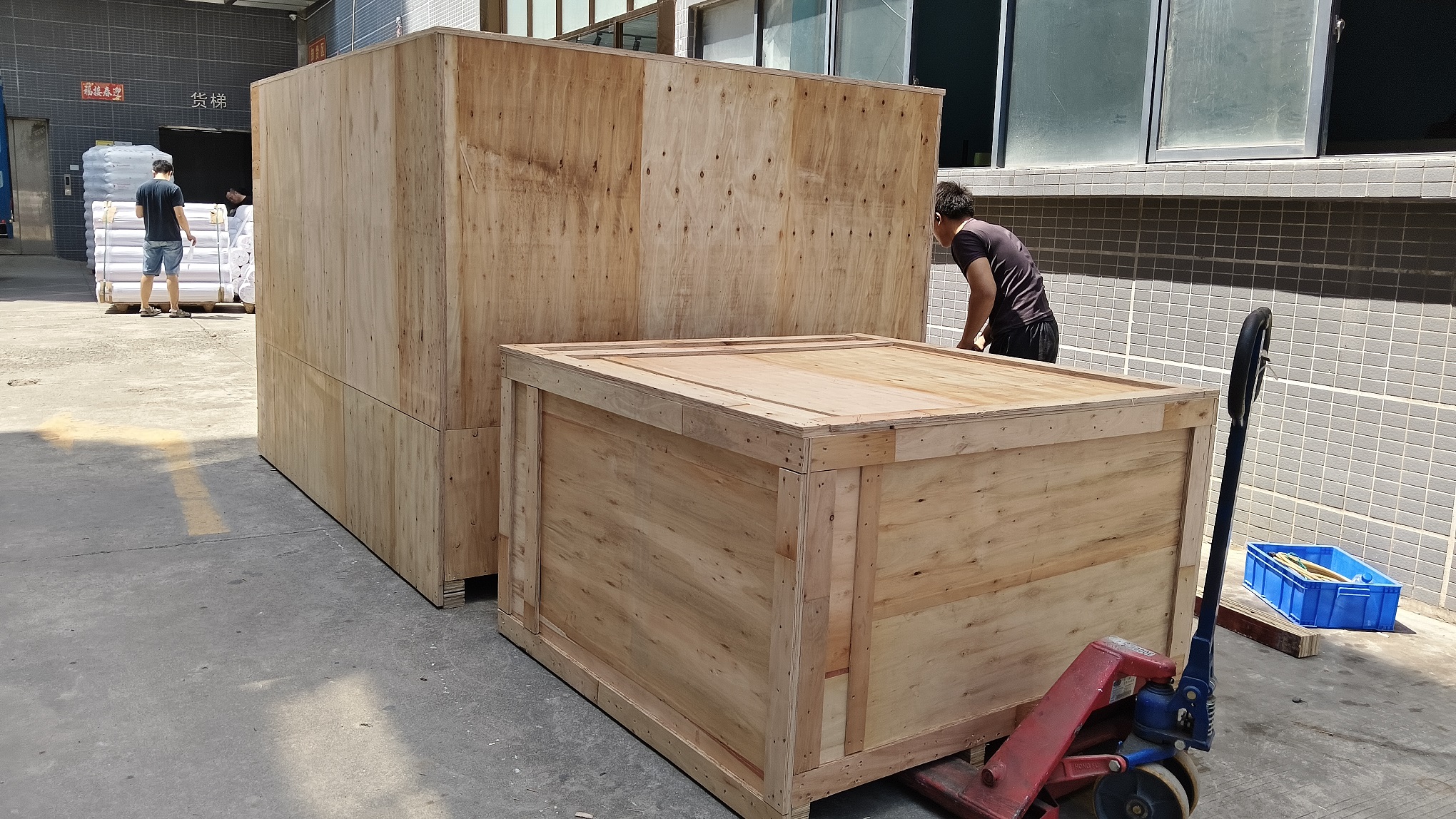

The skid-mounted machine is enclosed in a fumigation-free plywood case that meets ISPM-15 standards.
Smaller accessories are boxed separately in their own plywood crate to prevent movement against the main unit.
Disassembling the rewinder into its main unit and auxiliary stands reduces the risk of structural strain on the frame during transit and makes the shipment easier to maneuver into a container. Large, fully assembled machinery is more vulnerable to shifting and torque stress over long journeys, so separating major sections first is a standard step for heavy industrial equipment exports.
The PE stretch film wrap forms a tight barrier around each component, protecting it from dust, humidity, and surface moisture that could otherwise cause corrosion or contamination during a multi-week sea voyage. This step is especially important for the servo motors and precision rollers, which are sensitive to particulate buildup and moisture exposure.
A plywood skid is a heavy-duty base platform that the wrapped machine is bolted or braced onto, using wooden blocking to prevent shifting inside the crate. Mounting the rewinder on a skid before crating gives the shipment a stable, liftable base, which is essential for a machine weighing 2,200 kg and helps distribute weight evenly during forklift or pallet-jack handling.
ISPM-15 is an international standard requiring wood packaging materials used in export shipments to be treated (commonly through heat treatment) to prevent the spread of pests and diseases across borders. Juexuan uses fumigation-free plywood wooden cases that meet ISPM-15 requirements, so shipments clear customs without delays caused by non-compliant packaging materials—a common issue for exporters of heavy machinery like stretch film rewinders.
Accessories for the JX-500-4AR are placed in a separate, smaller plywood crate rather than bundled with the main unit. This prevents smaller parts from shifting against the machine's surfaces during transit and makes it easier for the receiving team to inventory and install components without unpacking the entire main crate first.
Yes. Once crated, the entire shipment—the main machine crate and the accessory crate—is built to be forklift- and pallet-jack-ready, meaning it can be loaded directly into a standard shipping container without additional repackaging. This design minimizes handling time at both the origin port and the destination facility.
Q: How long does it take to prepare a stretch film rewinder for export shipping?
A: Packing time varies by machine size and configuration, but heavy-duty units like the JX-500-4AR typically require several days for disassembly, wrapping, skid mounting, and crating before they're ready for container loading. Contact Juexuan directly for a shipment-specific timeline.
Q: Does ISPM-15 crating add significant cost to a stretch film rewinder export order?
A: ISPM-15 compliant crating is a standard part of Juexuan's export packing process for equipment like the JX-500-4AR, so it's factored into the overall shipping preparation rather than billed as a separate line item in most cases. Confirm exact terms with your sales contact when requesting a quote.
Q: Can the packing method be adjusted for different stretch film rewinder models?
A: Yes. While the core steps—disassembly, stretch film wrapping, plywood skid mounting, and ISPM-15 crating—apply broadly across Juexuan's stretch film rewinding machine series, exact skid dimensions and crate specifications are tailored to each machine's weight and footprint.
For more on the machine featured in this packing process, visit the JX-500-4AR product page or explore Juexuan's full range at jxfilmmachine.com.
