If you've ever shopped for stretch film converting equipment, you've probably noticed two terms used almost interchangeably: slitting and rewinding. They sound similar, and many machines combine both functions—so it's easy to assume they do the same job. They don't.
Understanding the difference matters. Buy a machine built only for slitting when you actually need rewinding, and you'll end up with the wrong roll format for your customers. Misjudge what your production line requires, and you'll either overspend on capability you don't use or hit a bottleneck within months.
This guide is the second in our series on stretch film converting equipment, following our piece on how to choose a stretch film rewinding machine. Here, we'll clear up the confusion for good. By the end, you'll understand:
What a slitting machine actually does
What a rewinding machine actually does
The key differences between the two functions
When you need one, the other, or both
How to choose based on your real production goals
Let's break it down.
A stretch film slitting machine takes a wide film web and cuts it lengthwise into narrower strips. Think of a wide jumbo roll coming off an extrusion line at 1,000mm, 1,500mm, or 2,000mm. A slitting machine splits that wide web into the finished widths your customers order—say, several 500mm rolls or a mix of widths in a single pass.

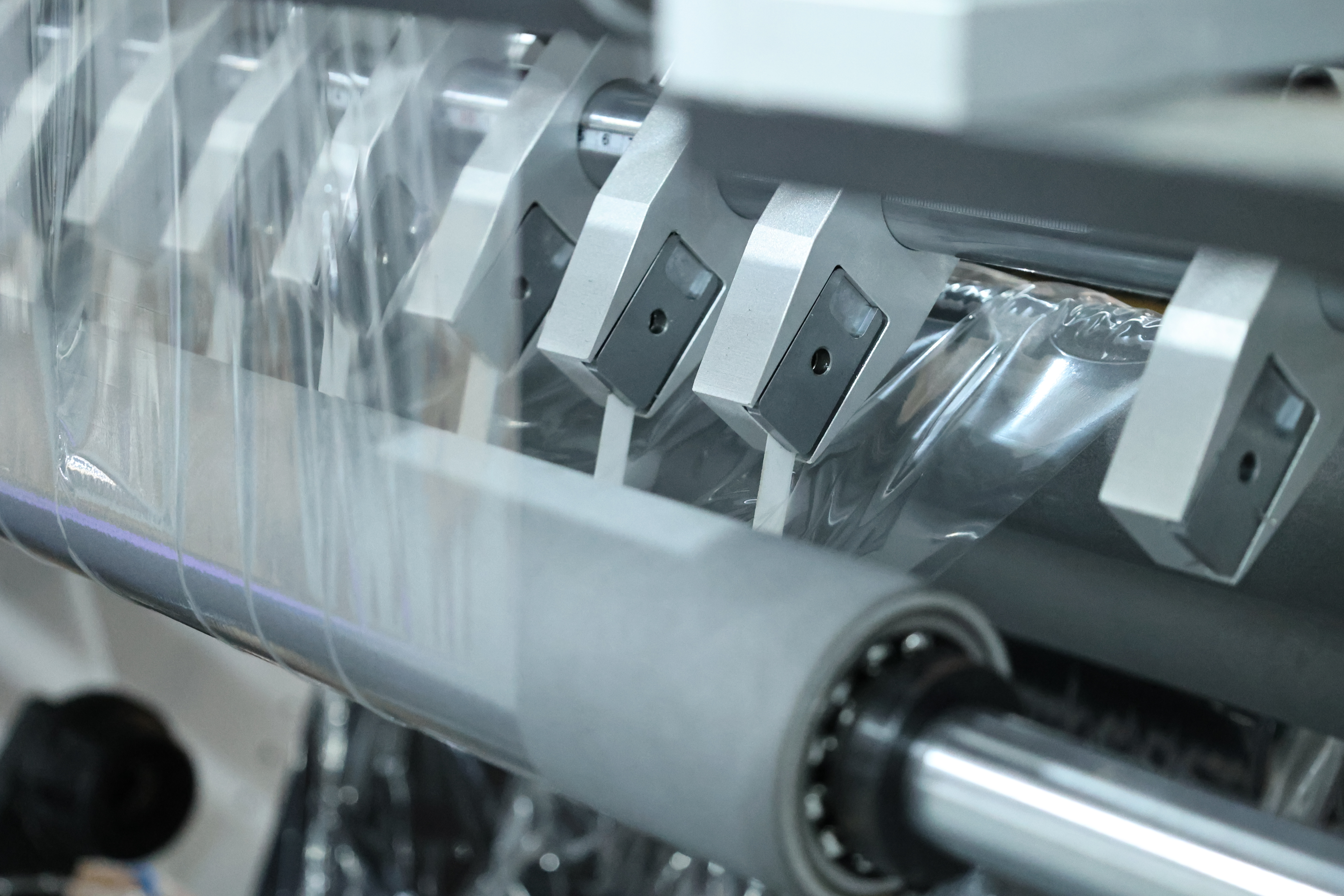

The core job here is cutting. The machine unwinds the parent roll, runs the film past a set of blades or knives, and separates one wide web into multiple narrow ones. Width accuracy is everything: clean, straight cuts with no ragged edges, dust, or width drift.
An automatic stretch film slitter handles this at commercial speed while managing the film web tension so the strips stay even and the edges stay clean. The output is film cut to the right width—but the format of the roll (length, weight, core or coreless) depends on how that film is wound afterward.
In short: slitting changes the width of the film.

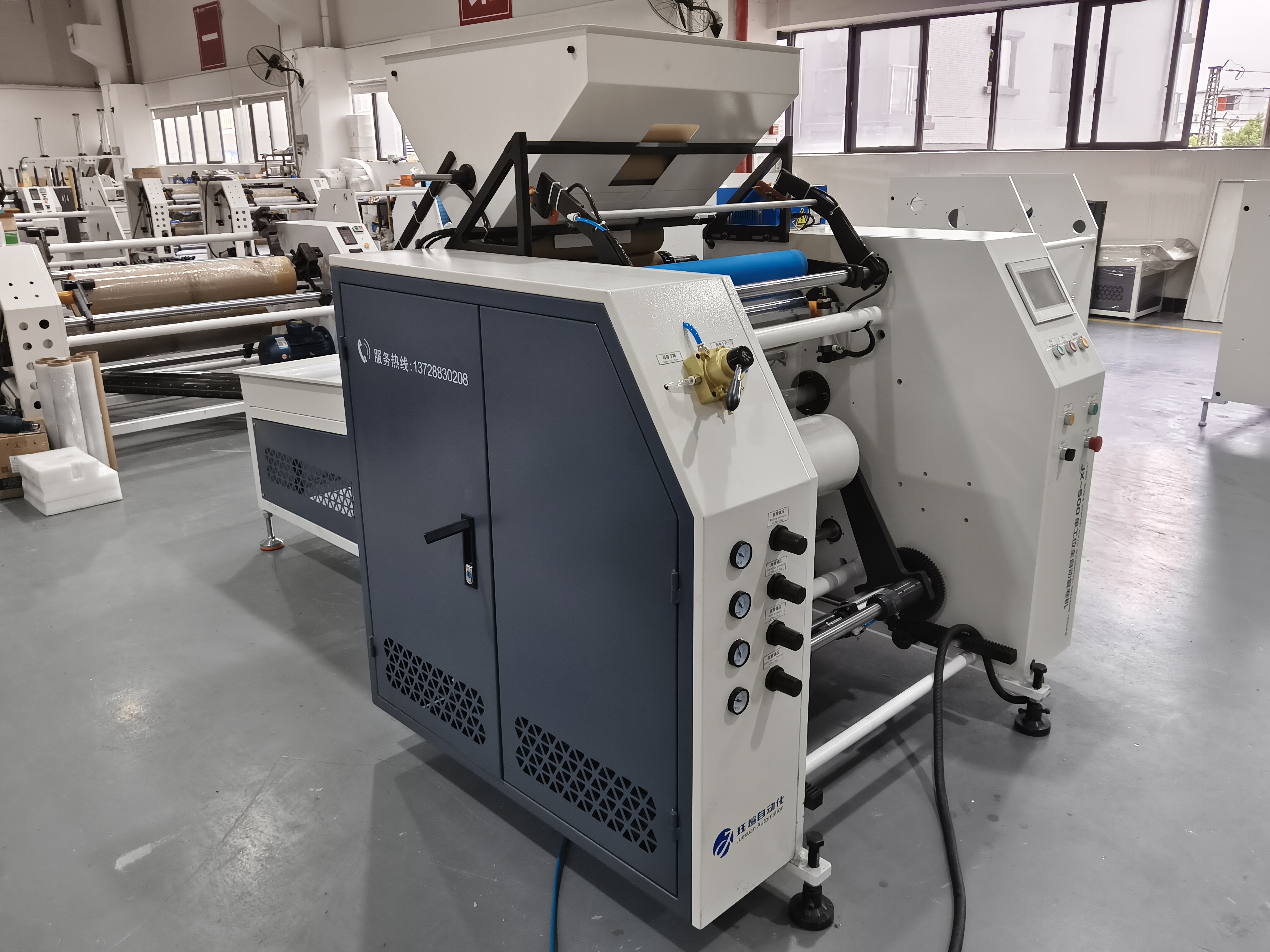

A stretch film rewinding machine transfers film from a large parent roll onto smaller finished rolls. This is the heart of jumbo roll to hand roll conversion—turning bulky factory output into the compact, market-ready rolls that end users buy.
The core job here is roll formation. The machine unwinds the jumbo, controls tension precisely through the process, and rewinds the film onto smaller cores—or, on coreless models, into self-supporting rolls. The goal is a tight, even, defect-free roll with the right length, weight, and diameter.
A fully automatic rewinder automates the labor-heavy steps: loading cores or tubes, cutting the film, changing shafts, and unloading finished rolls. Tension control is critical, because poor winding leads to loose rolls, telescoping, and inner-layer collapse—especially on coreless products.
In short: rewinding changes the format and size of the roll.
Now that you know what each function does, here's how they compare side by side. This is the core of the slitting machine vs rewinder question.
Factor | Slitting Machine | Rewinding Machine |
|---|---|---|
Primary job | Cuts wide film into narrow widths | Converts jumbo rolls into smaller finished rolls |
What it changes | Film width | Roll size, length, and format |
Main mechanism | Blades/knives for precise cutting | Tension control and winding shafts |
Typical output | Multiple narrow webs from one wide web | Hand rolls, machine rolls, mini rolls, coreless rolls |
Quality focus | Edge cleanliness, width accuracy | Roll tightness, even winding, no telescoping |
Best for | Producers needing multiple finished widths | Producers converting jumbos into sellable rolls |
The simplest way to remember it: slitting is about cutting across the width, while rewinding is about forming the roll. One controls how wide the film is. The other controls how the finished roll looks, weighs, and performs.
Here's where it gets practical, though. Most real-world production needs both. You rarely want a wide jumbo cut into narrow strips and left there—you want those strips wound into neat, sellable rolls at the same time. That's why so many machines combine the two functions.

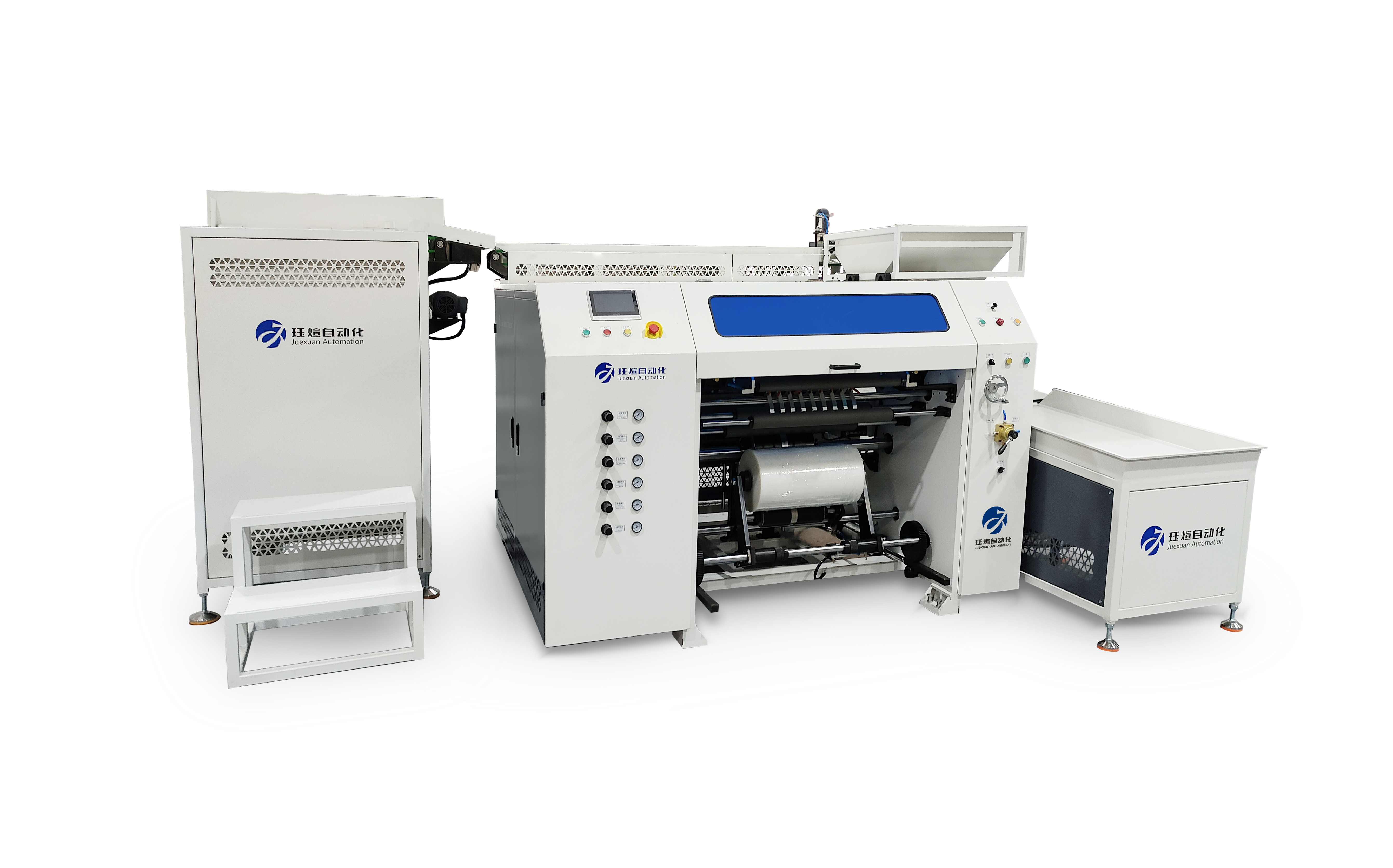

A combined slitting and rewinding machine does both jobs in a single pass. It unwinds the wide jumbo, slits the web into your target widths, and rewinds each strip onto its own core or coreless roll—all in one continuous operation.
This is the most common setup for stretch film converters, and for good reason. A single 2,000mm jumbo can be slit into multiple narrower webs and wound into finished hand rolls simultaneously. You get width accuracy and roll quality in one process, without moving material between two separate machines.
A high-end stretch film converting machine of this type typically offers:
Automatic web cutting and tube loading
Servo-driven tension control across every winding station
Cored and coreless winding modes
Real process speeds of 600–800 meters per minute
Multi-shaft designs for near-continuous output
When you see a machine described as a "rewinder and slitter," this is what it means: one piece of equipment that slits the film to width and rewinds it to finished format in a single, efficient cycle.
This is the question that actually drives your buying decision. Let's make it simple.
You receive or produce wide jumbo rolls and need to break them into multiple narrower widths.
Width variety is a big part of your product mix.
Your priority is precise, clean cutting accuracy.
In practice, pure standalone slitting is less common in stretch film, because most buyers also want finished rolls—not just narrower webs.
Your jumbos are already the right width, and you simply need to convert them into smaller finished rolls.
You produce a consistent roll format (for example, standard 500mm hand rolls).
Your priority is roll quality, tightness, and consistent length or weight.
You convert wide jumbos into multiple finished roll widths.
You want one efficient process instead of two separate steps.
You serve customers who order different widths and roll formats.
For the majority of stretch film converters, a combined machine is the practical answer. It covers the widest range of products and removes the inefficiency of handling material twice.
Once you know whether you need slitting, rewinding, or both, focus on the specifications that determine real-world performance. These apply whether you're buying a standalone machine or a combined unit.
For any machine with slitting capability, the cutting system drives edge quality. Ask how the blades are configured, how easy they are to adjust for different widths, and how clean the cut stays over long runs. Ragged edges and film dust are signs of a weak cutting setup that will frustrate your customers.
Shaft configuration affects how quickly the machine cycles between rolls. A 2-shaft design is simpler and suits moderate output. A 4-shaft design allows near-continuous operation—while finished rolls unload from one set of shafts, the next batch winds on another. For high-volume lines, more shafts mean more throughput.
Headline speed and usable output aren't the same. A machine rated at 800 m/min only delivers that if it sustains the speed through automatic cycles without manual stops. Always ask for real process speed and daily output, ideally backed by existing customer cases rather than peak numbers alone.
Confirm the machine handles your full material range and width. A flexible converting machine should process common films such as LLDPE, PE, CPP, CPE, and POF across the film width range you run—for example, 500mm to 2,500mm. Buying a machine that only handles part of your product mix forces costly workarounds later.
Automated web cutting, tube loading, shaft changing, and roll unloading directly reduce labor and increase uptime. Map each automated function against the manual labor it replaces—that's where your payback comes from. A semi-automatic machine costs less upfront; a fully automatic one pays off fastest at higher volumes or where labor is expensive.
On the rewinding side, tension control is the single biggest factor in roll quality. Servo-driven, closed-loop systems keep film consistent from the first wrap to the last, preventing loose winding, telescoping, and inner-layer collapse. If a supplier can't explain their tension approach clearly, treat that as a warning sign.
Specs only matter once you've anchored them to your actual production needs. Work through these questions before you compare machines:
What roll formats do you sell? Hand rolls, machine rolls, mini rolls, coreless rolls—or a mix?
Do you need multiple widths? If yes, slitting capability is essential. If you run one standard width, rewinding alone may be enough.
What's your daily output target? This drives shaft count, speed, and automation level.
What films and widths do you run? Confirm full compatibility with your materials.
How much labor can you dedicate? The scarcer or more expensive your labor, the stronger the case for full automation.
Where is your business heading? Buy for the volume and product range you expect in two years, not just today.
Write these answers down. They become your specification sheet—and your defense against being sold features you'll never use, or a machine that maxes out within a year.
Even experienced buyers fall into predictable traps when sorting out slitting and rewinding. Watch for these:
Confusing the two functions. Assuming a slitter automatically produces finished rolls, or that a rewinder can cut multiple widths. Confirm exactly what the machine does.
Buying slitting-only when you need finished rolls. If your customers want neat hand rolls, you need rewinding capability—not just narrower webs.
Ignoring tension control. A machine can slit perfectly and still produce loose, telescoping rolls if the winding tension is weak.
Chasing peak speed. Real, sustained output matters far more than a marketing figure.
Overlooking film compatibility. Verify the machine runs your actual materials and widths before committing.
Under-buying for growth. A machine that can't scale with your product range becomes a bottleneck fast.
Skipping sample verification. Always see the machine run your film—check both cut quality and roll formation.
What is the difference between a stretch film slitting machine and a rewinding machine?
A stretch film slitting machine cuts a wide film web into narrower widths, while a rewinding machine converts large jumbo rolls into smaller finished rolls by controlling tension and roll formation. Slitting changes the film's width; rewinding changes the roll's size and format. Many machines combine both functions in a single pass.
Can one machine do both slitting and rewinding?
Yes. A combined slitting and rewinding machine unwinds a wide jumbo, slits the web into your target widths, and rewinds each strip onto its own core or coreless roll in one continuous operation. This is the most common and efficient setup for stretch film converters who need multiple widths and finished rolls.
Do I need a slitting machine if I only produce one roll width?
Not necessarily. If your jumbo rolls are already the correct width and you only need to convert them into smaller finished rolls, a stretch film rewinding machine may be all you require. Slitting becomes essential when you need to produce multiple finished widths from a wider parent roll.
What films can a stretch film converting machine handle?
Flexible converting machines typically process common films such as LLDPE, PE, CPP, CPE, and POF across a range of widths—often from 500mm up to 2,500mm. Always confirm the machine matches your specific materials and width range before purchase.
How do shaft count and automation affect output?
More shafts allow near-continuous operation, since finished rolls can unload while the next batch winds, boosting throughput on high-volume lines. Higher automation—automatic cutting, tube loading, shaft changing, and unloading—reduces labor and increases uptime, paying off fastest at higher volumes.
Why is tension control important in rewinding?
Tension control determines roll quality. Servo-driven, closed-loop systems keep film consistent from start to finish, preventing loose winding, telescoping, and inner-layer collapse—especially on coreless rolls. Even a machine that slits accurately will produce poor rolls without strong tension control.
The difference between a stretch film slitting machine and a rewinding machine comes down to one idea: slitting controls film width, while rewinding controls roll format. Slitting cuts the wide web into narrow strips; rewinding turns jumbos into tight, sellable finished rolls. Most converters need both—which is exactly why combined slitting and rewinding machines are the practical choice for the majority of production lines.
Get the distinction right and you'll specify equipment that matches your real product mix, hits your output targets, and grows with your business. Get it wrong, and you'll feel it in wasted material, rejected rolls, or a machine that can't keep up.
Not sure whether you need slitting, rewinding, or a combined machine? Share your roll formats, film types, and width requirements with an equipment specialist for a tailored recommendation—and ask to see the machine run your film before you decide.
