A stretch film rewinder converts large-diameter jumbo rolls of stretch film into smaller, user-ready hand rolls by slitting and rewinding the film onto individual cores at controlled tension. This process — known as stretch film converting — is the foundation of hand roll stretch film production and is carried out using either semi-automatic or fully automatic rewinding machines.
Whether you're setting up a new film converting line or optimizing an existing one, this guide walks through every stage of the jumbo roll to hand roll rewinding process.

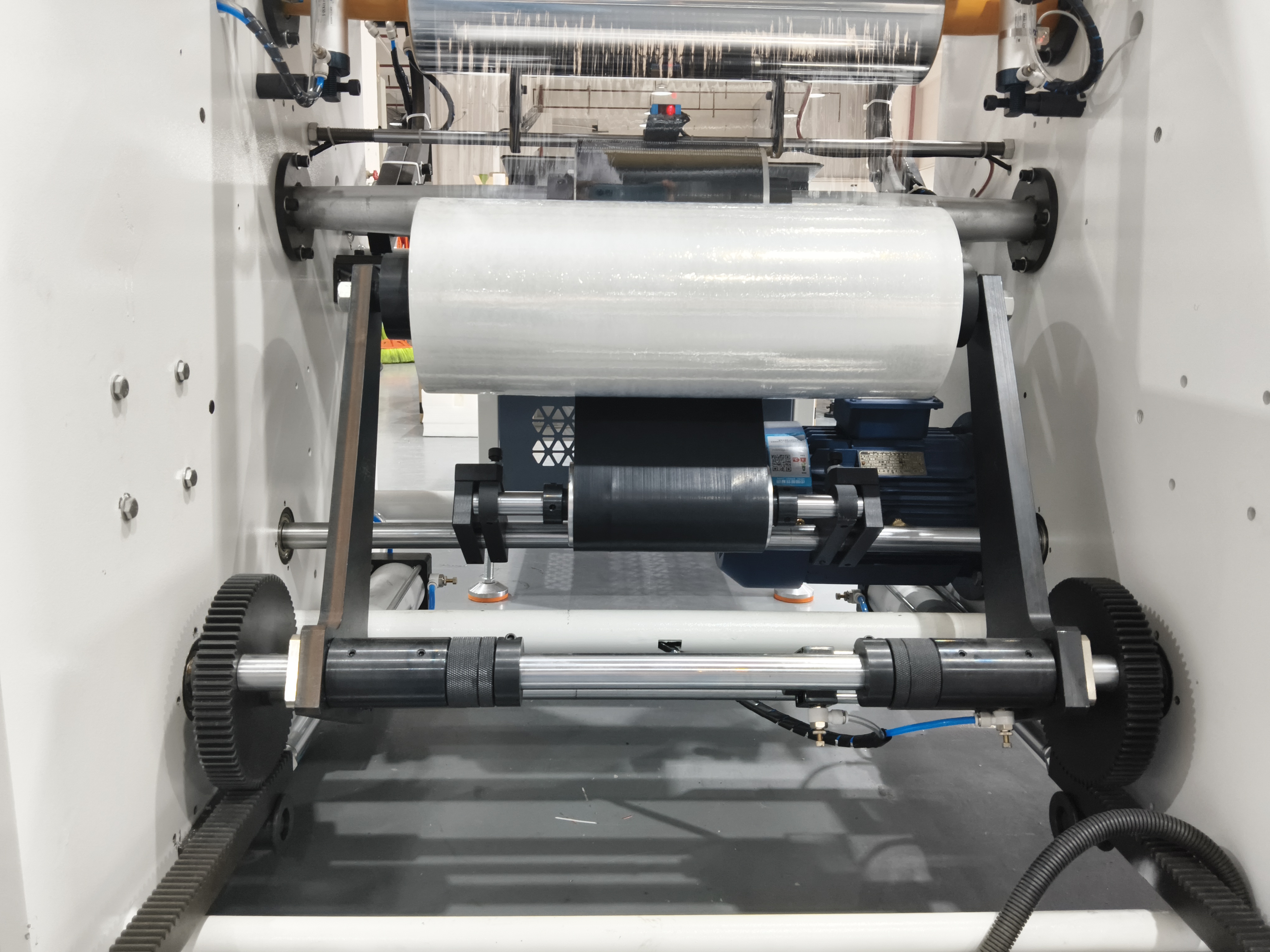

A stretch film rewinder (also called a stretch film rewinding machine or automatic rewinder machine) is industrial equipment that unwinds a wide-format jumbo roll, slits it into the desired widths, and rewinds each slit strip into a finished hand roll. The machine controls film tension throughout to ensure consistent roll hardness, accurate geometry, and clean edges.
Juexuan Automation's rewinding machines, for example, handle stretch film materials including LLDPE, CPP, CPE, PE, and POF, with processing widths ranging from 500 mm to 2,500 mm — making them suitable for a wide range of hand roll specifications.
Jumbo rolls are produced during the film extrusion process and are not practical for end users. Converting them into hand rolls allows manufacturers to:
Package and sell film in standard, consumer-ready sizes
Meet retail and logistics requirements for roll weight and width
Improve film usability in manual wrapping applications
Maximize material yield and minimize waste through precision slitting
Choosing the right stretch film converting machine depends on your production volume, roll specifications, and level of automation required.
A fully automatic rewinder machine handles the complete converting cycle — loading paper tubes, cutting and transferring film, and unloading finished rolls — with minimal operator input. These machines are best suited for high-volume production environments where throughput and consistency are critical.
Juexuan's JX-500-4AS model, for instance, features four-shaft automatic rewinding and slitting, with real process speeds of up to 600 meters per minute and automatic tube loading and film cutting.
This variant of the automatic rewinder machine produces hand rolls without a paper core — a growing preference in markets focused on material reduction and sustainability. Juexuan's JX-500-2CAR model achieves speeds of up to 600 meters per minute with a daily output of up to 2,500 kilograms, making it one of the higher-output coreless rewinding options available.
Semi-automatic machines are better suited for smaller operations or producers with variable roll specifications. Operators handle some steps manually, which reduces upfront cost while still delivering reliable hand roll output. Juexuan's JX-1000-NP model is a semi-automatic option designed for high-speed operation with greater operator flexibility.
Mount the jumbo roll onto the unwind mandrel or unwind stand. Ensure the roll is centered and aligned with the machine's film path. On fully automatic stretch film rewinding machines, this step may be assisted or fully automated via motorized unwind arms.
Feed the leading edge of the film through the tension roller system and guide rollers. Proper threading is critical: uneven film paths lead to wrinkling, telescoping, or edge misalignment in the finished hand rolls. Set the tension according to the film gauge and desired roll hardness.
Position the slitting blades according to the target hand roll width. Most stretch film converting machines use either razor blade, shear-cut, or score-cut slitting systems. Blade gap and pressure must be calibrated for the film thickness to produce clean slit edges without tearing.
If producing cored hand rolls, load paper tubes (typically 50 mm or 76 mm inner diameter) onto the rewind shafts. For coreless hand roll rewinding, configure the machine's coreless winding attachment as specified by the machine manufacturer.
Input the target roll diameter, film length, or weight via the machine's control interface. On modern automatic rewinder machines, these parameters are entered through a PLC-based touchscreen panel. Key parameters include:
Rewind tension: Controls roll hardness and prevents film deformation
Lay-on roller pressure: Ensures uniform winding density
Winding speed: Balances output rate with film stability
Initiate the rewinding cycle. The stretch film rewinding machine will unwind the jumbo roll, slit it into individual strips, and simultaneously rewind each strip into a finished hand roll. Fully automatic machines manage shaft changeovers and film cuts without stopping production.
Once the target roll length or diameter is reached, the machine cuts the film and the finished rolls are ejected or removed. Inspect each roll for:
Consistent edge alignment
Uniform roll hardness
Correct width and diameter
No visible wrinkling or telescoping
Finished hand rolls are typically wrapped in protective film or placed in cartons for shipment. Ensure rolls are stored upright or on their side to prevent deformation.
Several variables directly influence the quality of finished hand rolls produced by a stretch film rewinder:
Tension control: The most critical variable. Excessive tension causes film deformation or tearing; insufficient tension produces loose, unstable rolls.
Slitting blade condition: Dull or misaligned blades produce ragged edges and film dust.
Rewind shaft alignment: Shaft misalignment leads to uneven roll geometry and edge step.
Film material properties: Different materials — LLDPE, CPP, PE — require different tension and speed settings.
Core quality: Damaged or out-of-round paper cores cause winding defects from the first layer.
Feature | Fully Automatic Rewinder | Semi-Automatic Rewinder |
|---|---|---|
Operator involvement | Minimal | Moderate |
Production speed | Up to 800 m/min | Lower, variable |
Upfront cost | Higher | Lower |
Roll consistency | Very high | Good |
Best for | High-volume production | Smaller runs, variable specs |
A fully automatic stretch film rewinding machine is better suited for producers targeting high daily output and consistent quality at scale. A semi-automatic stretch film converting machine works best for operations with lower volumes, more frequent specification changes, or tighter capital budgets.
Q: What film materials can a stretch film rewinder process?
A stretch film rewinding machine can typically process LLDPE, CPP, CPE, PE, and POF films. The specific materials supported depend on the machine model — confirm compatibility with the manufacturer before purchasing.
Q: What core sizes are used for hand roll stretch film rewinding?
Standard hand roll cores are 50 mm or 76 mm inner diameter. Some automatic rewinder machines support both sizes and can switch between them with minimal changeover time.
Q: How do I reduce film breaks during the jumbo roll to hand roll rewinding process?
Film breaks are most often caused by excessive winding tension, worn slitting blades, or film defects in the source jumbo roll. Reducing tension incrementally, replacing blades regularly, and inspecting incoming jumbo rolls before production are the most effective preventive steps.
Q: Can a stretch film rewinding machine produce coreless hand rolls?
Yes. Fully automatic stretch film coreless rewinding machines are specifically designed to produce hand rolls without paper tubes. These machines configure the winding assembly to form a solid core from the film itself during the rewinding process.
Q: What is the typical daily output of an automatic stretch film rewinder?
Output varies by model and film specifications. High-performance automatic rewinder machines, such as Juexuan's coreless series, can produce up to 2,500 kilograms of finished hand rolls per day at speeds of up to 600 meters per minute.
Guangdong Juexuan Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in stretch film rewinding and slitting intelligent equipment. With CE and TUV certifications, Juexuan's machines are exported to more than 80 countries and regions, and the company has accumulated more than 5,000 cooperative customer cases worldwide.
Juexuan's product range includes fully automatic stretch film slitting machines, fully automatic cored and coreless rewinding machines, and semi-automatic rewinding and slitting machines — covering the full spectrum of stretch film converting applications.
Explore the full product range or contact Juexuan's team for a tailored equipment recommendation.
